Technical Data Sheet SDS Product Literature

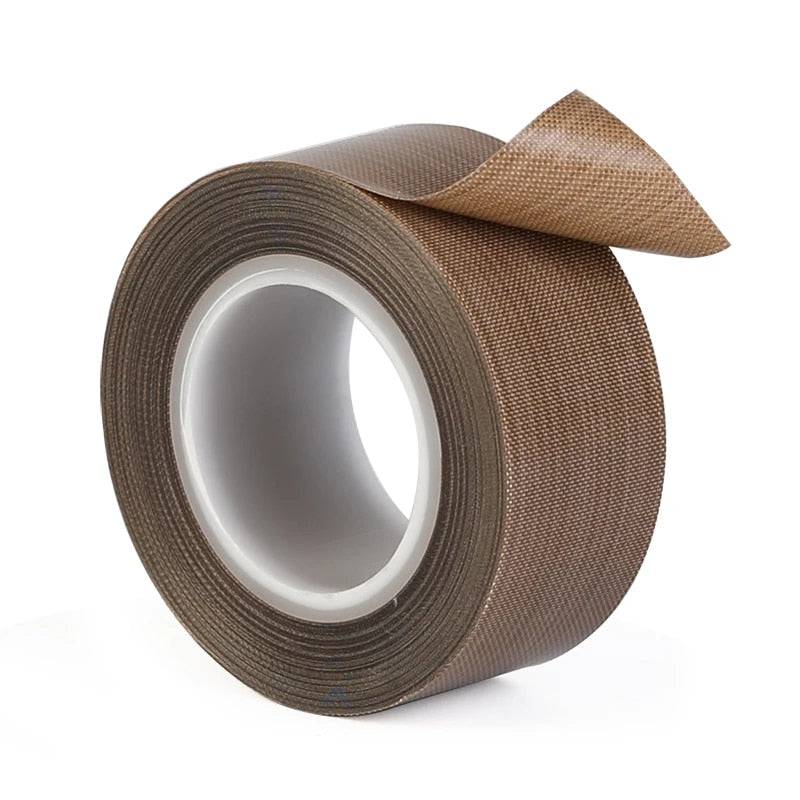

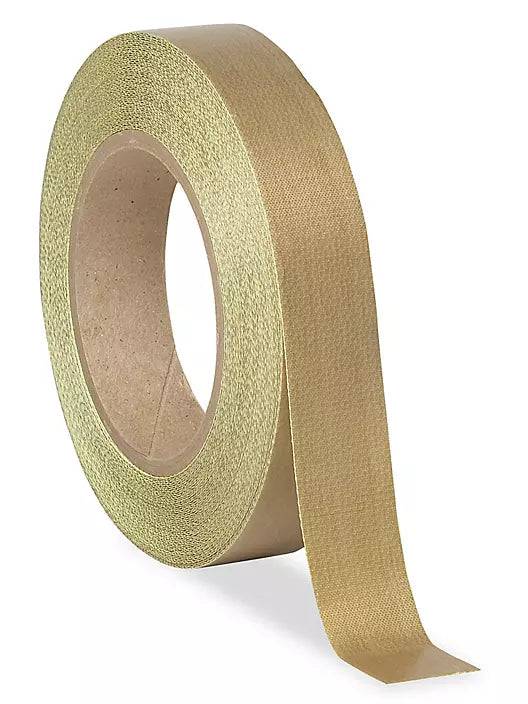

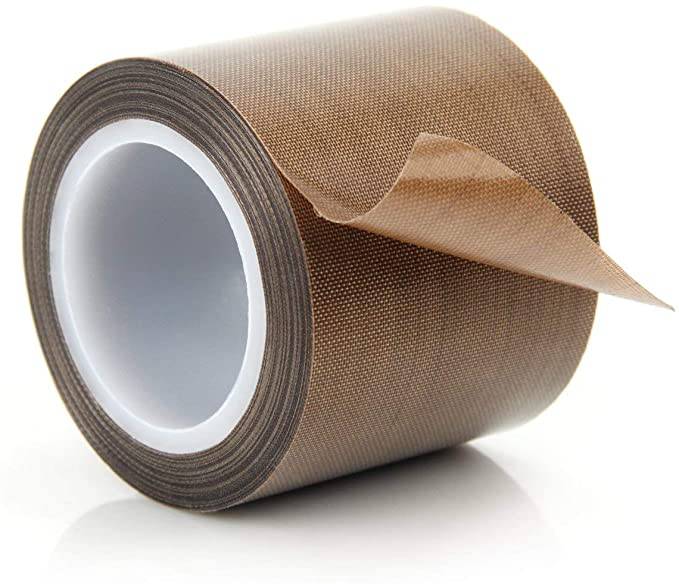

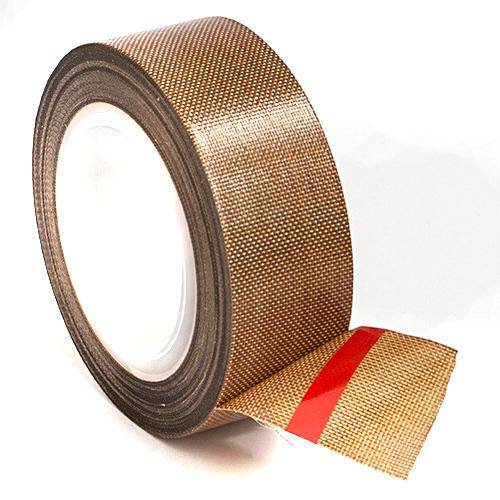

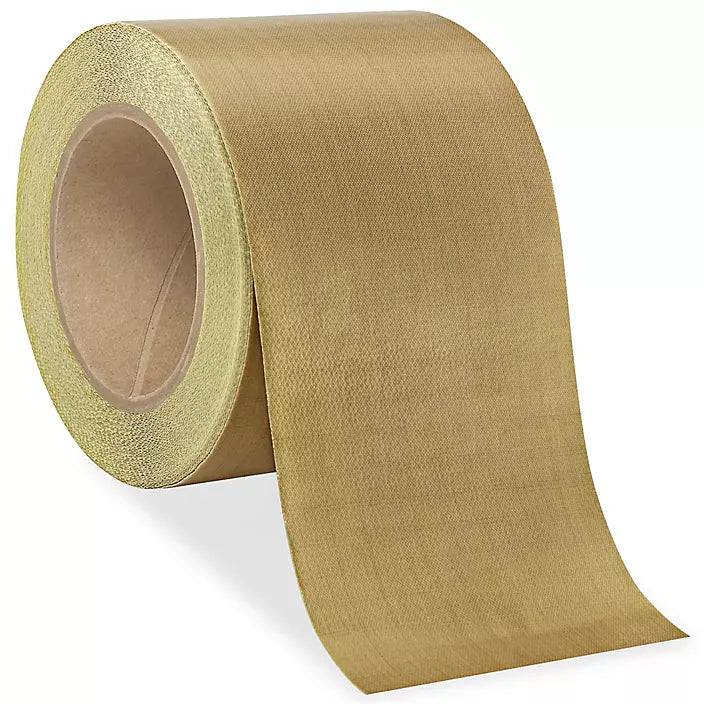

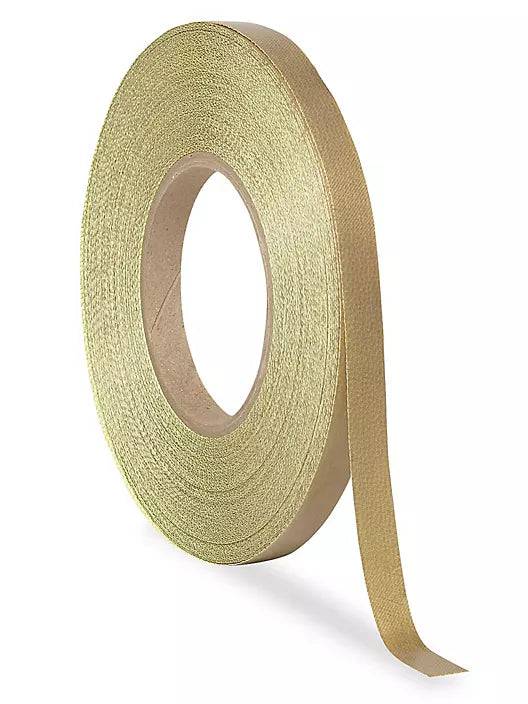

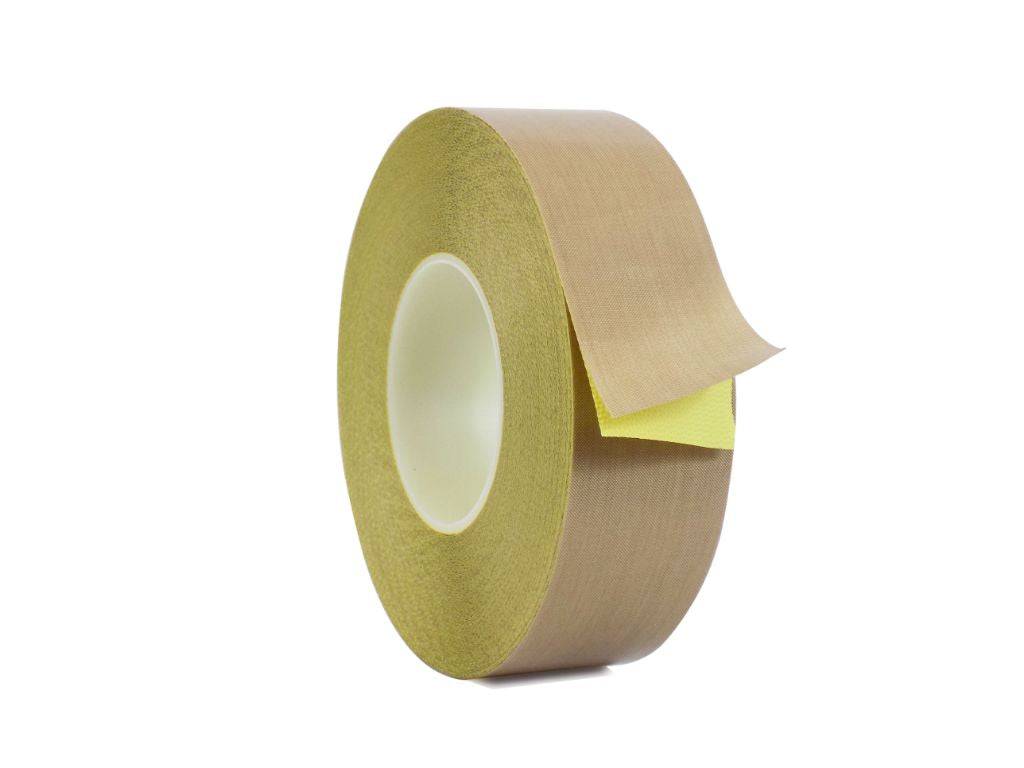

PTFE Teflon Film | 36 Yards (without/Adhesive)

SKU WOD TFE28NA-00500-72-36-BRO
$61964
$8.60/per roll
Sold by the case
Thickness: 3.0 Mil
Size: 1/2 Inch
Shipping calculated at checkout.
Online price reflects item cost only. Shipping or delivery charges may apply at checkout. Availability and pricing are subject to change.
Distributor Advantages
Order Free Sample
30 Days Return Policy
Call Us for Custom Sizes: +1 786 565 9858
In-store pickup available. Orders are typically ready in 4 hrs

🔹Product Description

PTFE Teflon Film | 36 Yards without/Adhesive (TFENA)

Non-Adhesive PTFE (Teflon) Film is designed for custom gaskets, seals, electrical insulation, release surfaces, and wear-resistant applications where an adhesive backing is not required. Made from high-quality virgin PTFE film, it provides exceptional chemical resistance, an ultra-low friction surface, and outstanding performance in high-temperature environments.

Available in 3.0, 5.0, 6.0, and 10.0 mil thicknesses, this non-adhesive PTFE film offers excellent non-stick properties, high dielectric strength, and resistance to heat, moisture, chemicals, and UV exposure. It can be easily cut or fabricated into custom components for industrial, electrical, and mechanical applications. Common uses include gasket and seal fabrication, electrical insulation barriers, release liners, bearing surfaces, wear pads, slide plates, and machine components. Operating temperature range: -100°F to 500°F (-73°C to 260°C), making it an ideal solution for demanding industrial and manufacturing environments.

🔹Suitable substitute for

Uline S-17216, S-5331, S-10514, S-10515, S-7196, S-17217, S-7197, S-13673, S-17218 | 3M 5451 | DeWal 134-3 | Saint Gobain SG25-03 | Greenbelt 100-3S  |W.F. Lake L40S-3 | Taconic 6085-03 | Chemfab 350-35 | Lanmar 635-3 | AFC 25003S, and more.

🔹Applications:

  • Primarily used in heat-sealing machines.
  • Provides a good barrier for separating dissimilar parts.
  • Protects surfaces, helping reduce replacement parts.
  • Used in Roller wrapping, wire harnessing, squeak reduction, noise reduction, insulating, lining, shielding, protecting, composite bonding, and flash breaking.
  • Designed to insulate a variety of vacuum sealer machines and electrical appliances.

🔹Compatibility

  • Fits virtually all FoodSaver series, incl. 2000, 3000, 4000, 5000, GameSaver & Professional, and all Weston, Cabella's, Nesco, and Rival Seal-A-Meal models.
  • Ideal for virtually all FoodSaver models, including 4800, 2244, 3240, 4440, 4865, 3880, 3460, 2840, 3840, 3835, 2440, 2450, 2860, 2240, 2840, FM2000, FM2100, GameSaver, and Professional.
  • Over the wire for vacuum sealers, under the wire for impulse sealers. Great for Weston Pro 2100, 2300 & more.

Note: Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear

🔹Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: Polytetrafluoroethylene (PTFE) Teflon-impregnated fiberglass cloth
  • Release Liner: N/A
  • Thickness: 3 Mil, 5 Mil, 6 Mil, 10 Mil (carrier, adhesive)
  • Adhesion: 43 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 100 pounds per inch (longitudinal)
  • Dielectric Strength: 5,000 volts
  • Breaking Strength (Warp / Fill): 100 / 70 pounds per inch
  • Service/Operating Temperature: -100 F to 500 F
  • Elongation (Warp / Fill): 3.4% / 2%
  • Core: 3" Diameter

Note: Specifications are those given by manufacturers and are not tested for accuracy.
