PTFE Film Teflon Tape | 36 Yards (Self-Wound)

SKU WOD TFE28SW-00500-72-36-BRO
$1,24364
$17.27/per roll
Sold by the case
Thickness: 5.0 Mil
Size: 1/2 Inch
Shipping calculated at checkout.
Online price reflects item cost only. Shipping or delivery charges may apply at checkout. Availability and pricing are subject to change.
Distributor Advantages
Order Free Sample
30 Days Return Policy
Call Us for Custom Sizes: +1 786 565 9858
In-store pickup available. Orders are typically ready in 4 hrs

🔹Product Description

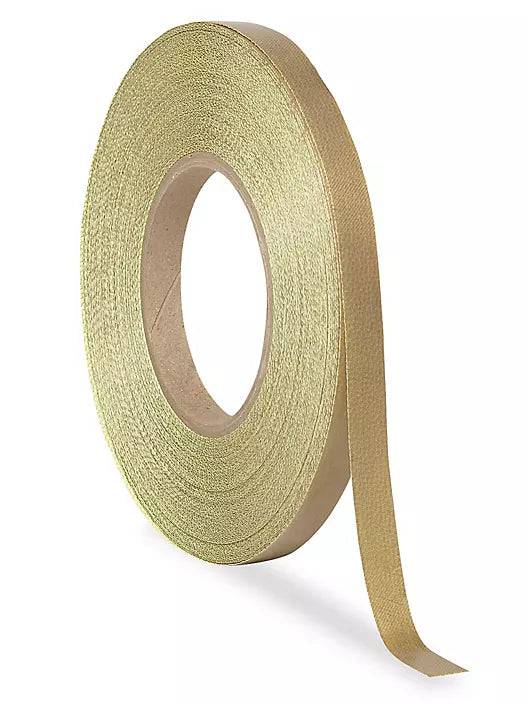

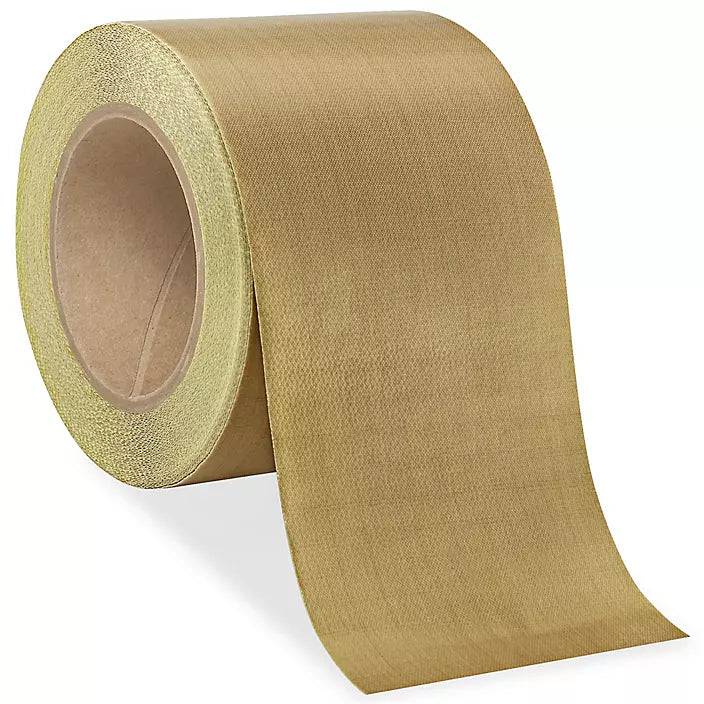

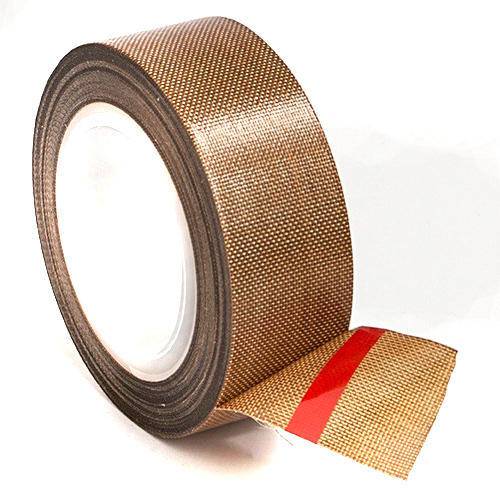

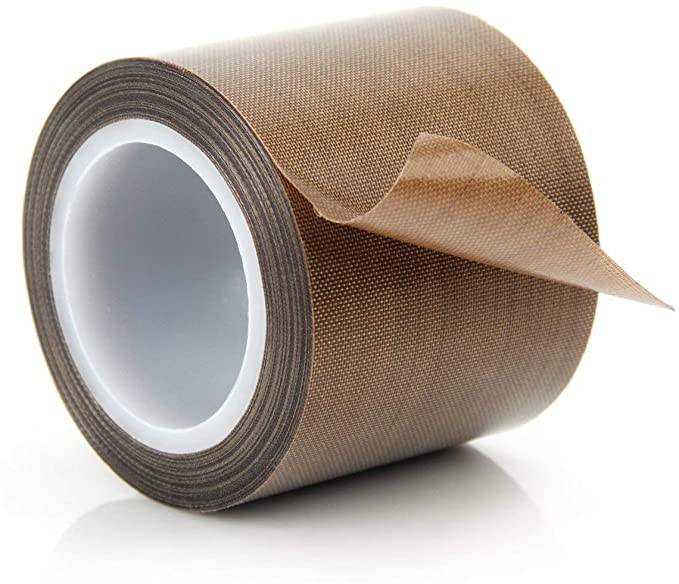

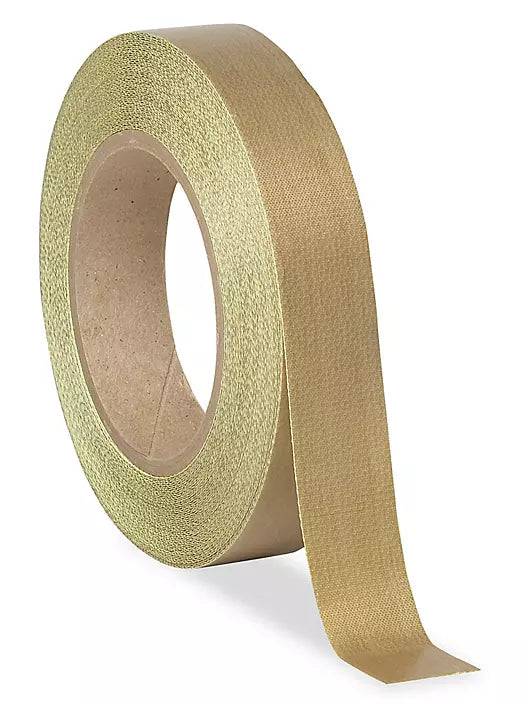

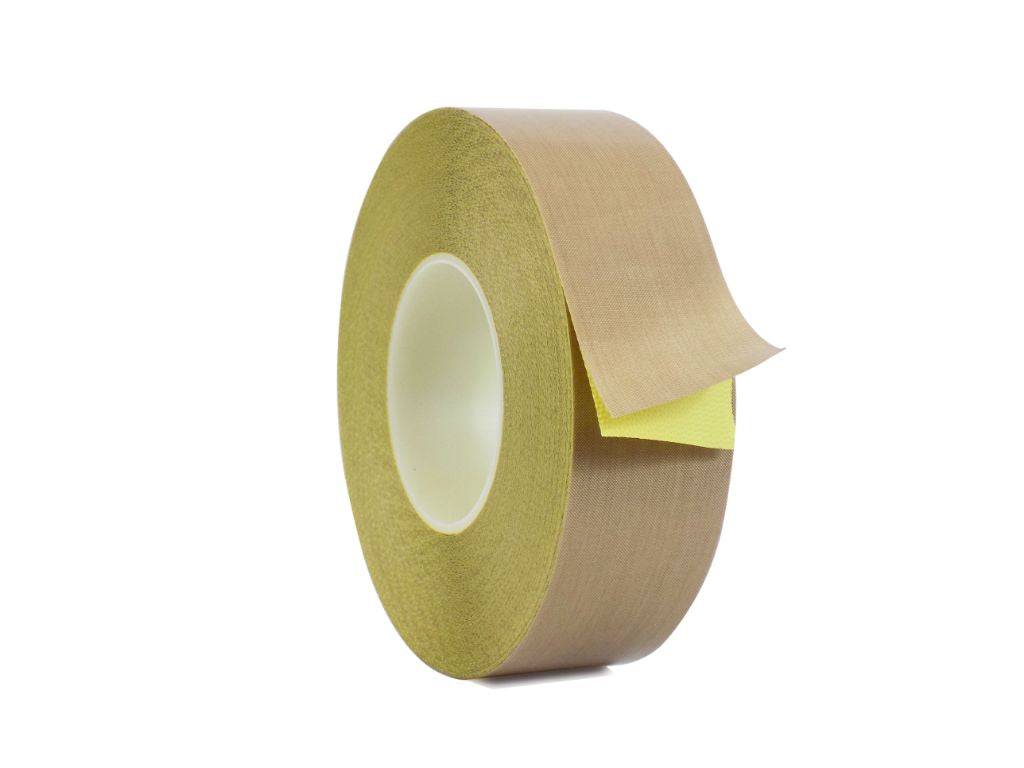

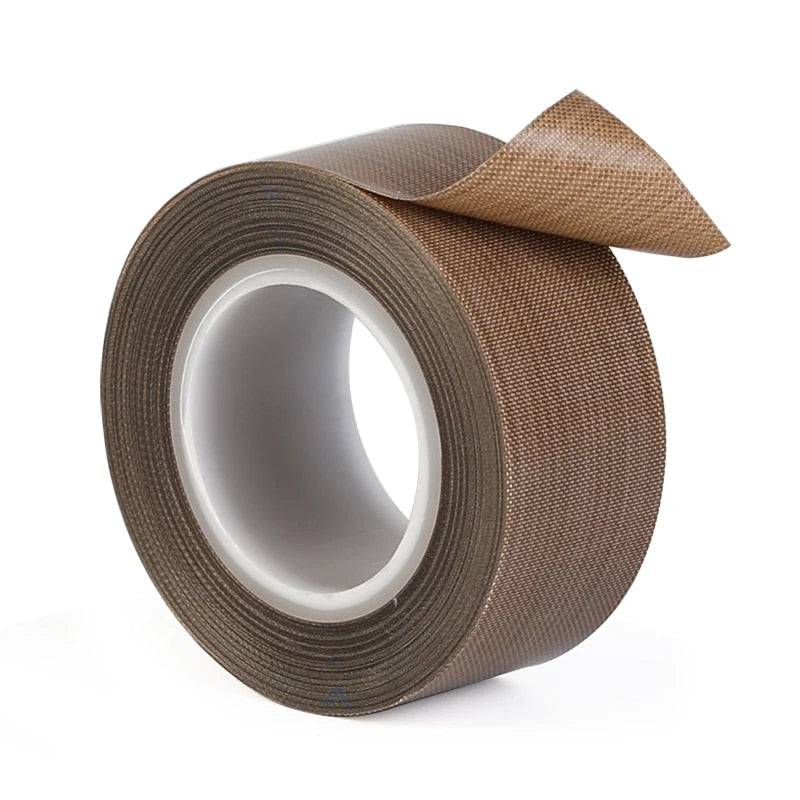

PTFE Film Teflon Tape | 36 Yards (Self-Wound) (TFESW)

PTFE-Coated Fiberglass Teflon Tape (Self-Wound) is designed for heat sealing equipment, vacuum sealers, impulse sealers, laminating machines, and high-temperature conveyor systems where a release liner is not required. Made from PTFE-coated fiberglass cloth with a high-temperature silicone adhesive in a self-wound construction, it delivers outstanding chemical resistance, low friction, and exceptional durability in demanding industrial environments.

Available in 5.0, 6.8, 8.4, and 12.1 mil total thicknesses, this tape provides a reliable non-stick, heat-resistant surface that helps prevent product buildup, improves sealing performance, and protects heating elements from wear and damage. Its self-wound design allows for quick application without removing a liner, making it ideal for high-volume production and continuous operations. Engineered to resist heat, chemicals, abrasion, and mechanical stress, it is commonly used on heat sealers, packaging machinery, laminating equipment, conveyor belts, chute liners, guide rails, roll covers, and release surfaces. Operating temperature range: -100°F to 500°F (-73°C to 260°C), making it an excellent choice for industrial processing, packaging, and electrical insulation applications.

🔹Suitable substitute for

Uline S-17216, S-5331, S-10514, S-10515, S-7196, S-17217, S-7197, S-13673, S-17218 | 3M 5451 | DeWal 134-3 | Saint Gobain SG25-03 | Greenbelt 100-3S | W.F. Lake L40S-3 | Taconic 6085-03 | Chemfab 350-35 | Lanmar 635-3 | AFC 25003S, and more.

🔹Applications:

  • Primarily used in heat-sealing machines.
  • Provides a good barrier for separating dissimilar parts.
  • Protects surfaces, helping reduce replacement parts.
  • Used in Roller wrapping, wire harnessing, squeak reduction, noise reduction, insulating, lining, shielding, protecting, composite bonding, and flash breaking.
  • Designed to insulate a variety of vacuum sealer machines and electrical appliances.

🔹Compatibility

  • Fits virtually all FoodSaver series, incl. 2000, 3000, 4000, 5000, GameSaver & Professional, and all Weston, Cabella's, Nesco, and Rival Seal-A-Meal models.
  • Ideal for virtually all FoodSaver models, including 4800, 2244, 3240, 4440, 4865, 3880, 3460, 2840, 3840, 3835, 2440, 2450, 2860, 2240, 2840, FM2000, FM2100, GameSaver, and Professional.
  • Over the wire for vacuum sealers, under the wire for impulse sealers. Great for Weston Pro 2100, 2300 & more.

*Note: Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear

🔹Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: Polytetrafluoroethylene (PTFE) Teflon-impregnated fiberglass cloth
  • Release Liner: N/A
  • Thickness: 5.0 Mil, 6.8 Mil, 8.4 Mil, 12.1 Mil (carrier, adhesive)
  • Adhesion: 43 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 100 pounds per inch (longitudinal)
  • Dielectric Strength: 5,000 volts
  • Breaking Strength (Warp / Fill): 100 / 70 pounds per inch
  • Service/Operating Temperature: -100 F to 500 F
  • Elongation (Warp / Fill): 3.4% / 2%
  • Core: 3" Diameter plastic core

Note: Specifications are those given by manufacturers and are not tested for accuracy.
