Striped Reflective Tape for Safety Signage - 5-Year Warranty

SKU WOD RTCS5-00750-48-50-BY
Online price reflects item cost only. Shipping or delivery charges may apply at checkout. Availability and pricing are subject to change.
$2,26713
$47.23/per roll
Sold by the case
Size: 3/4 inch
Color: Black & Yellow
Shipping calculated at checkout.
Technical Data Sheet SDS Product Literature

INDUSTRIAL GRADE DUCT TAPE



Alternative to: Various industry standards such as Uline S-6732, S-6733, and more.

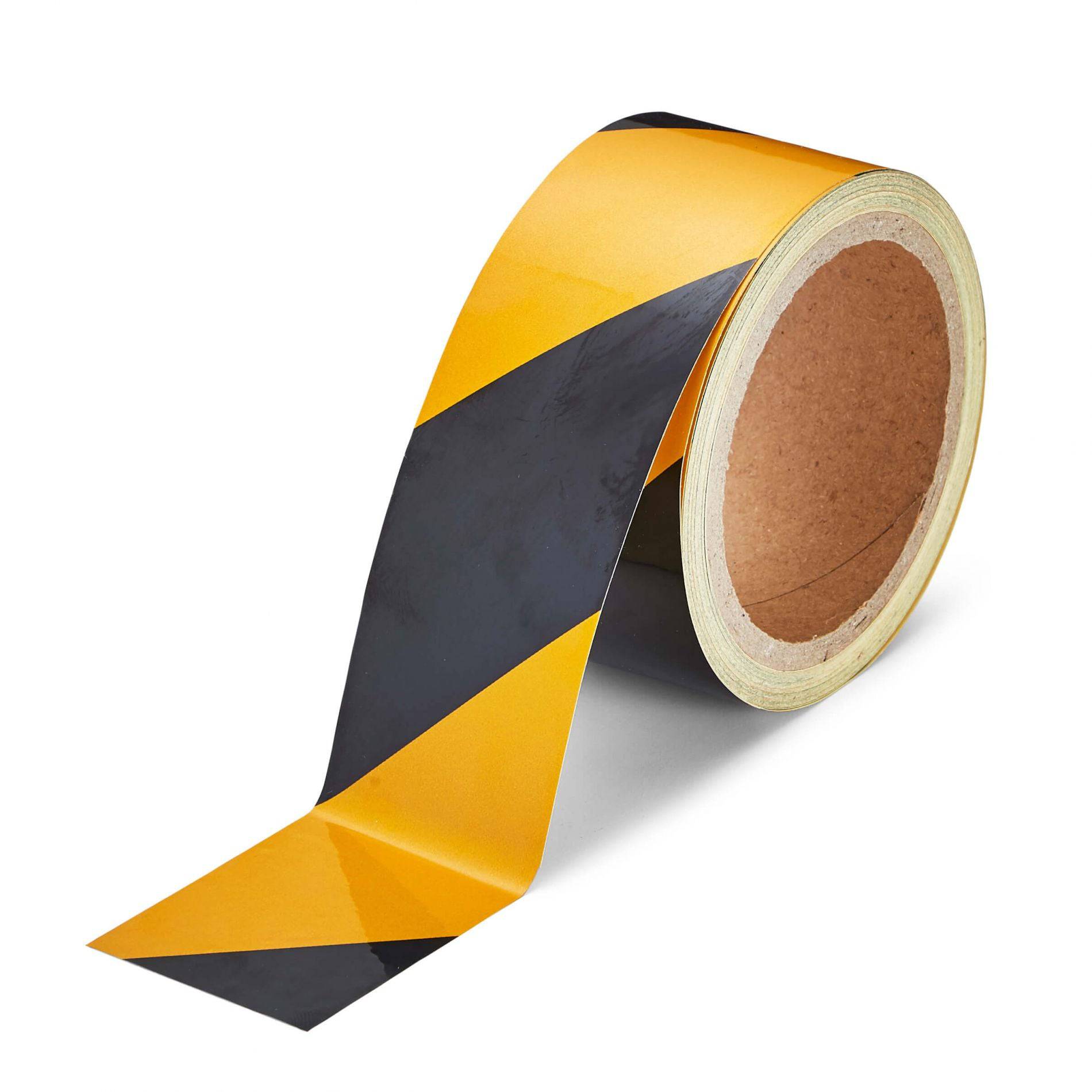

This black and yellow striped reflective tape is primarily designed for high-visibility in nighttime applications. It features an enclosed lens retroreflective urethane film coated with a permanent acrylic adhesive, wound on a 5 mil White polyethylene coated paper release liner. Consists of highly reflective powder (glass beads) that reflects light to the source.

RTCS5 Application surface should be flat (not curved or tubular). Also, it is not designed to adhere to unpainted stainless steel surfaces. Stripe Reflective Tape is used for safety applications and is primarily designed for permanent and temporary traffic signage. It is a striped polyester/vinyl tape coated with an acrylic adhesive.

Use to help prevent accidental damage to shelves/racks, loading docks, and warehouse poles. Diagonal stripes on the tape are approximately 2-7/8" long (measured along the side edge of the roll). Rolls typically come with a yellow protective wrapping around them for shipping. The adhesive has a dwell time of 24 hours, but reaches 75% of its adhesiveness after 15 minutes

Tape is Available in 2 Vibrant Colors

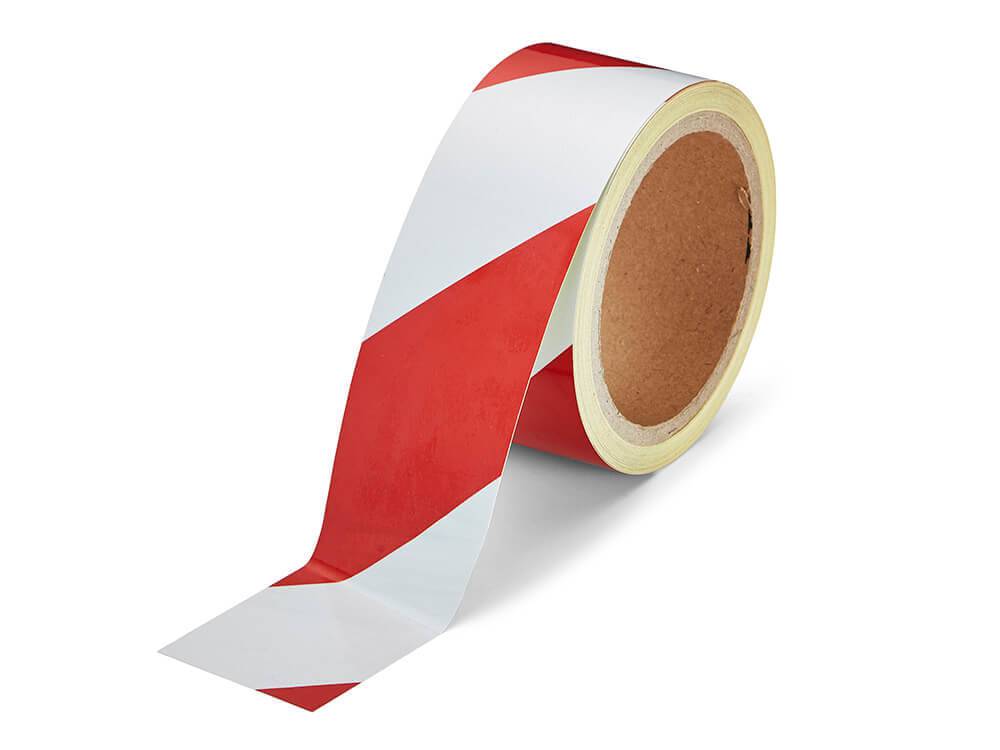

Red/White - Black/Yellow

Product Applications

  • For work zone devices and non-critical signs where retroreflection is necessary.
  • For permanent and temporary traffic signage.
  • Ideal for Trade show booths, Crafts, Displays, pictures, Nameplates, Interchangeable graphics, and Presentation boards.

Note: Photos of RTCS5 are taken with a flash camera in order to show the reflectivity of the tape; the colors of the tape will be much darker if a high-intensity light source (like the flash from a camera or car headlights) is not directed at the tape.

Technical Properties

  • Adhesive: Acrylic
  • Carrier/Backing: polyester/vinyl
  • Release Liner: poly-coated yellow Kraft paper
  • Thickness: 5 mils (carrier, adhesive)
  • Adhesion: 50 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 10 pounds per inch (longitudinal)
  • Application Temperature: 41°F (minimum)
  • Service/Operating Temperature: 41°F to 176°F
  • Specification Met: Federal specifications LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
  • Core: 3" Diameter

Note: Specifications are those given by manufacturers and are not tested for accuracy.
