Engineering Grade Retro-Reflective Tape
Product Description
WOD RTC5 is primarily designed for permanent and temporary traffic signage and features an enclosed lens retroreflective urethane film coated with a permanent acrylic adhesive, wound on a 5 mil Polycoated Kraft paper liner. Consists of highly reflective powder (glass beads) that reflects light back to the source.
WOD RTC5 Application surface should be flat (not curved or tubular). Also, it is not designed to adhere to unpainted stainless steel surfaces. Primarily used to ensure safety in work zone areas, advertisements and traffic signage. The Product is hand-tearable, may be screen-printed and die-cut. The adhesive has a dwell time of 24 hours, but reaches 75% of its adhesiveness after 15 minutes

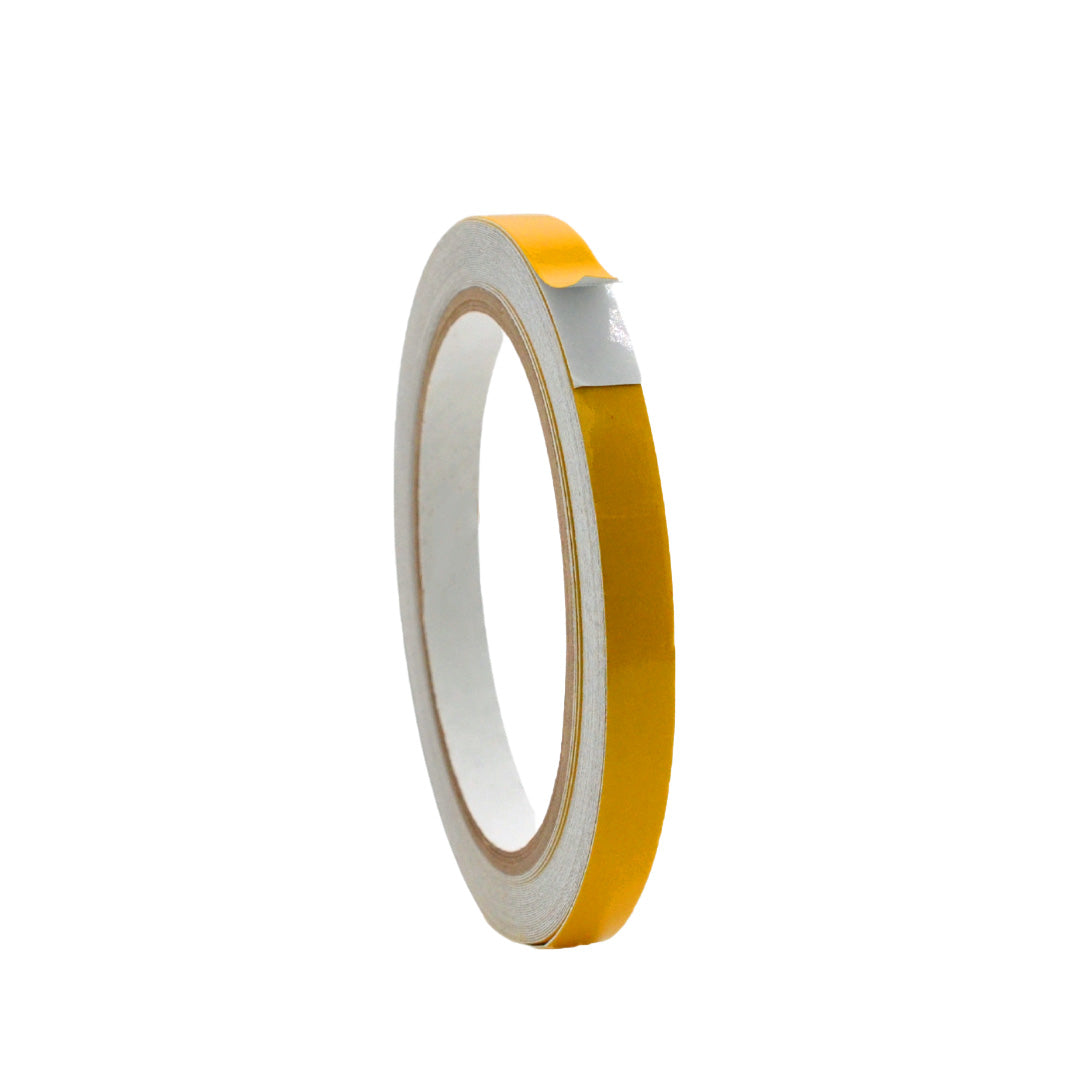

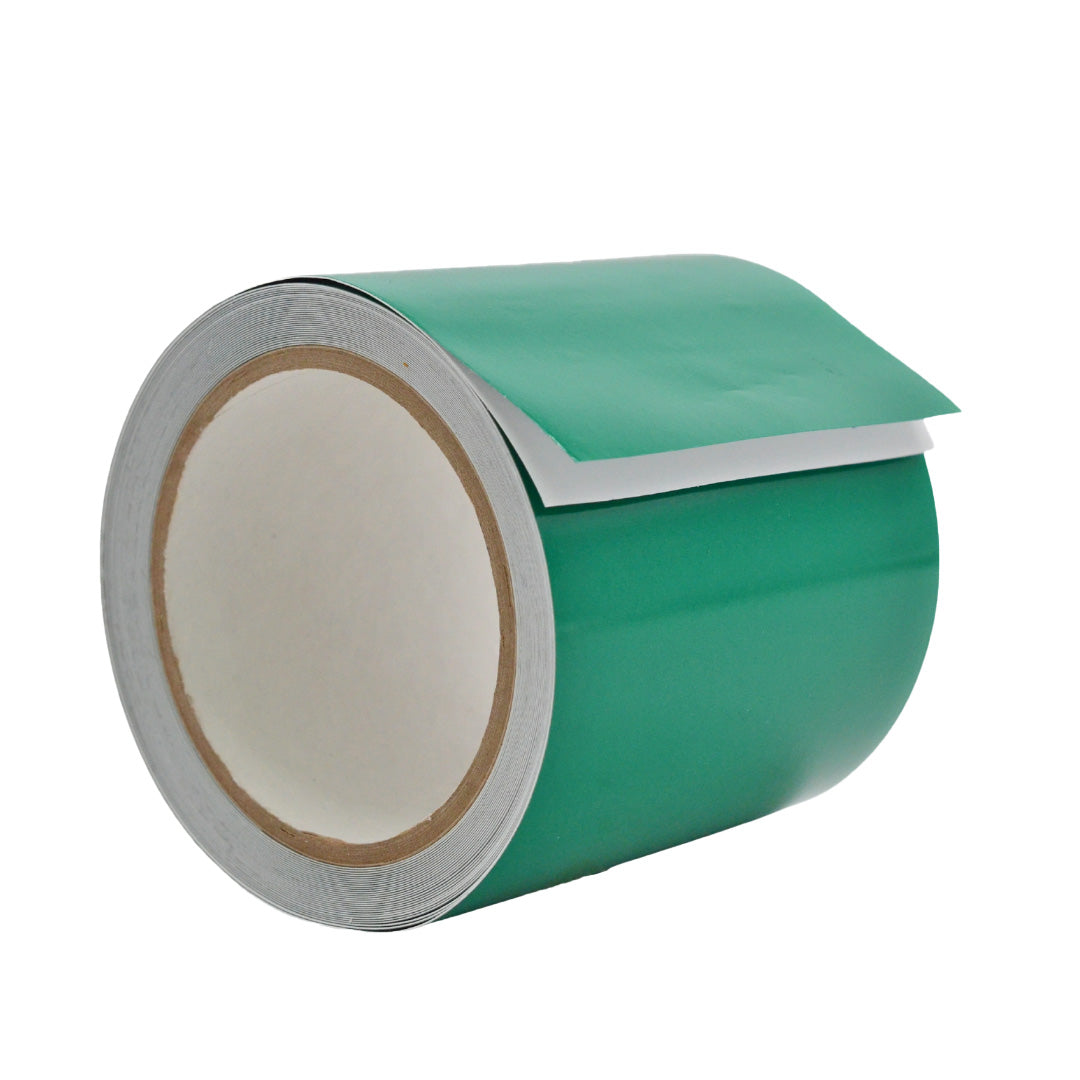

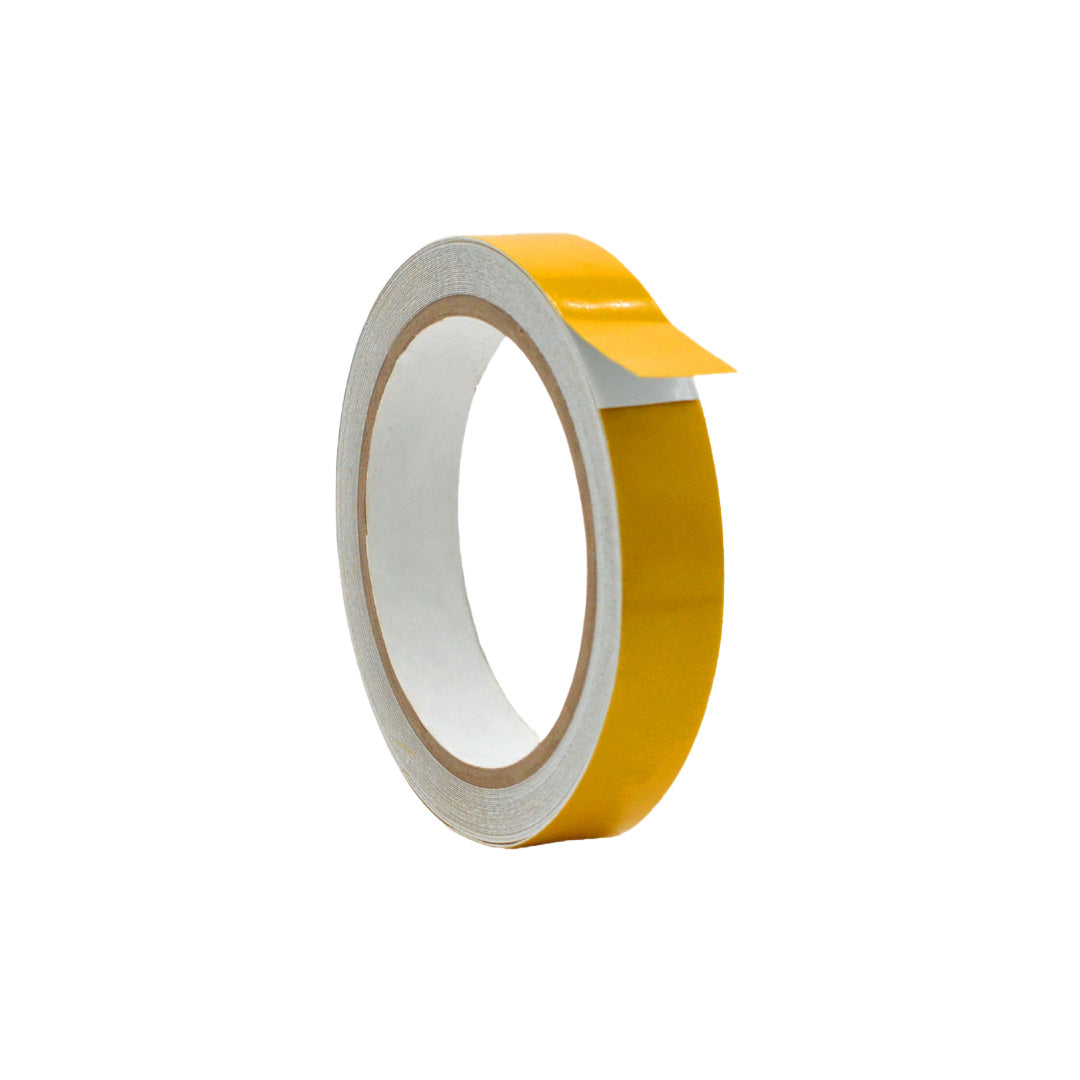

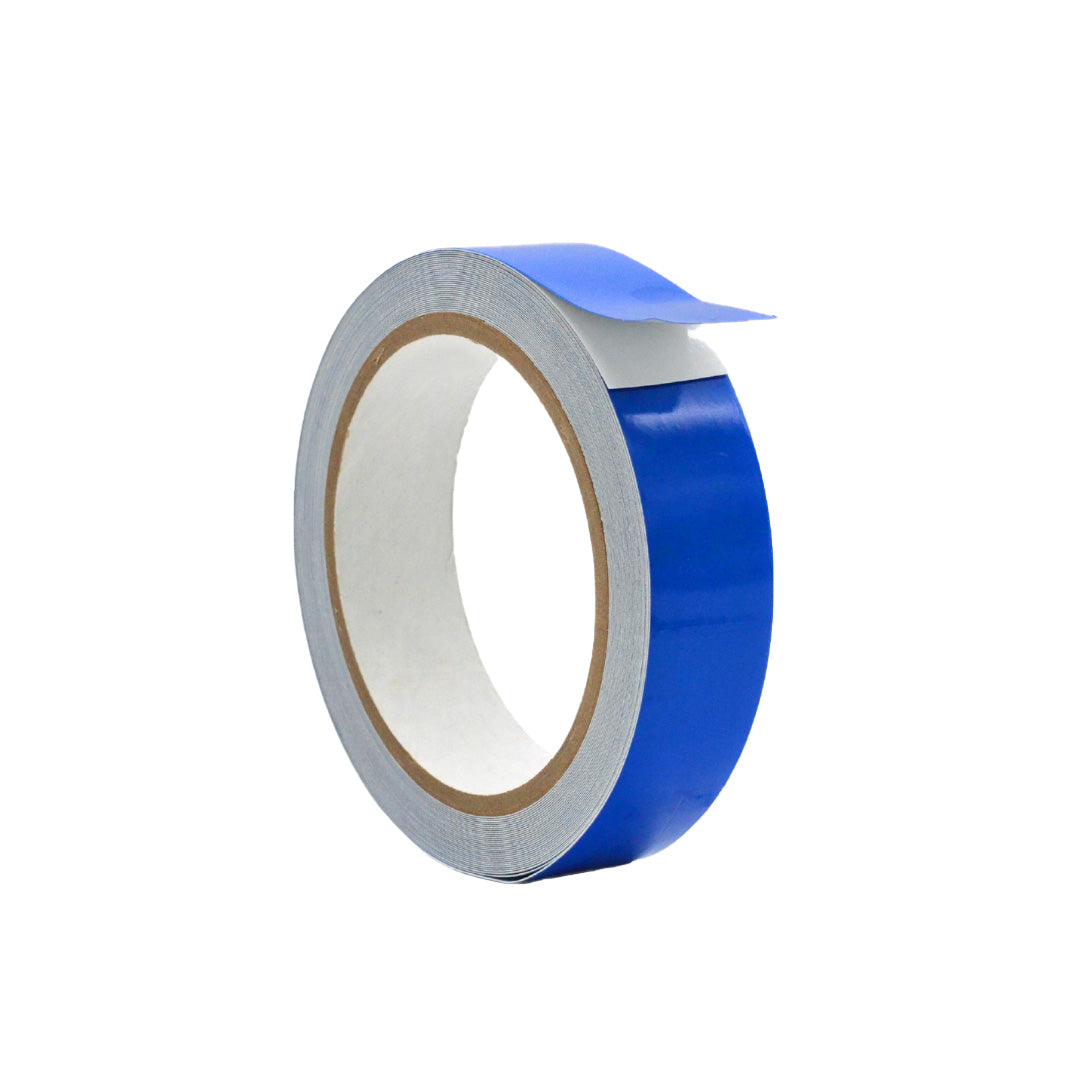

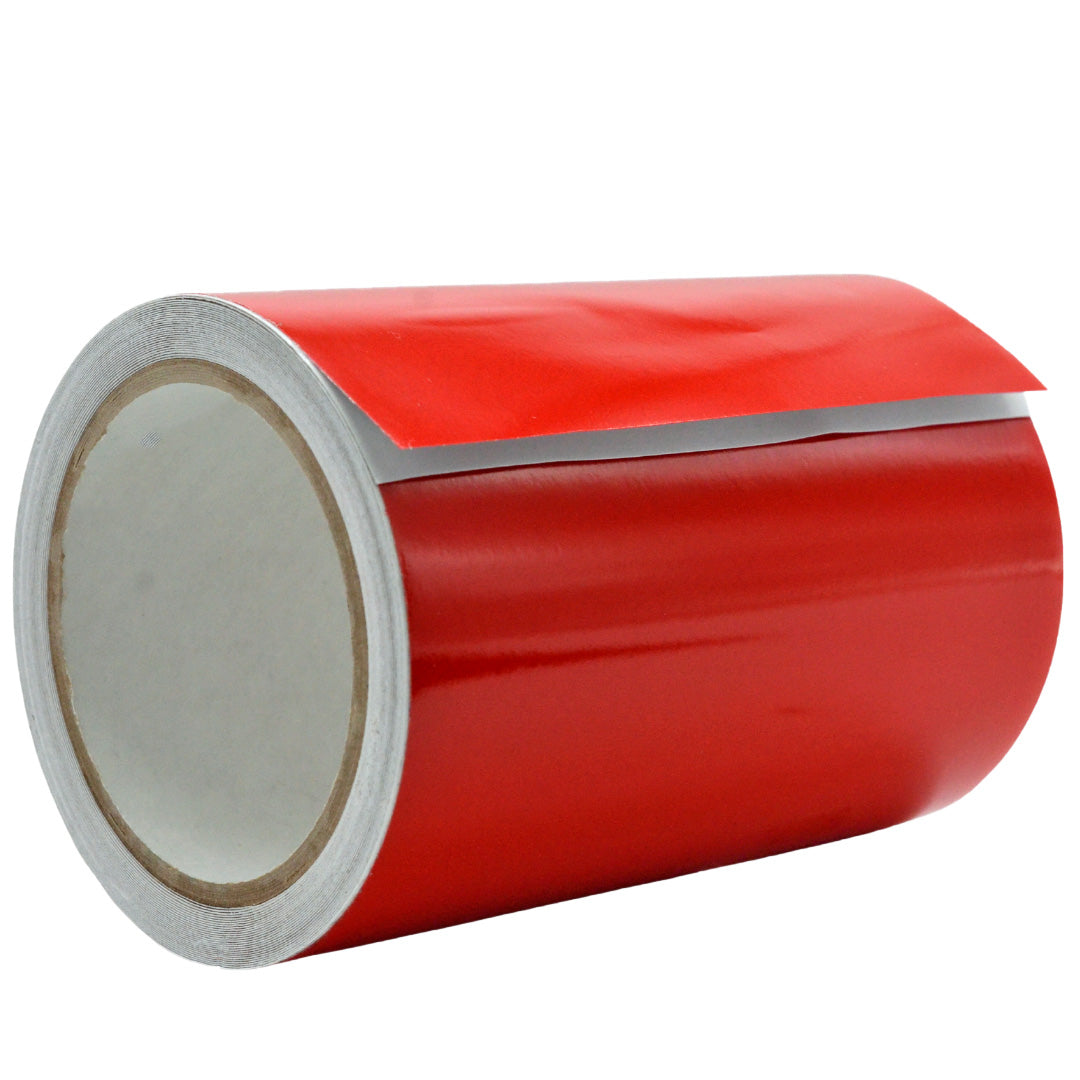

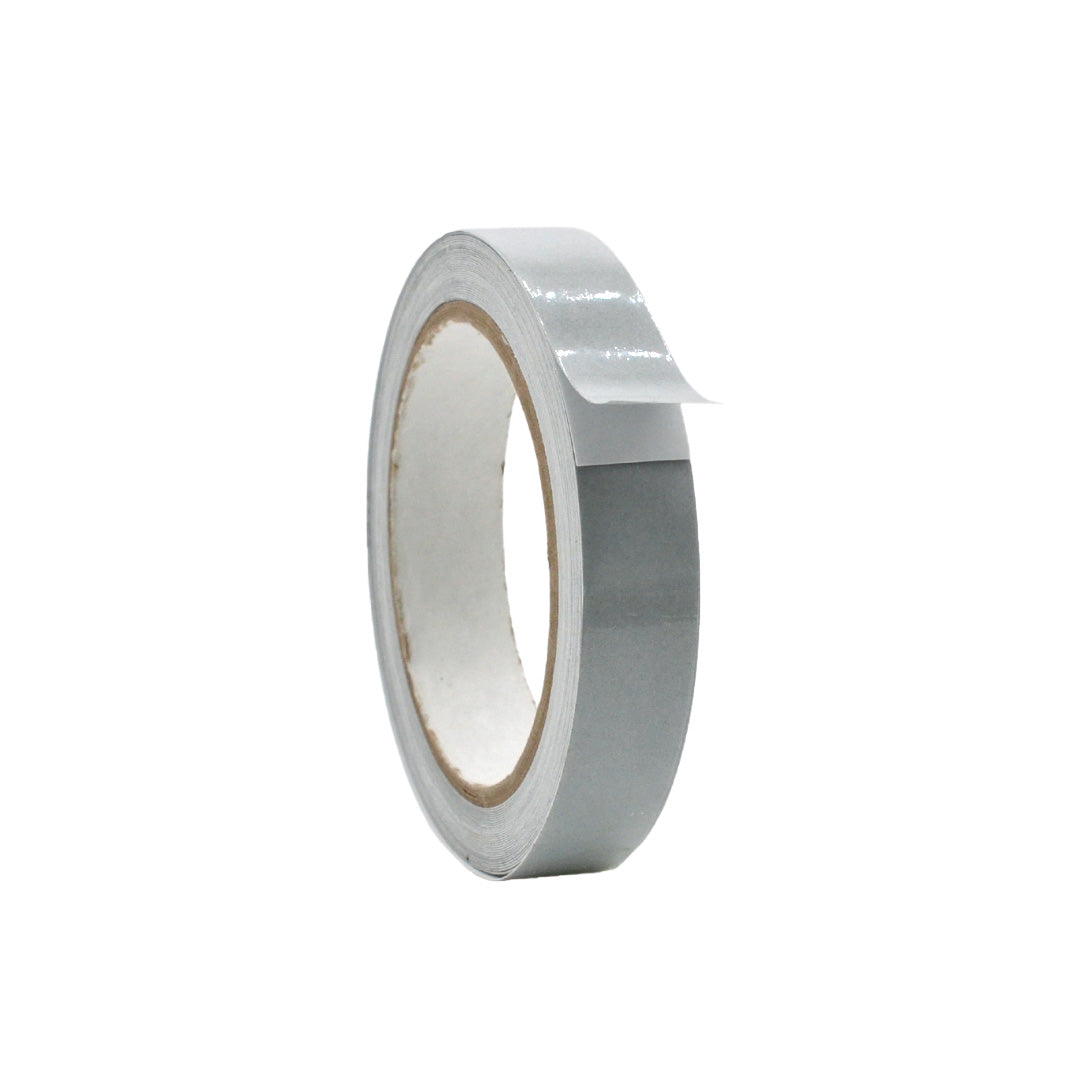

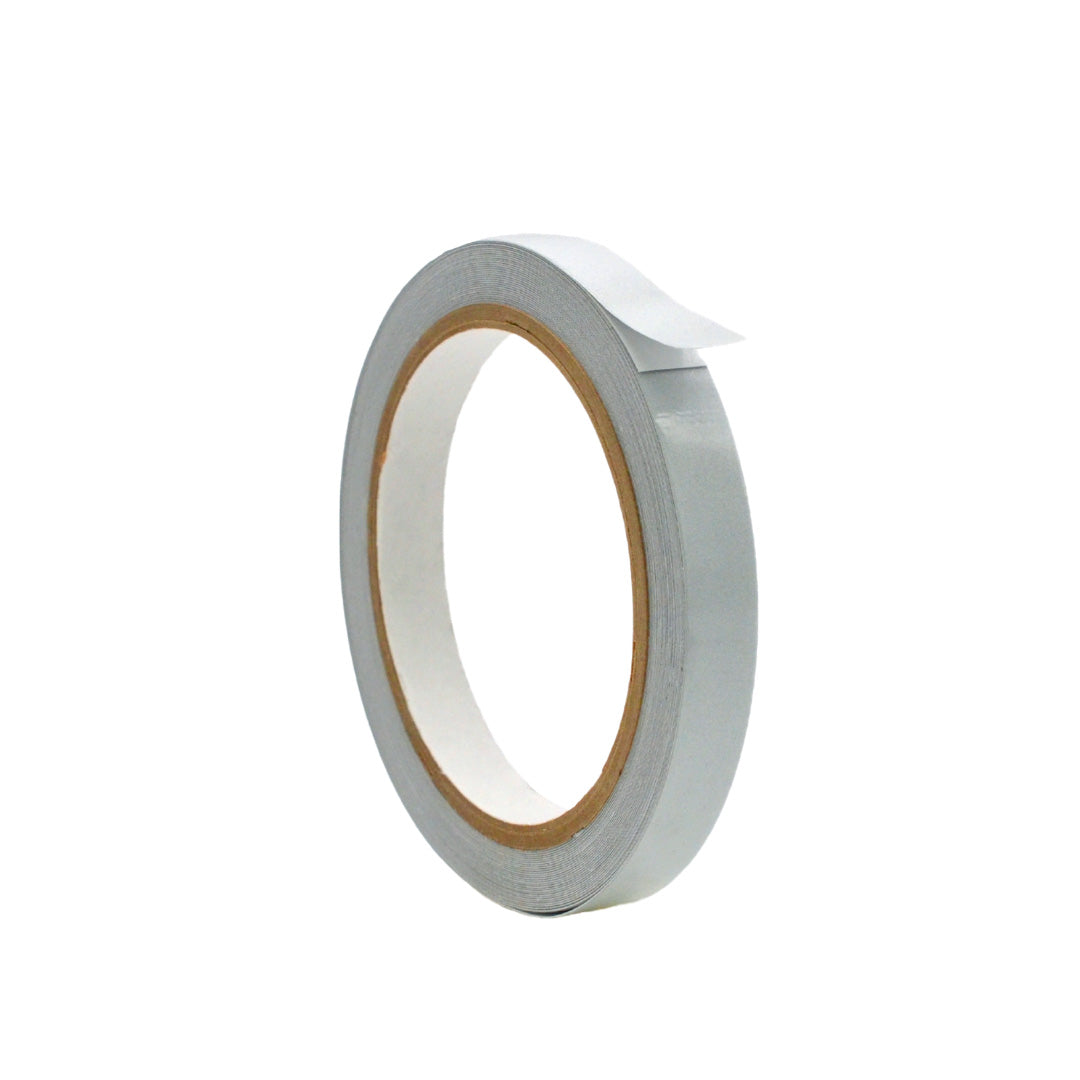

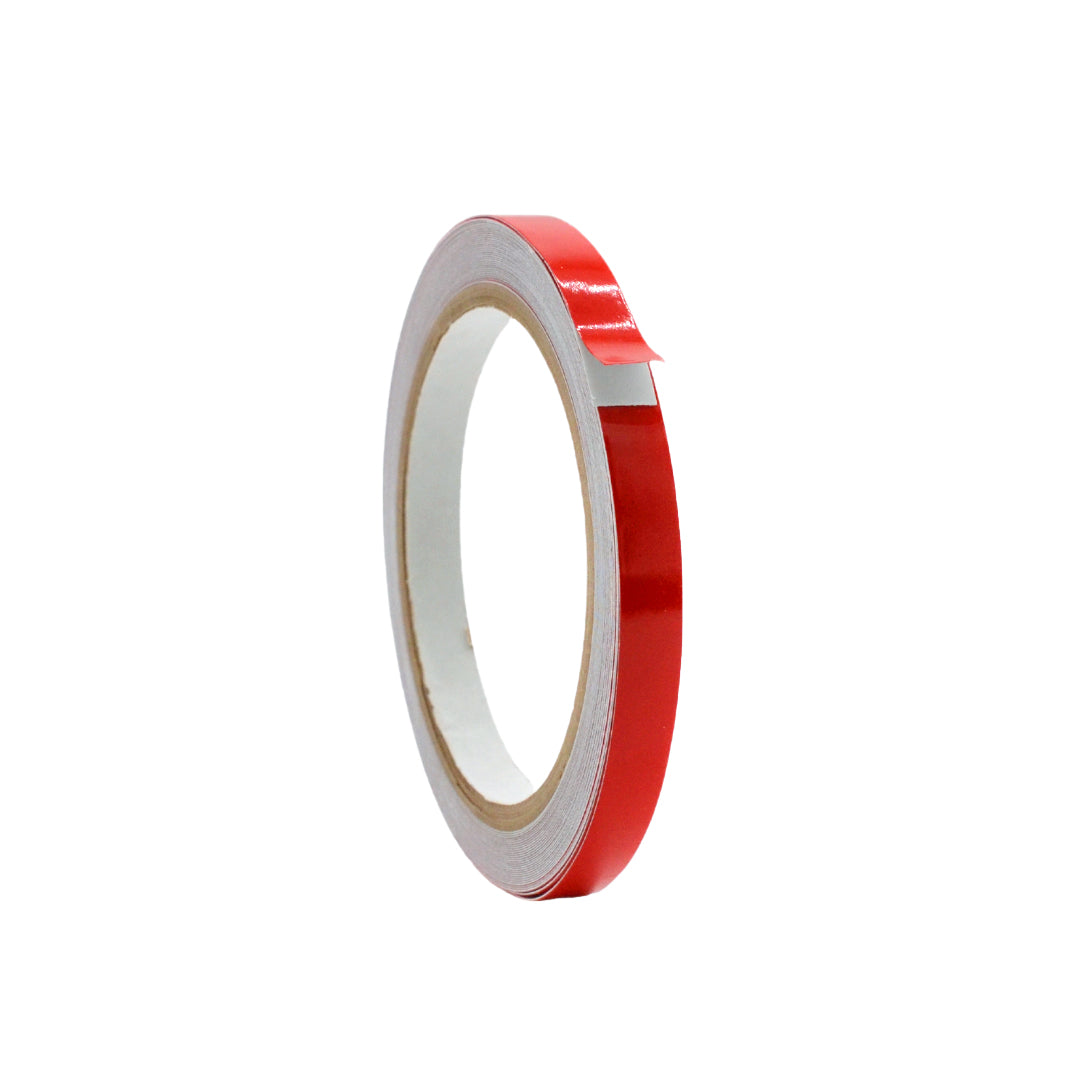

Tape is Available in 6 Vibrant Colors
Silver (white) - Black - Yellow - Red - Green - Blue
Rainbow Pack Includes
Black - White - Red - Yellow - Green - Blue
Product Applications
- For work zone devices and non-critical signs where retroreflection is necessary
- For permanent and temporary traffic signage
- For Trade show booths, Crafts, Displays and pictures, Nameplates, Interchangeable graphics, Presentation boards
Note

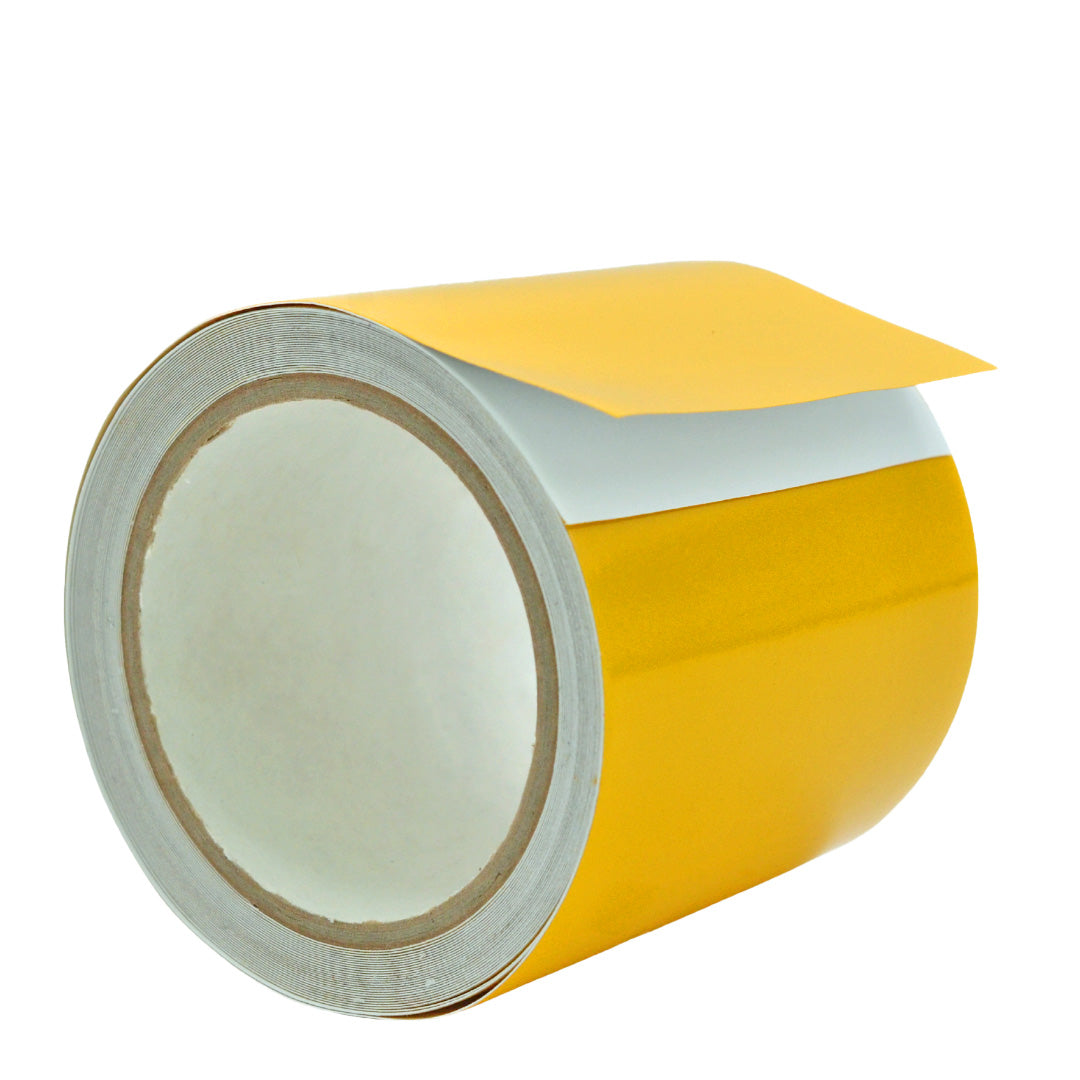

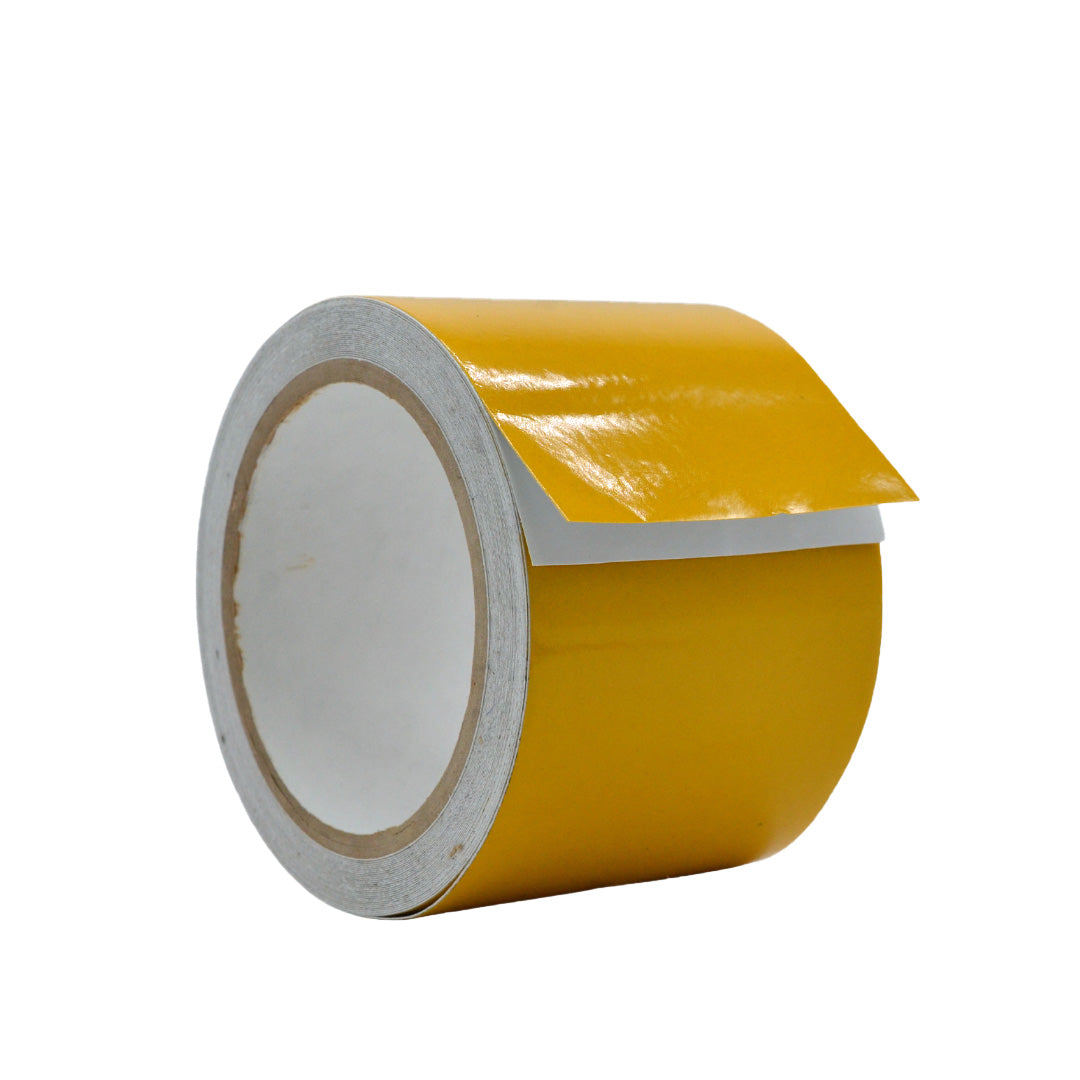

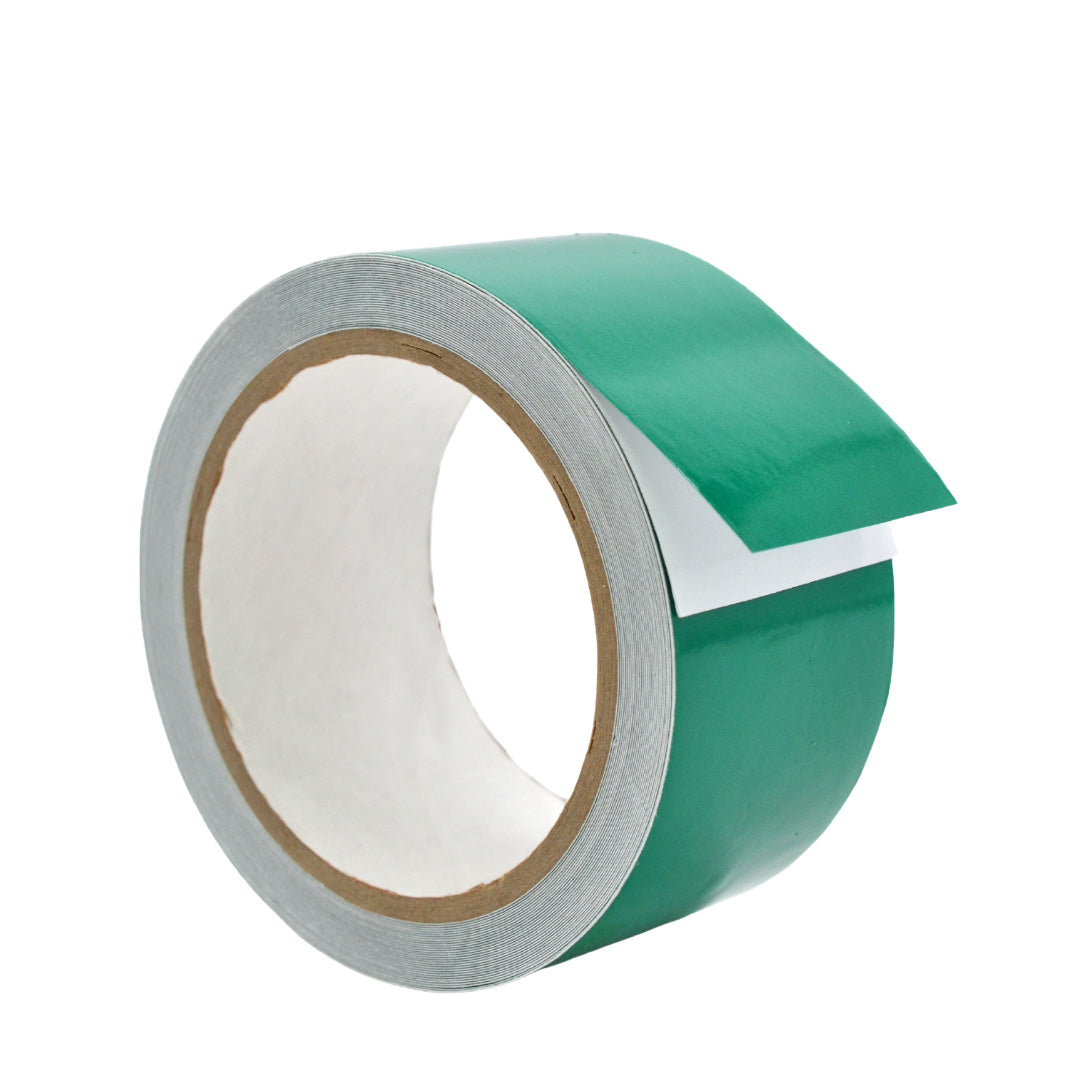

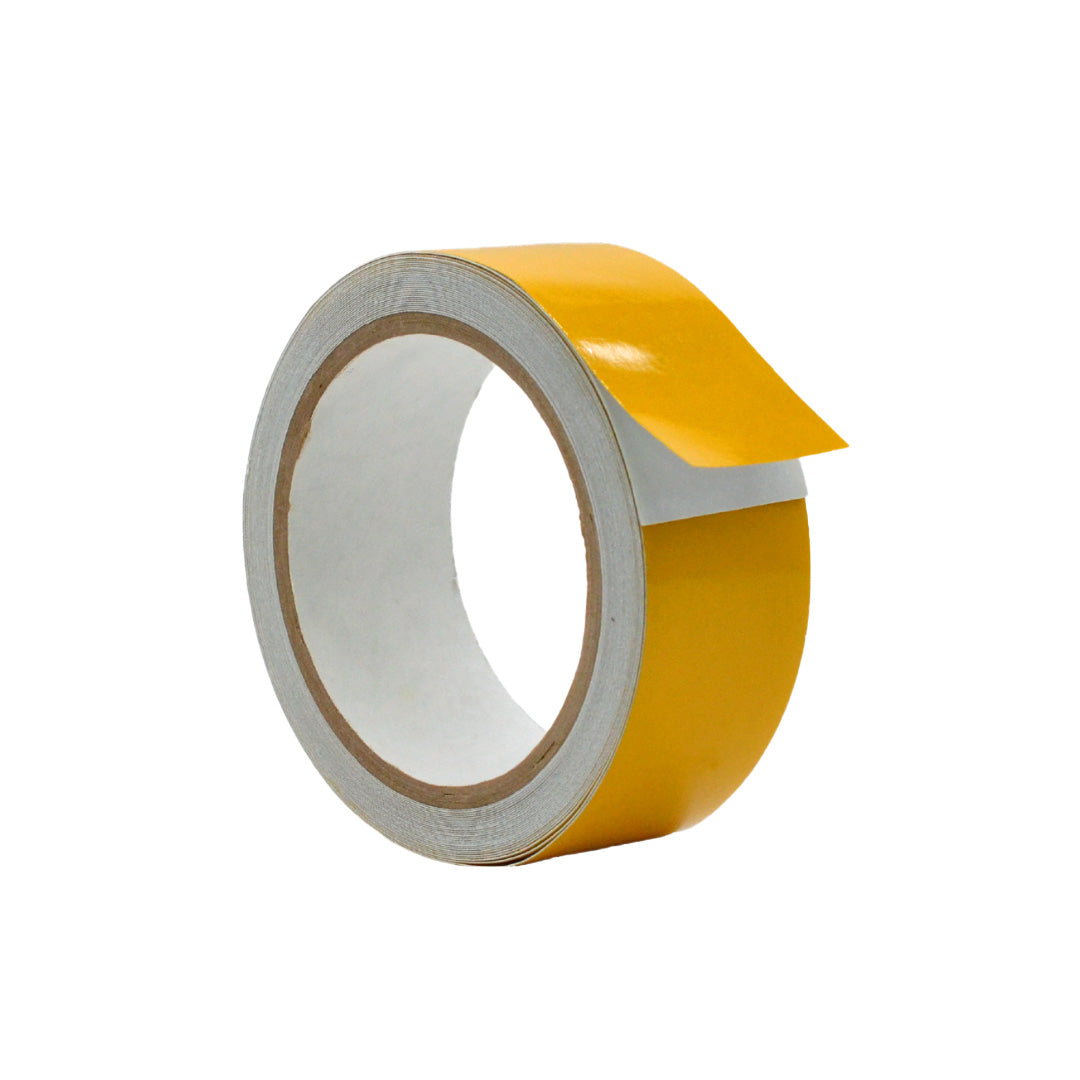

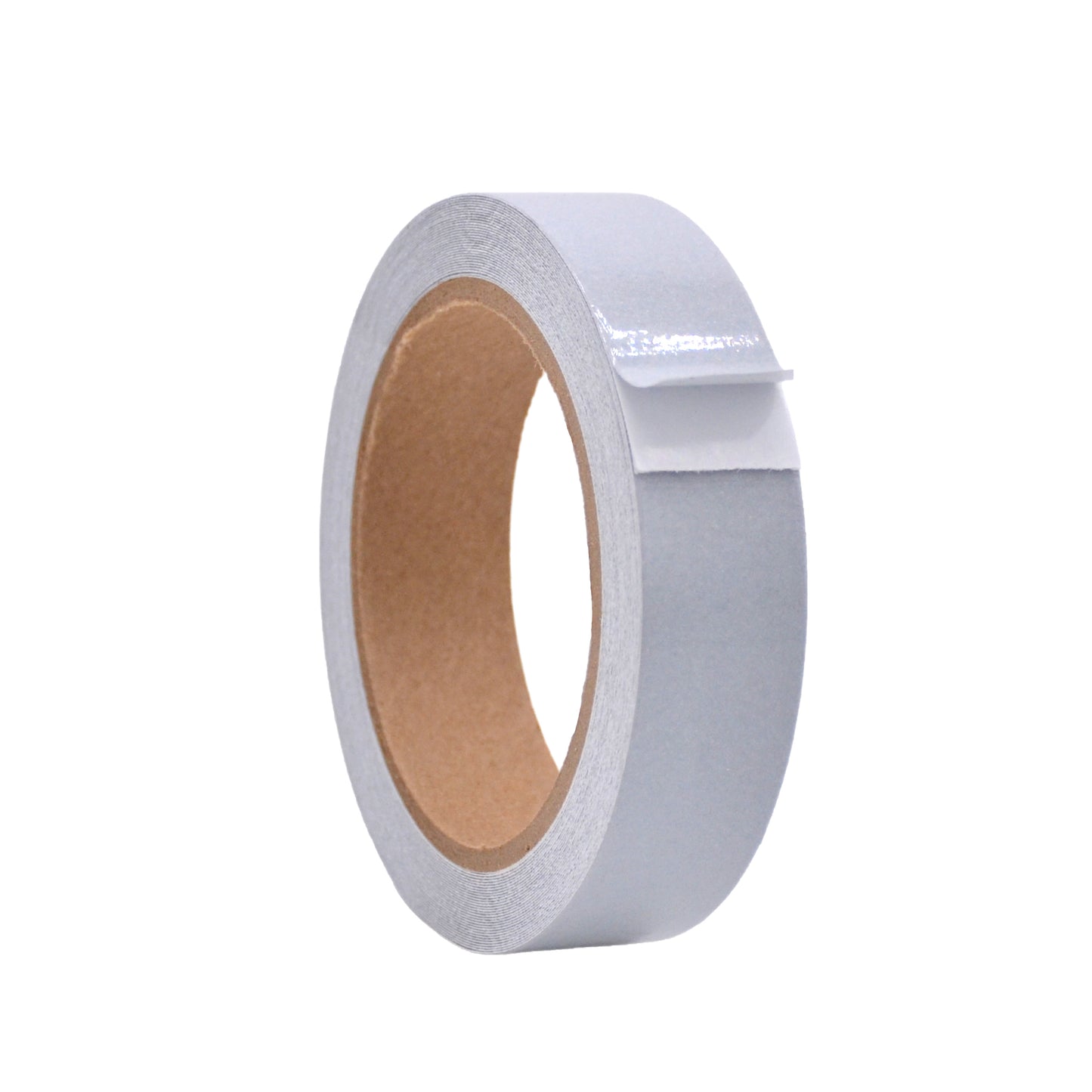

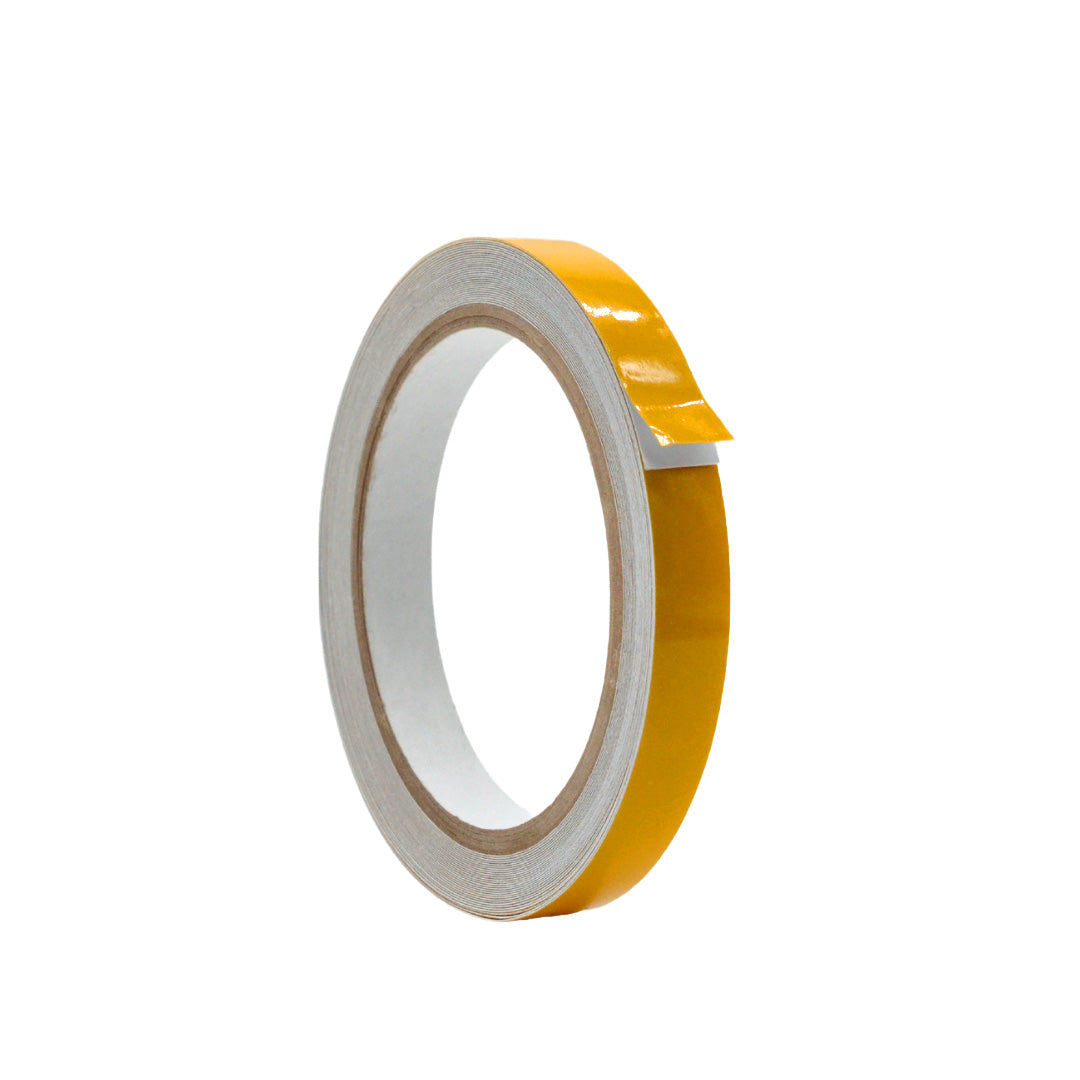

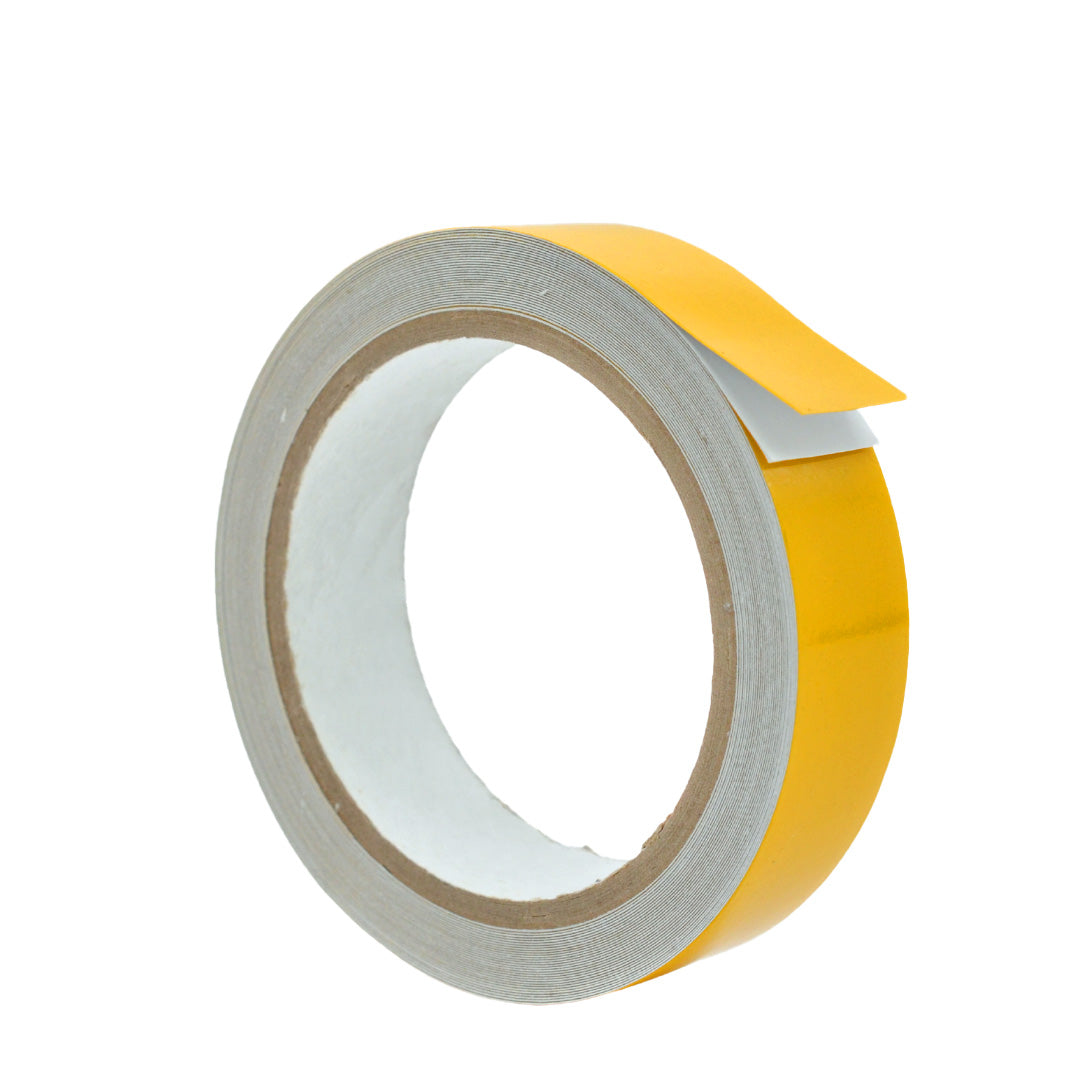

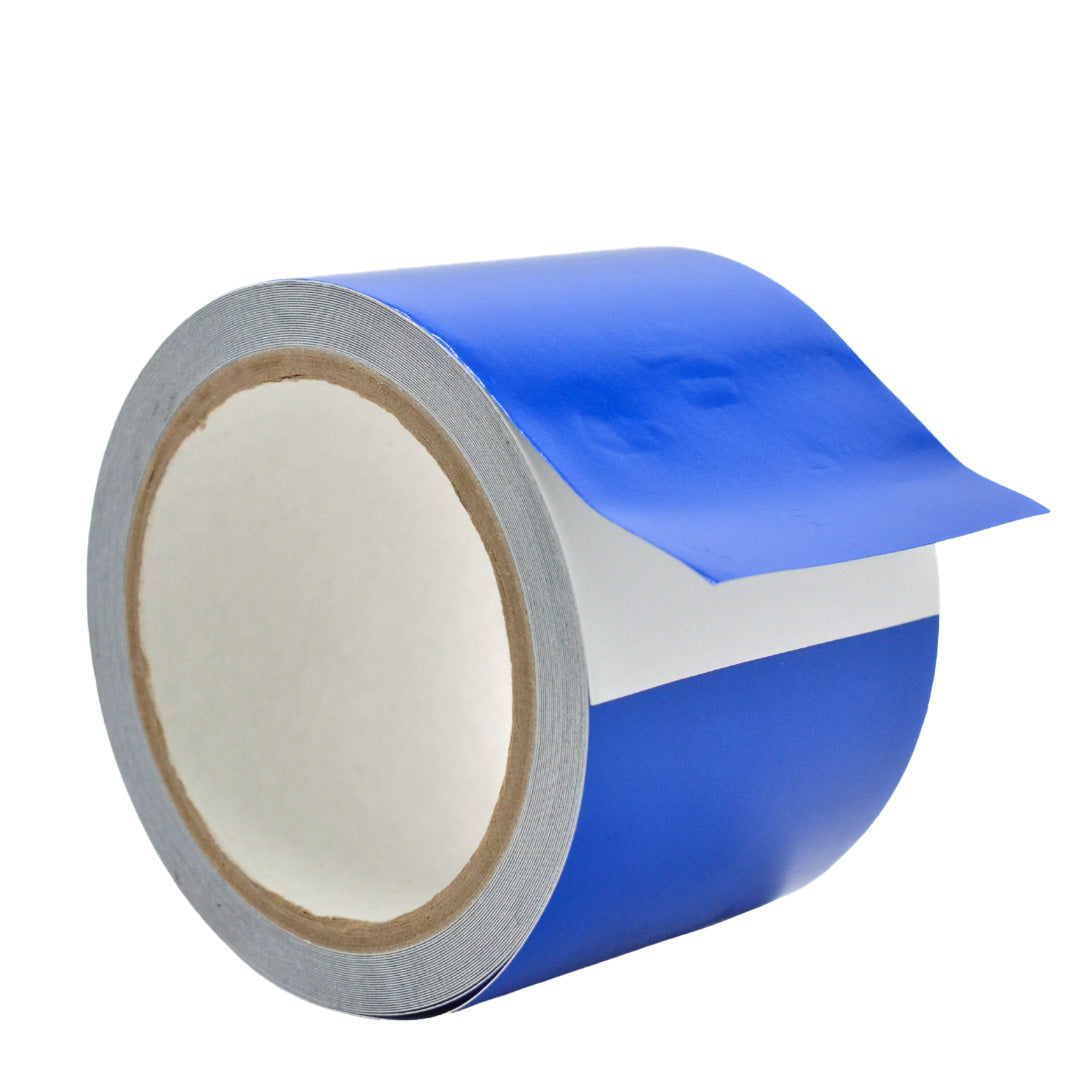

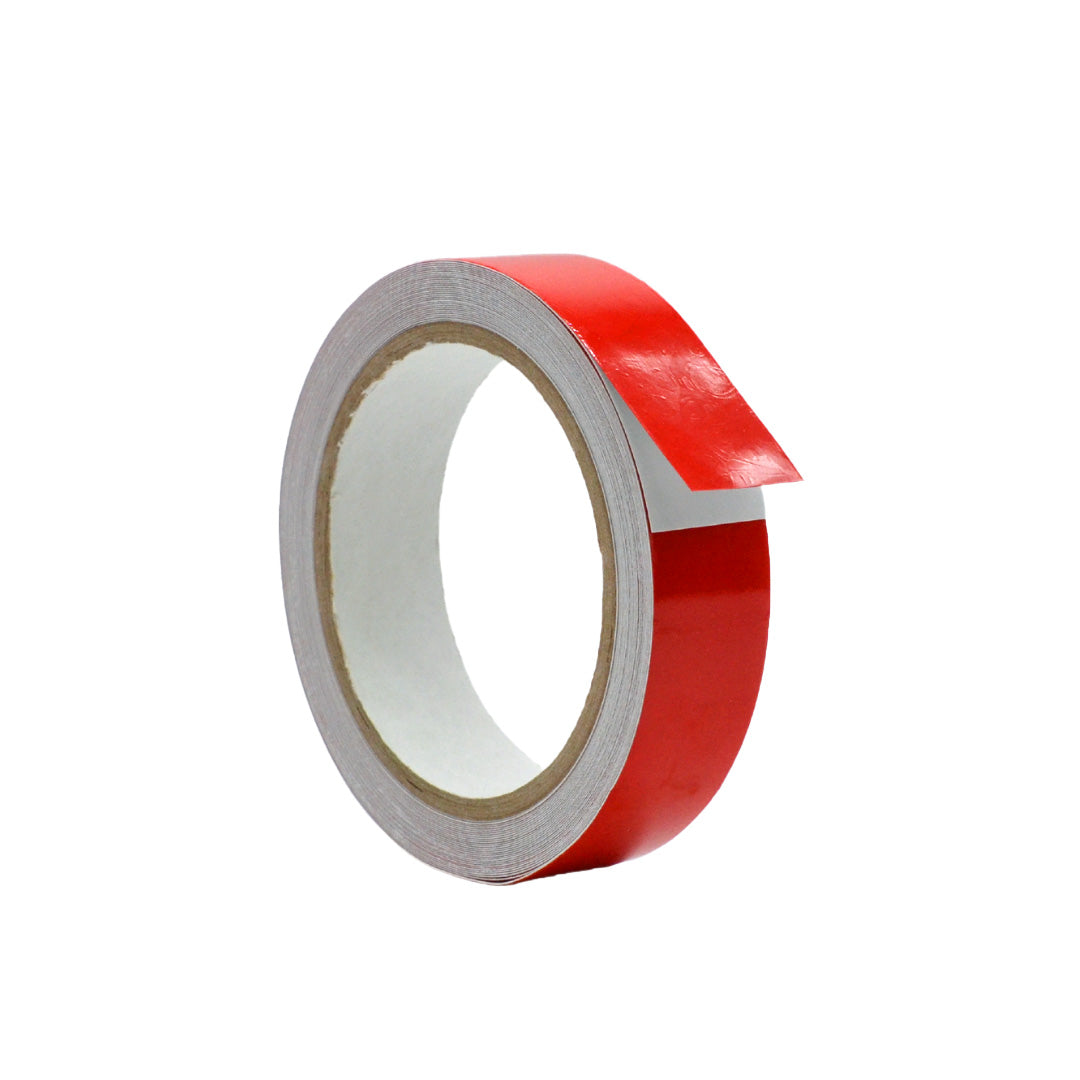

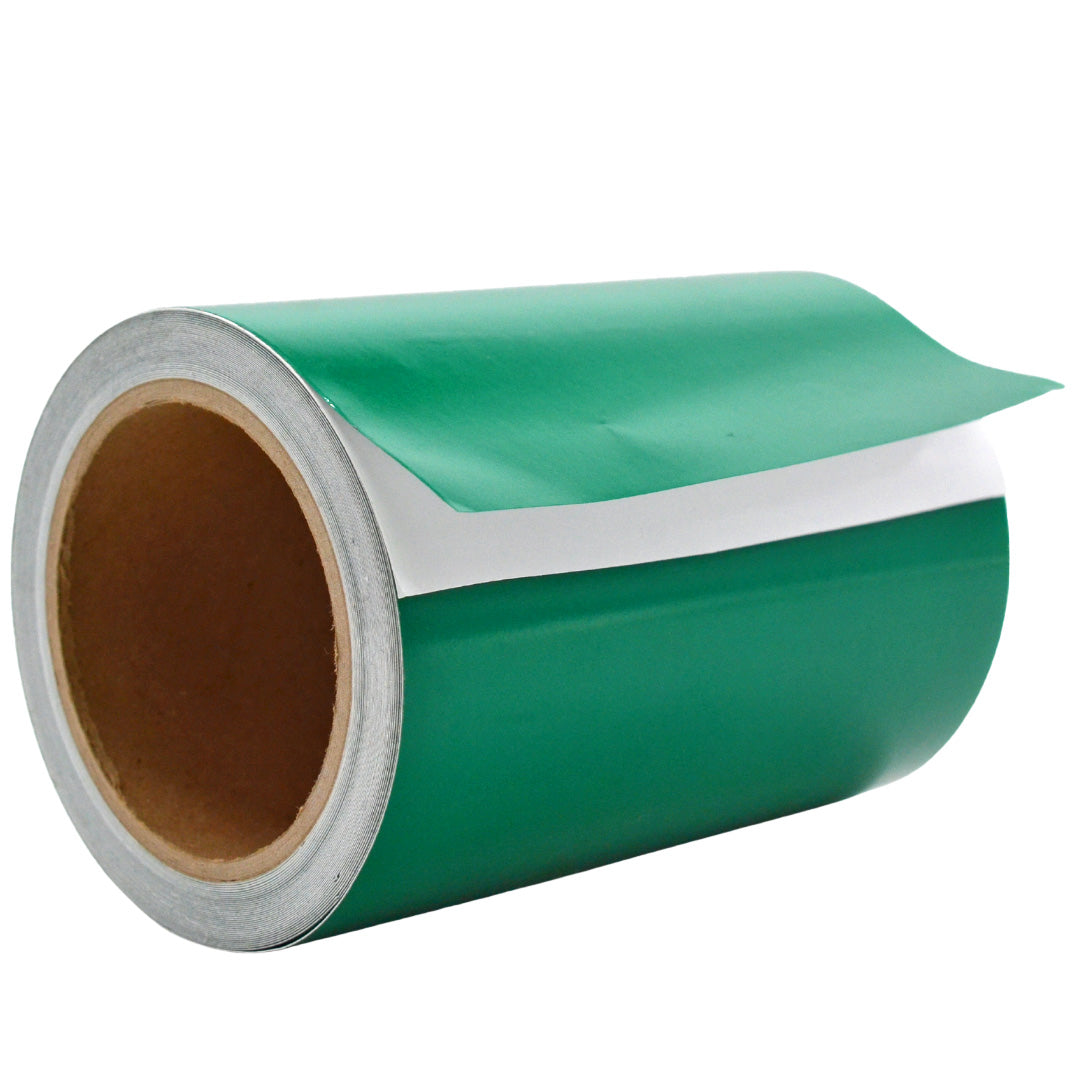

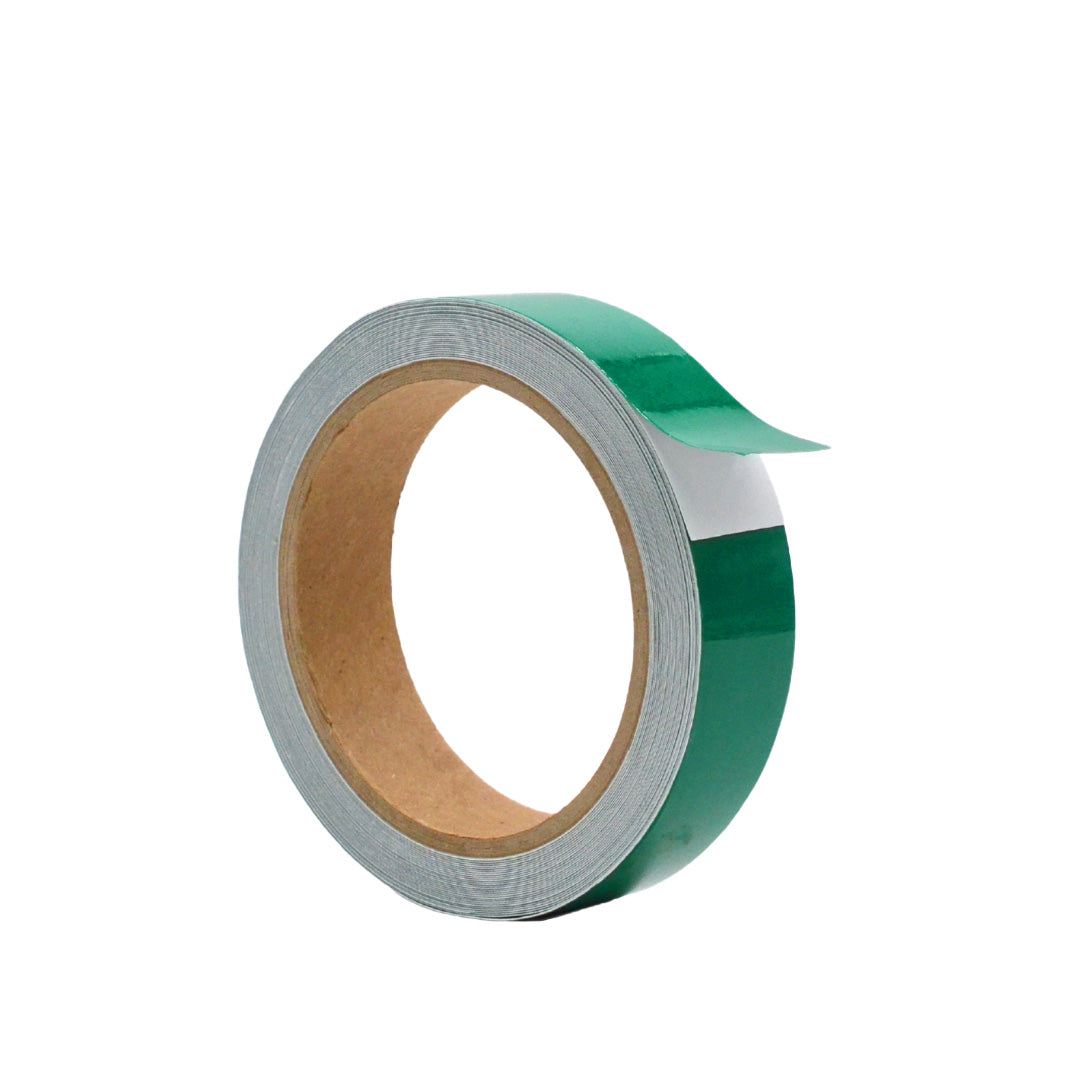

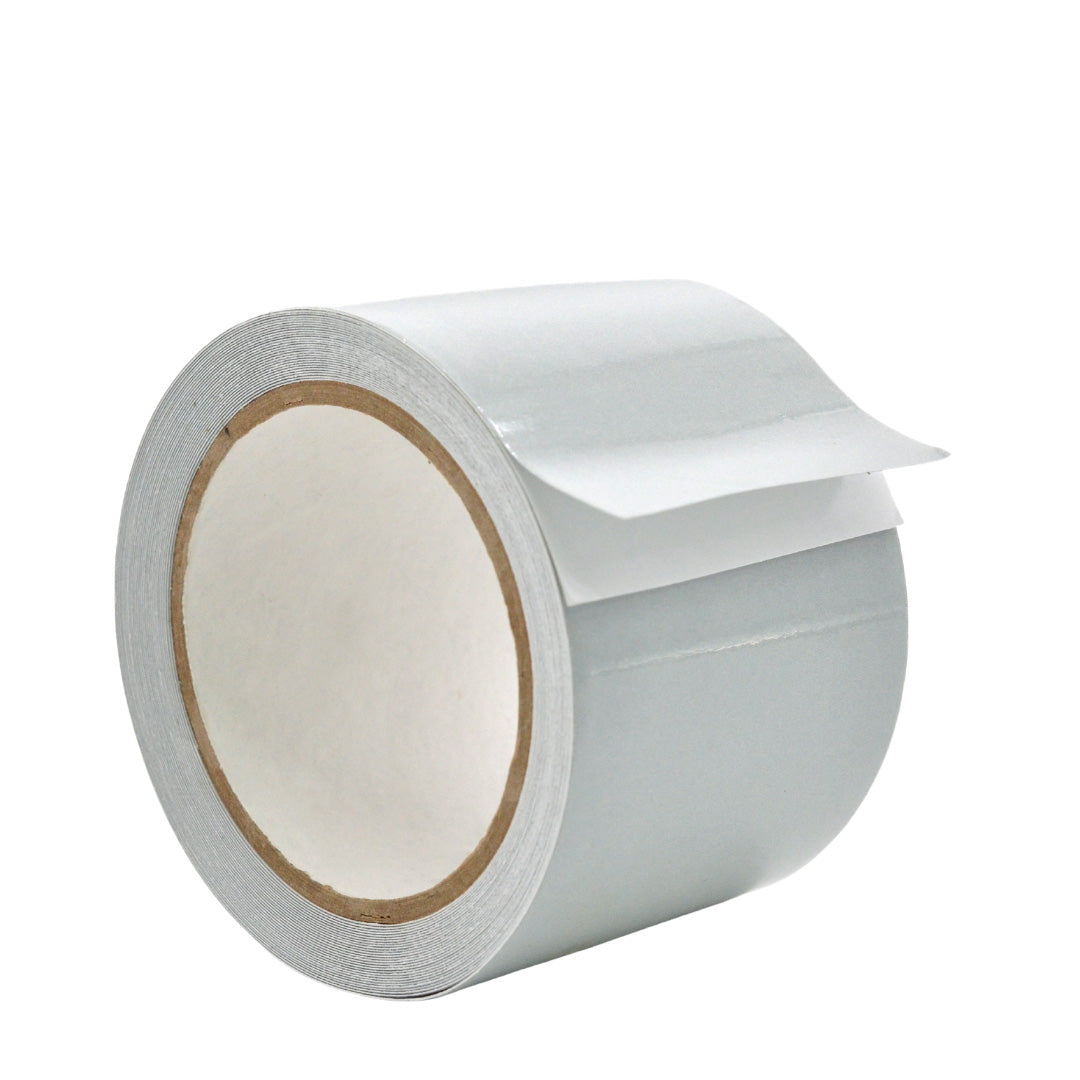

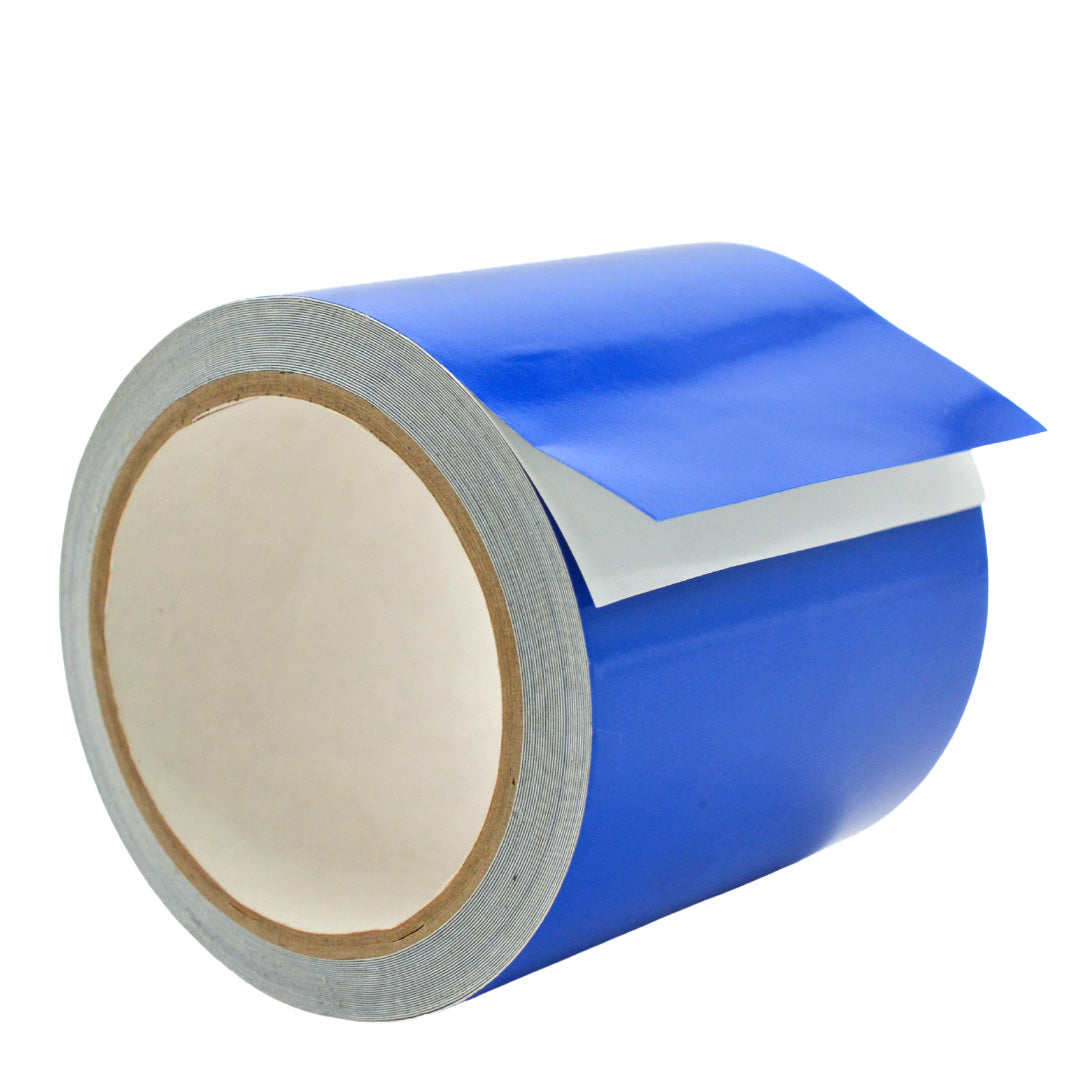

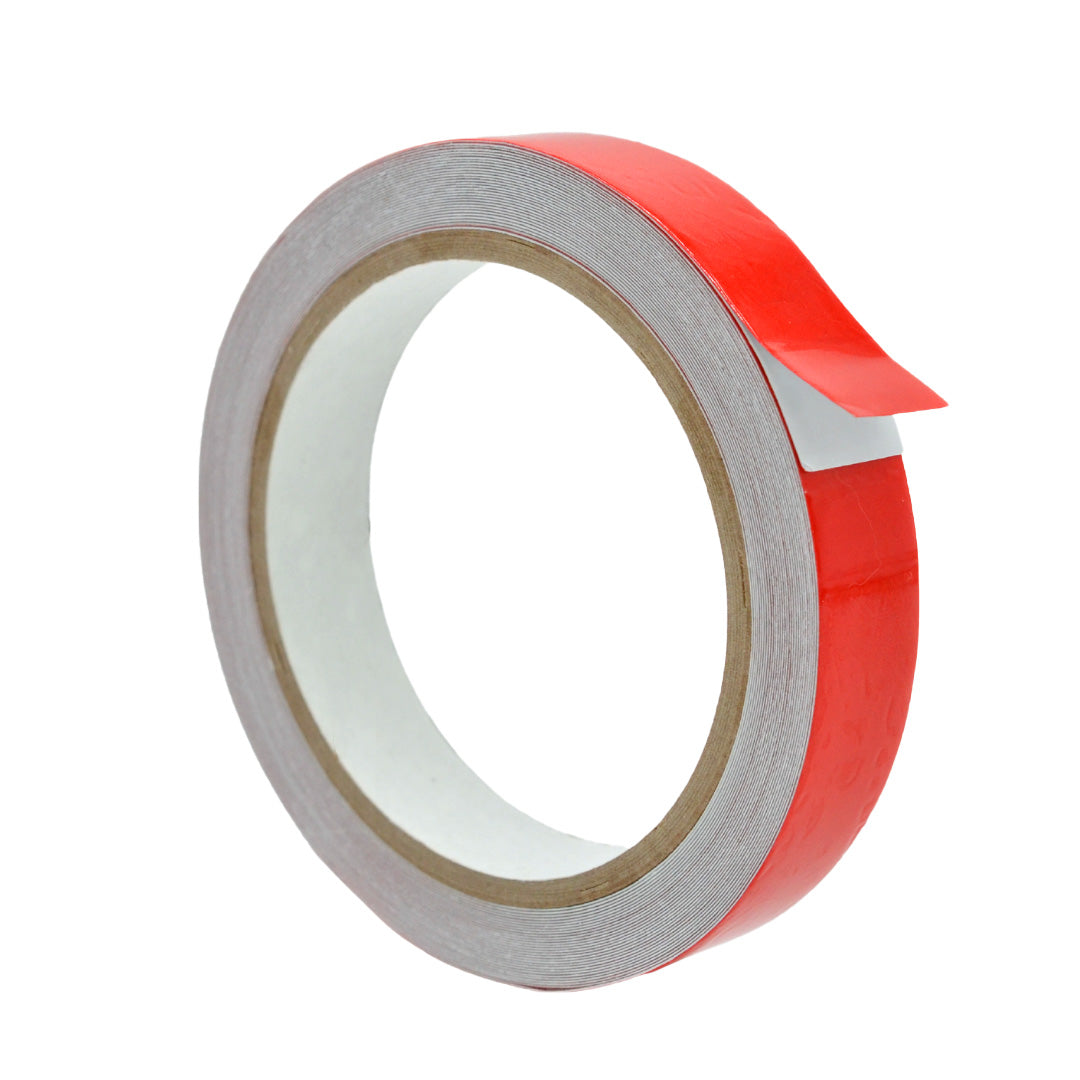

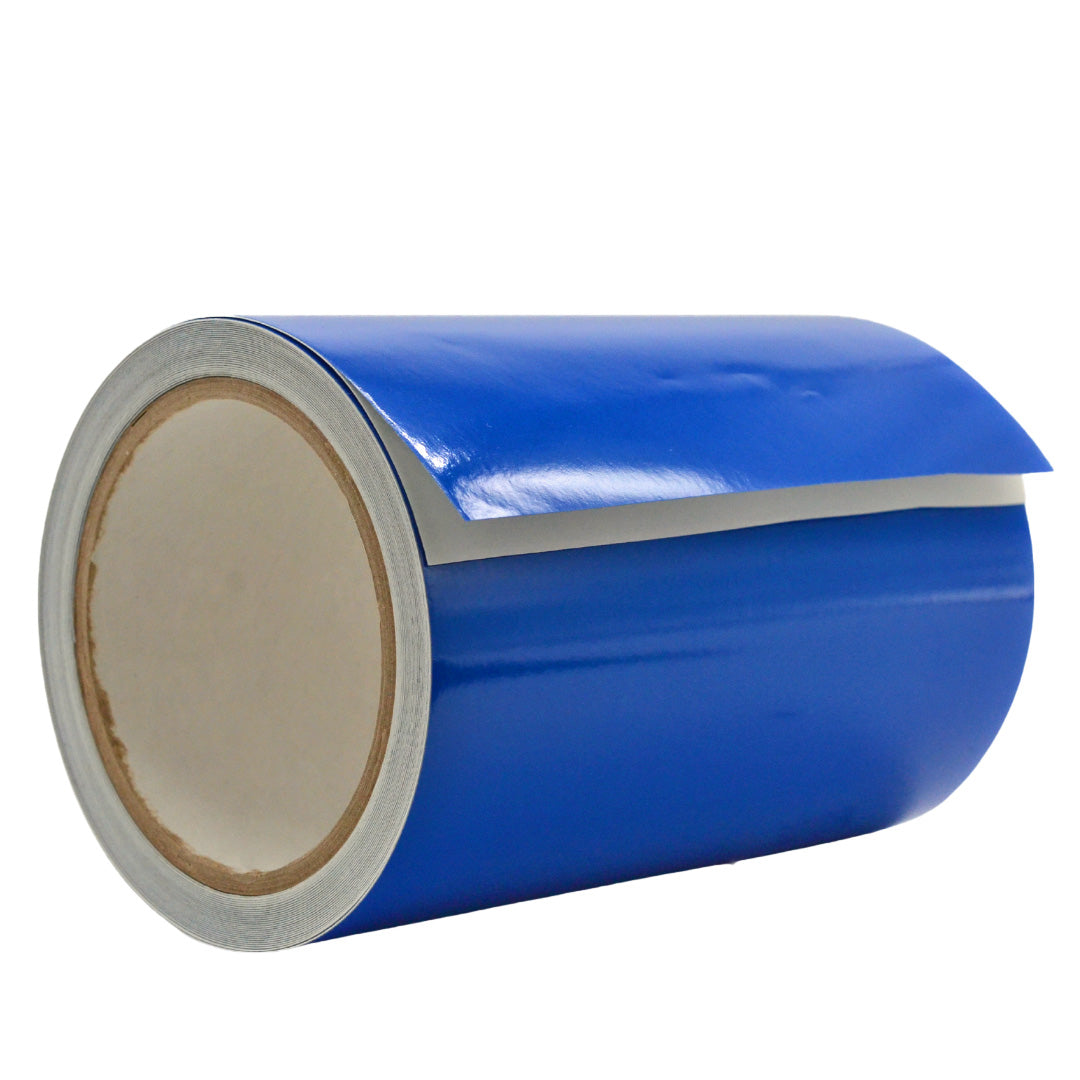

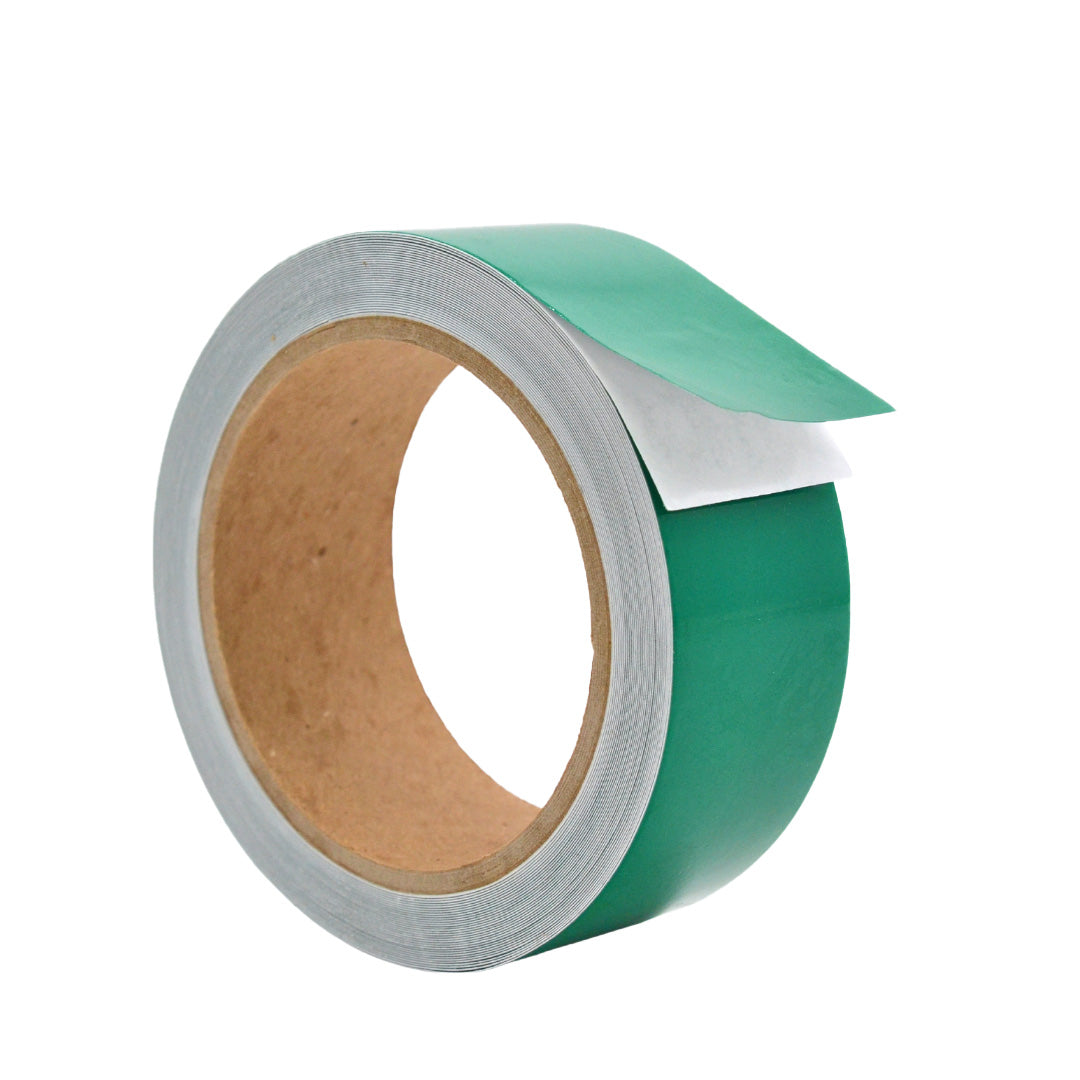

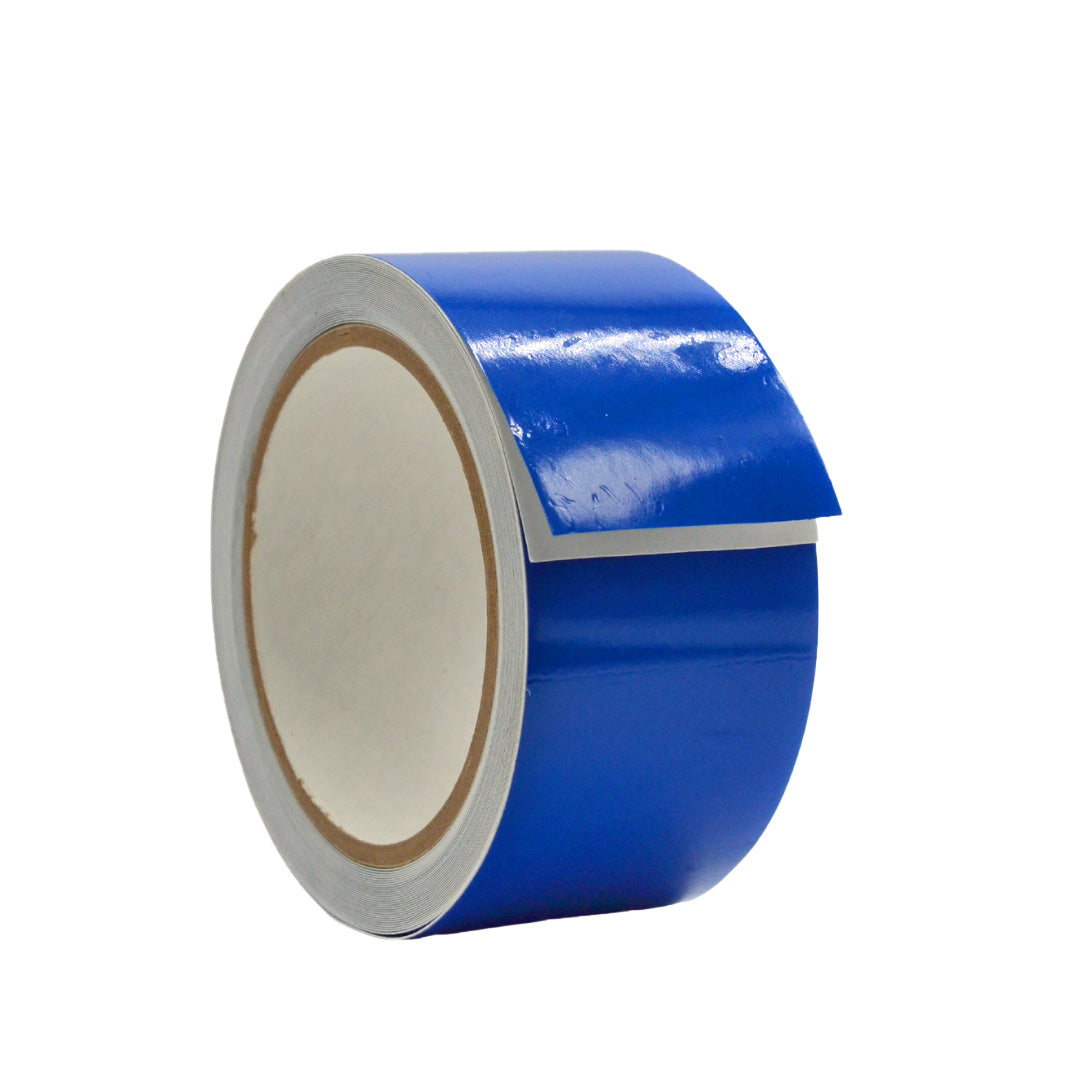

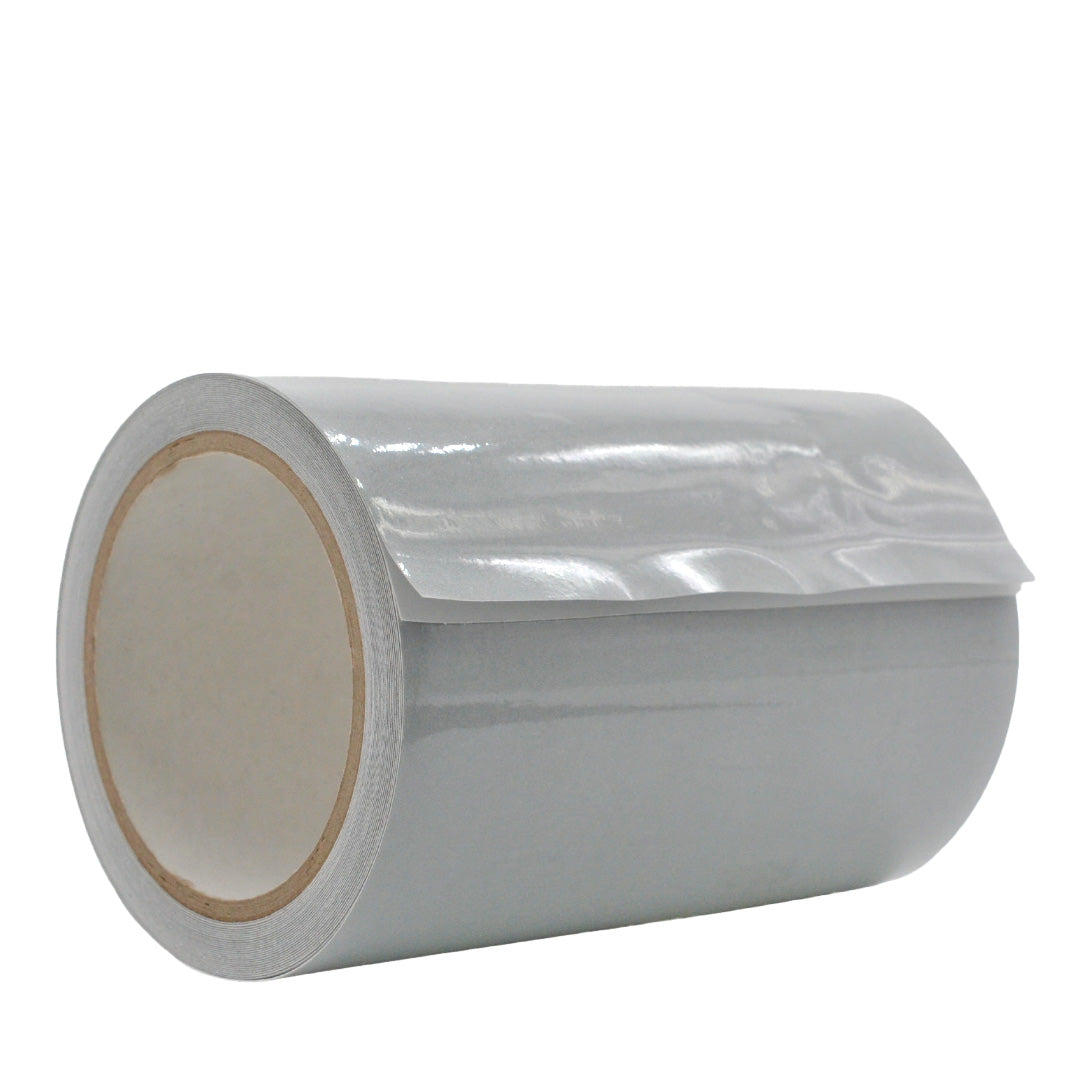

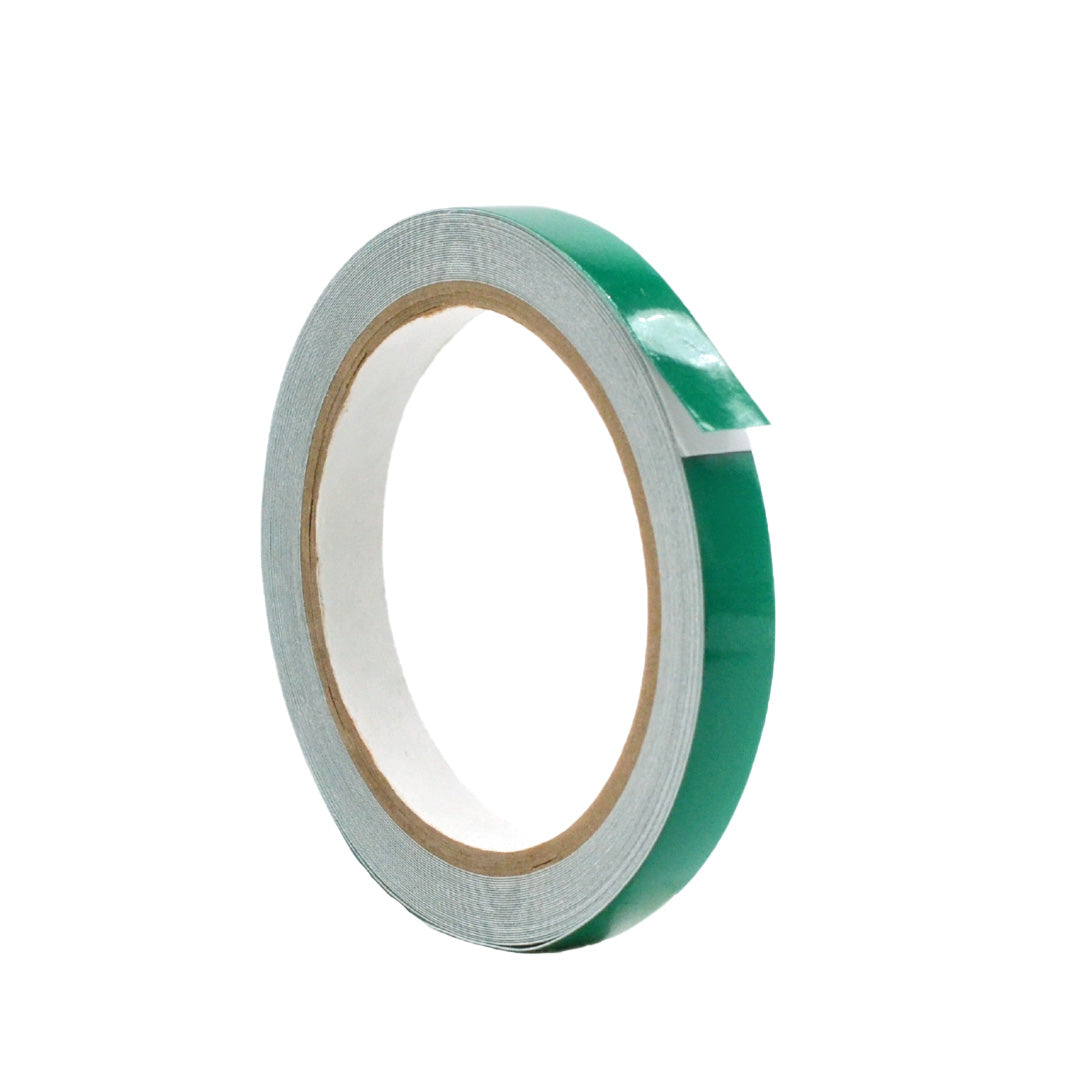

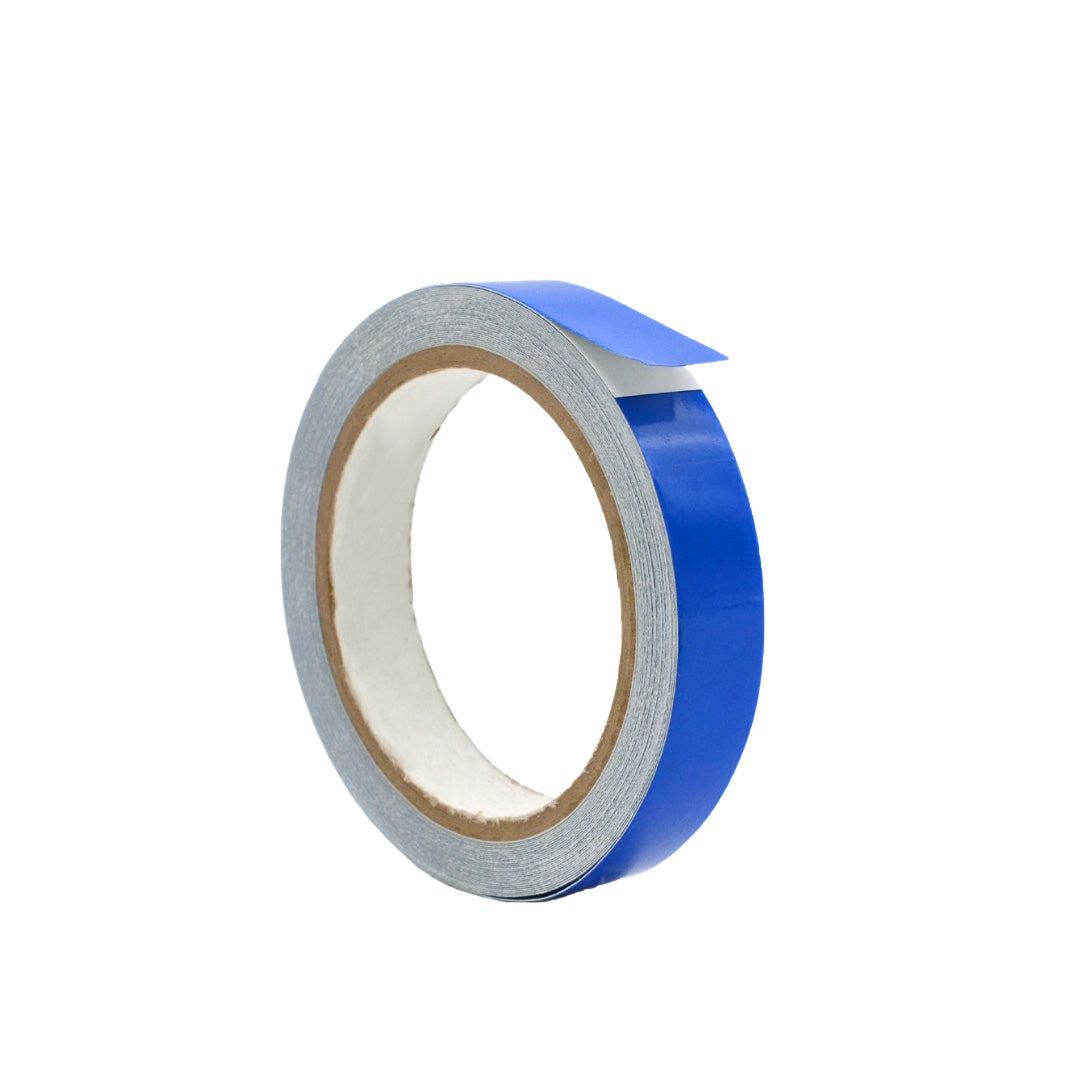

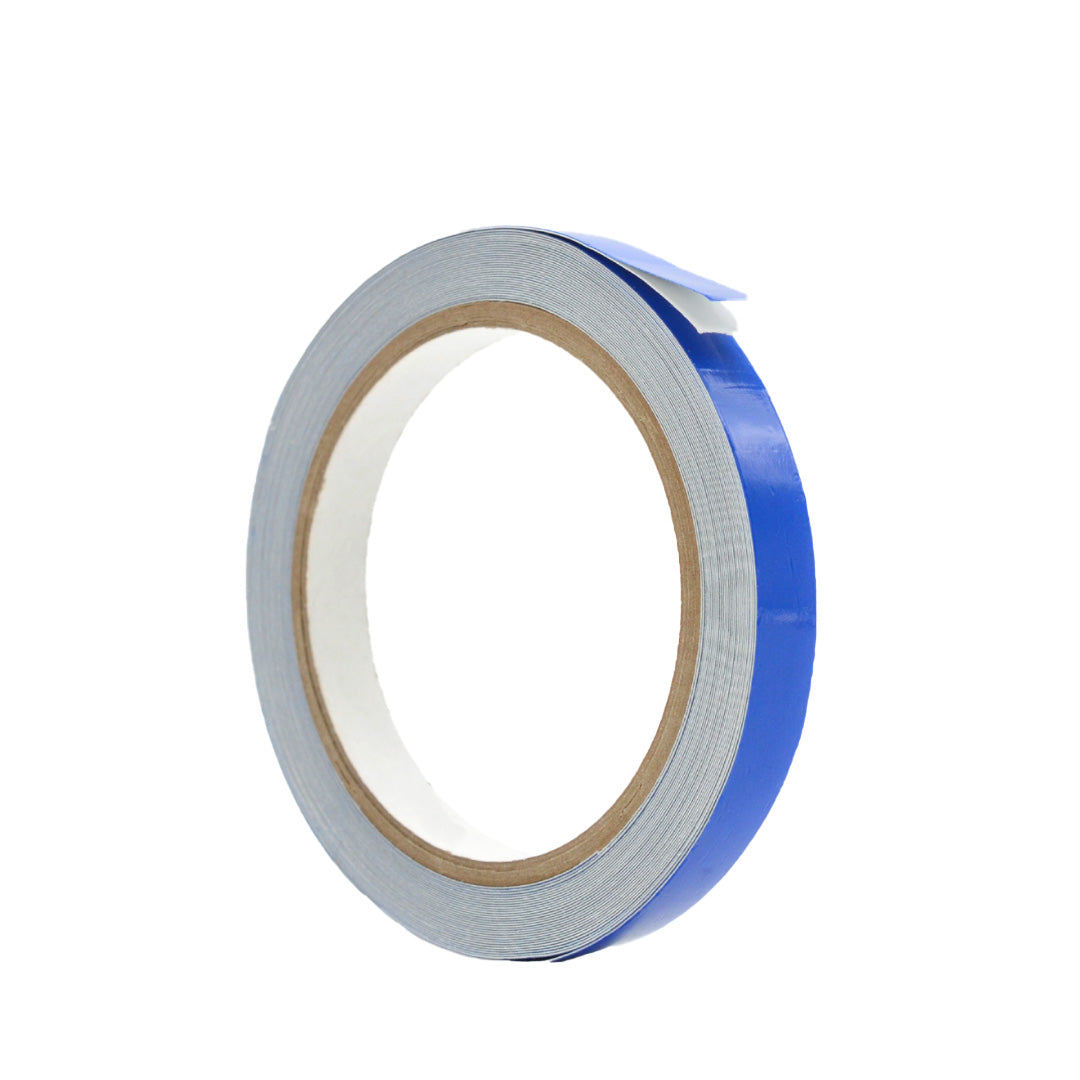

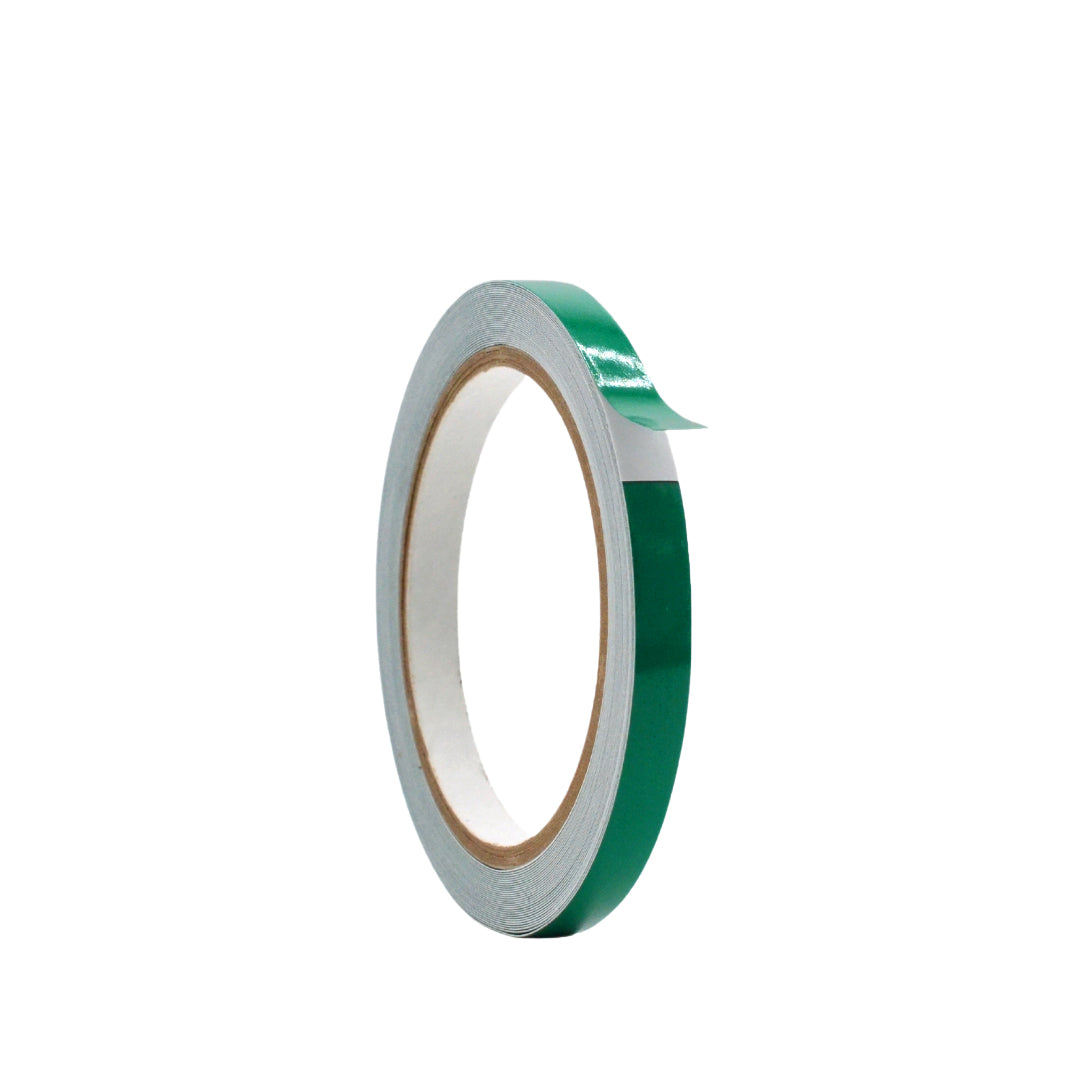

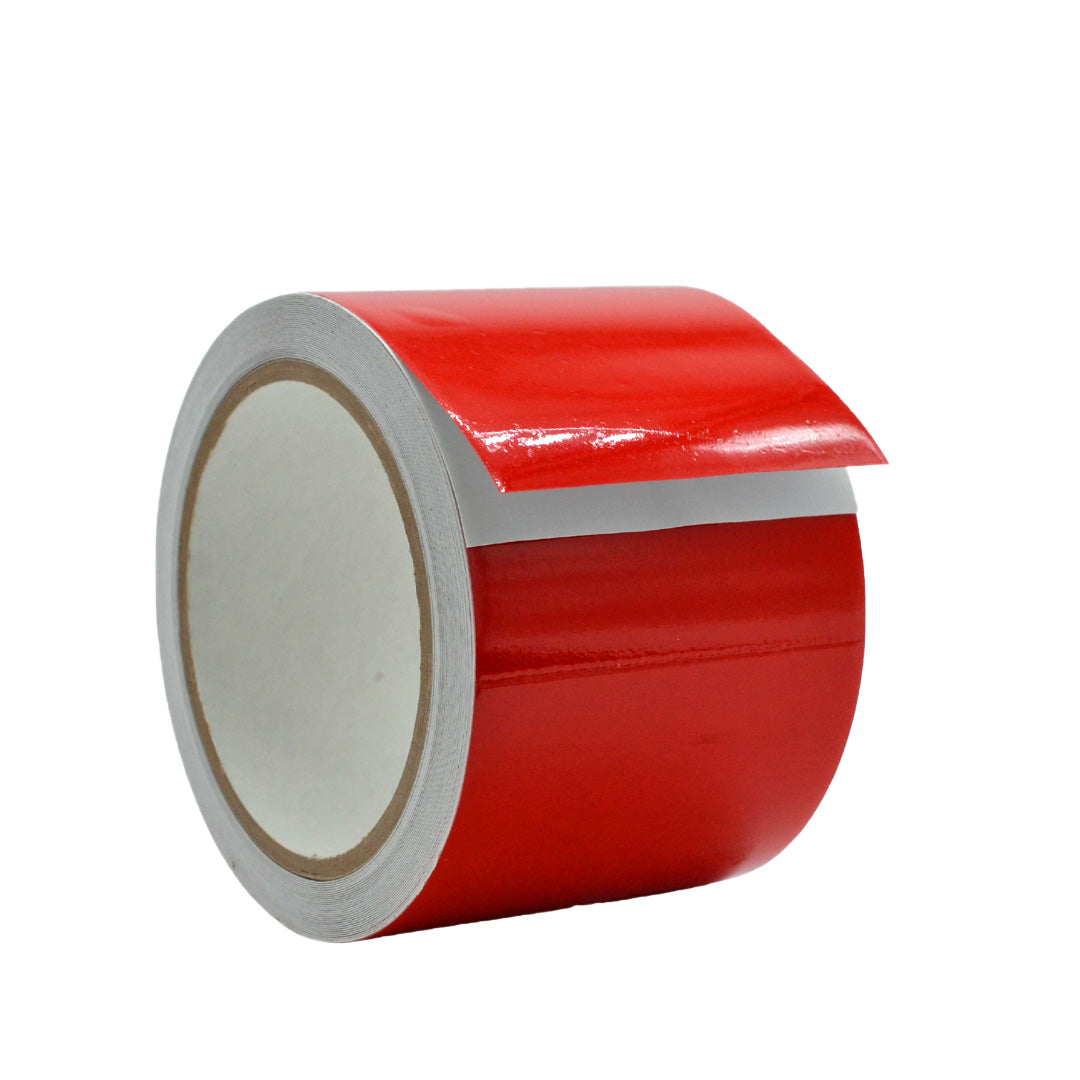

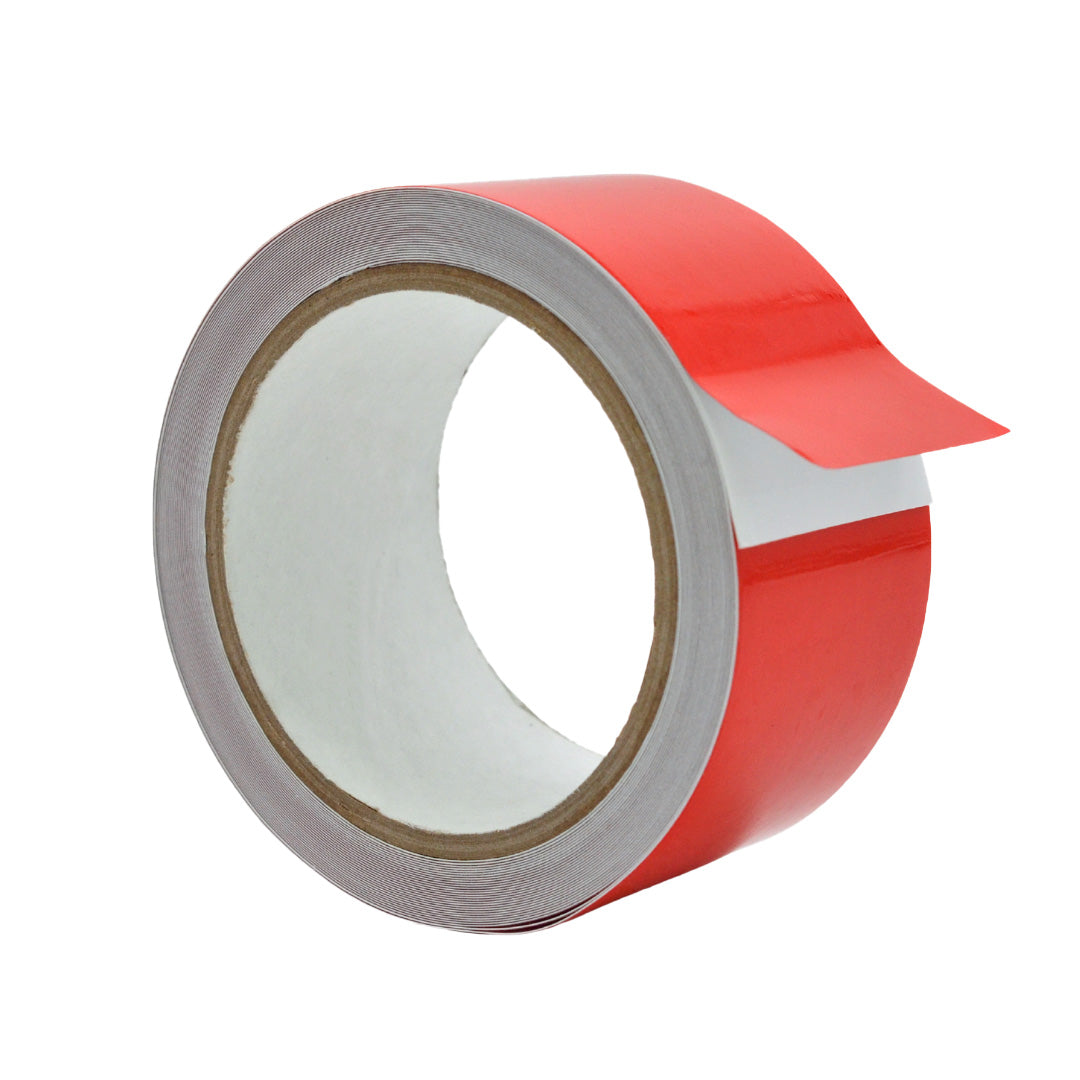

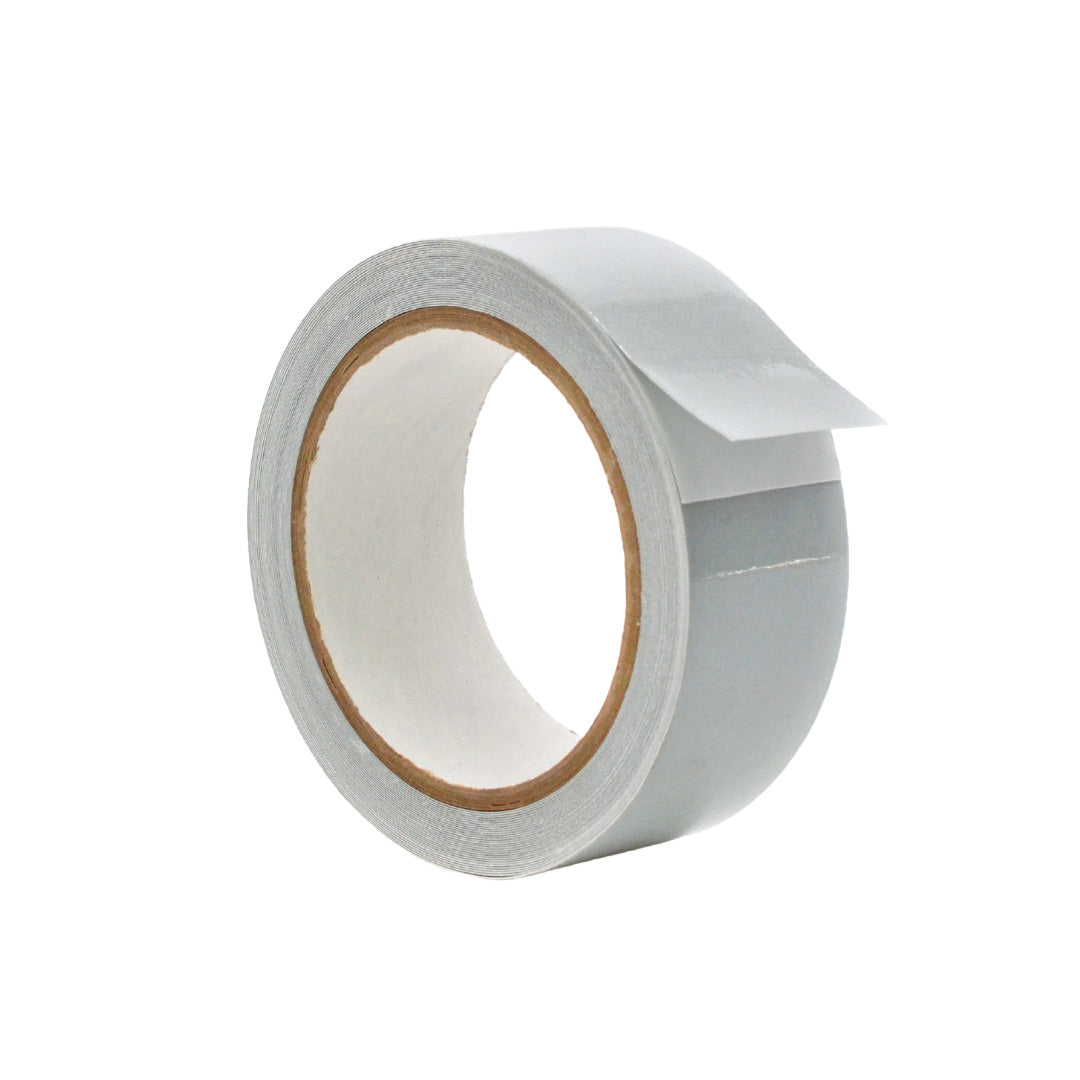

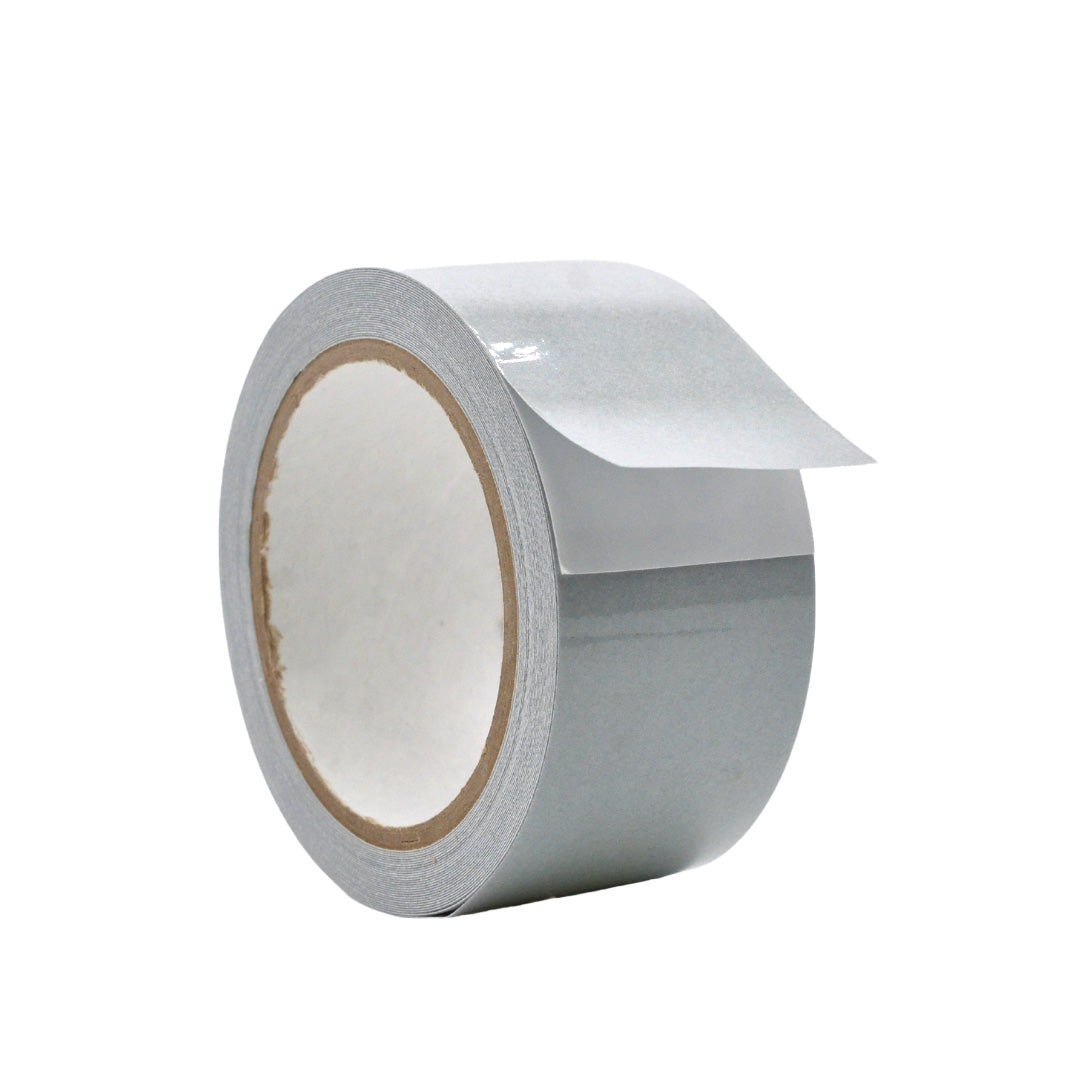

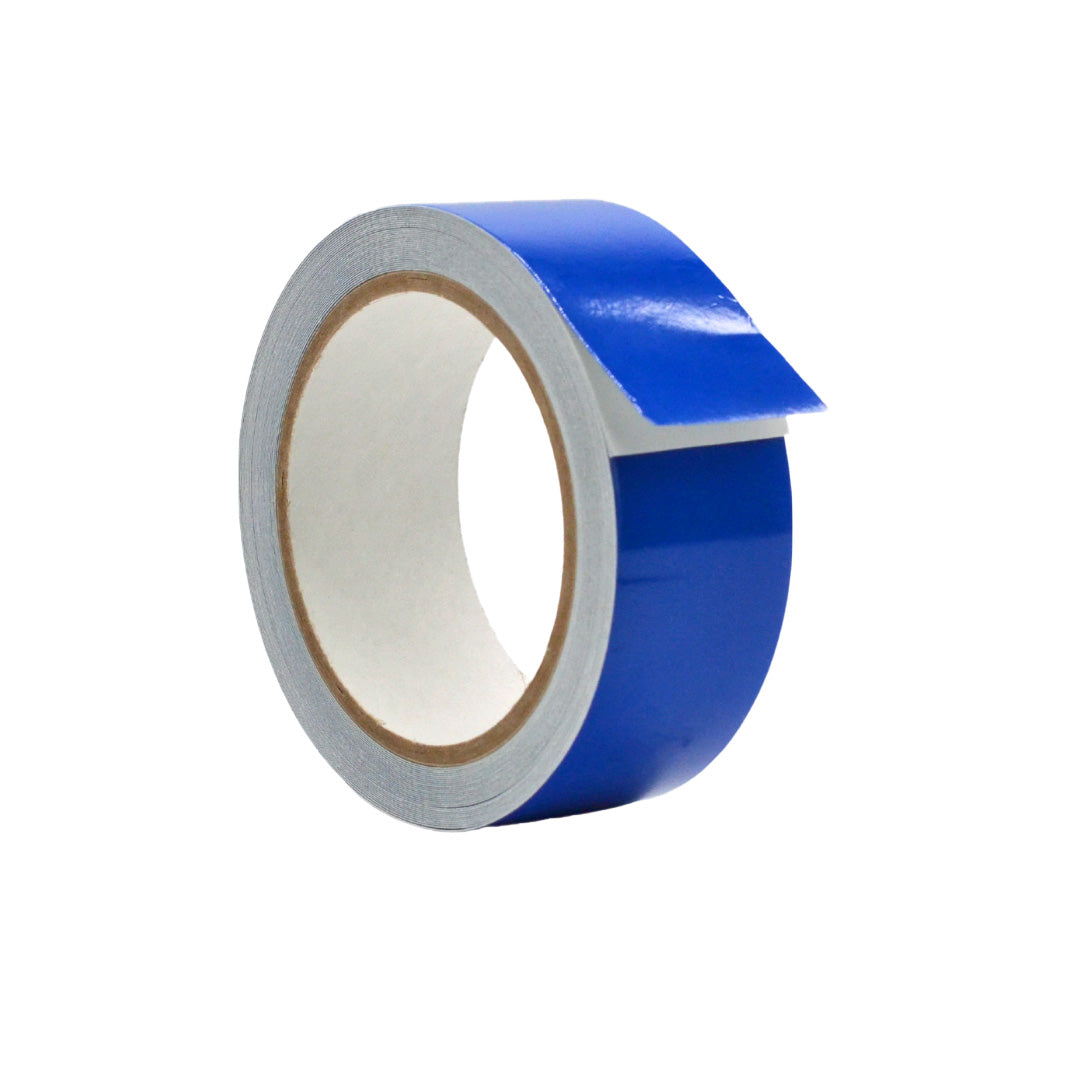

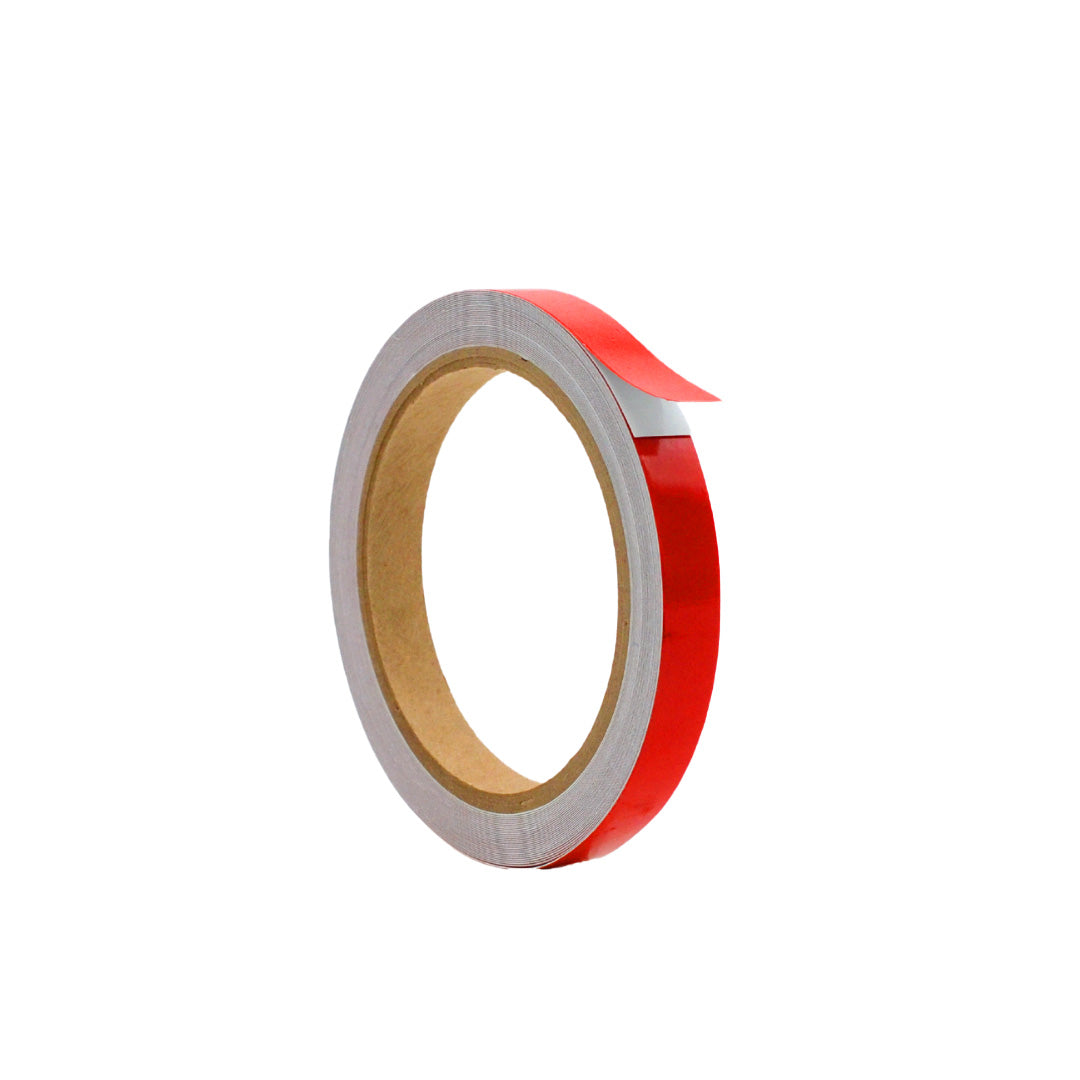

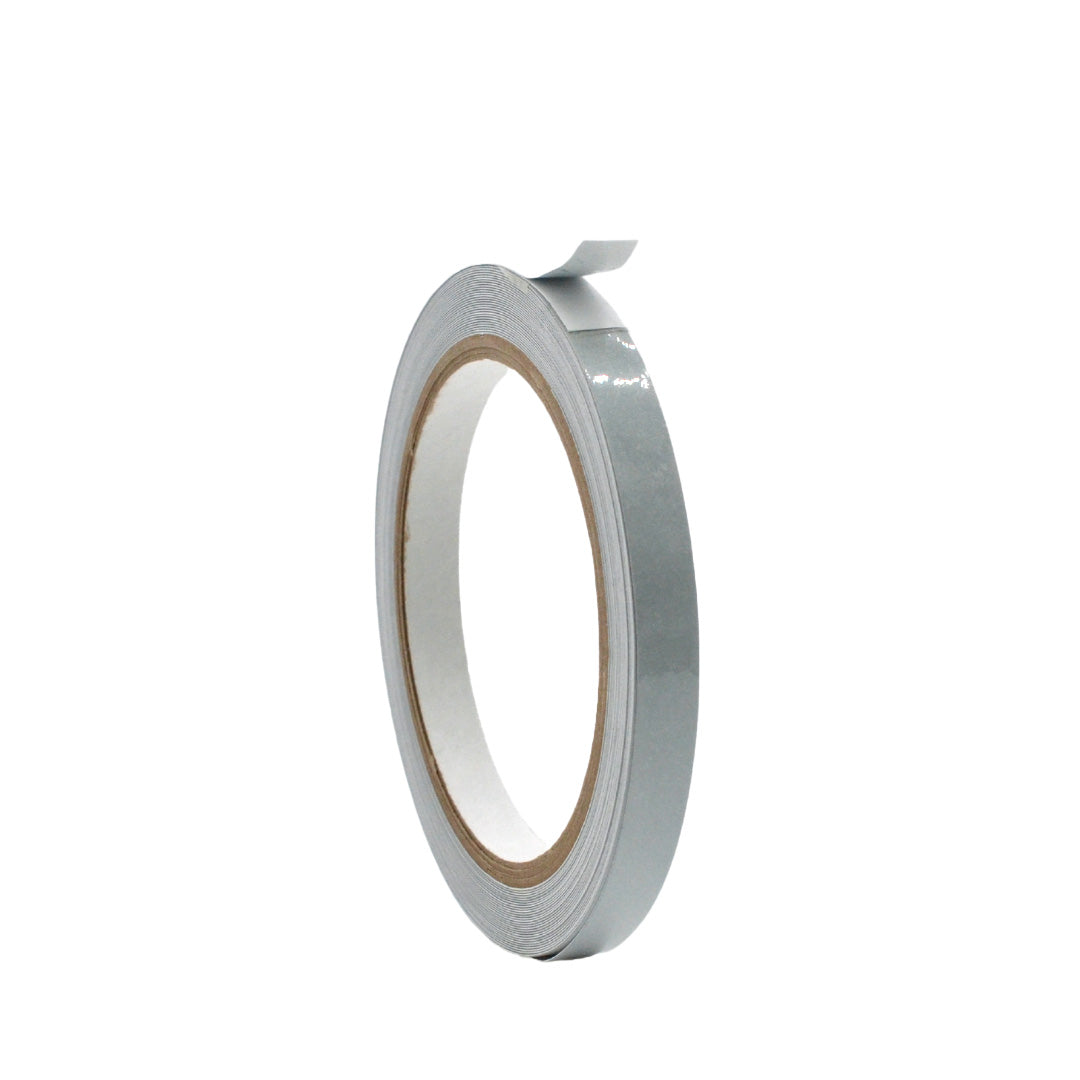

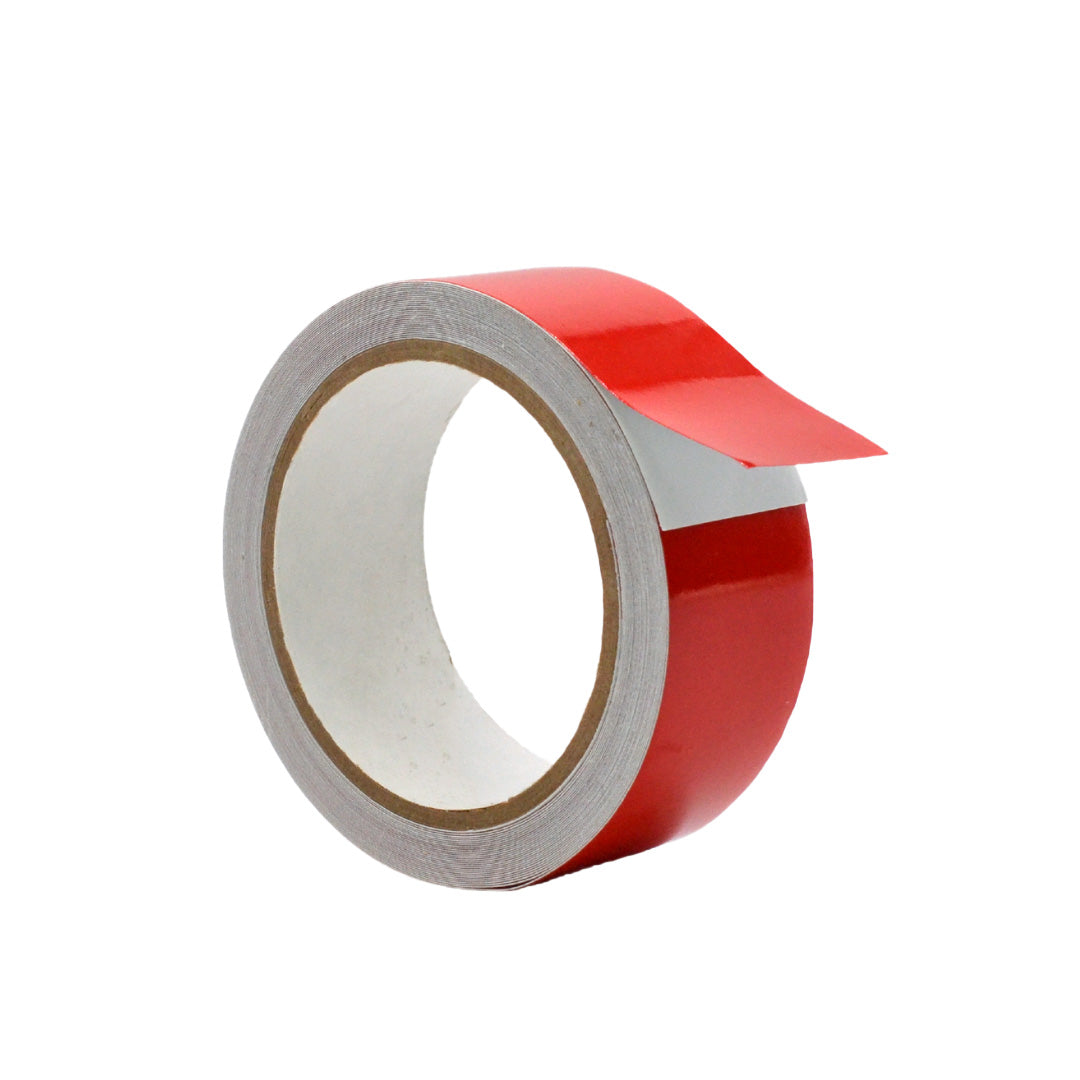

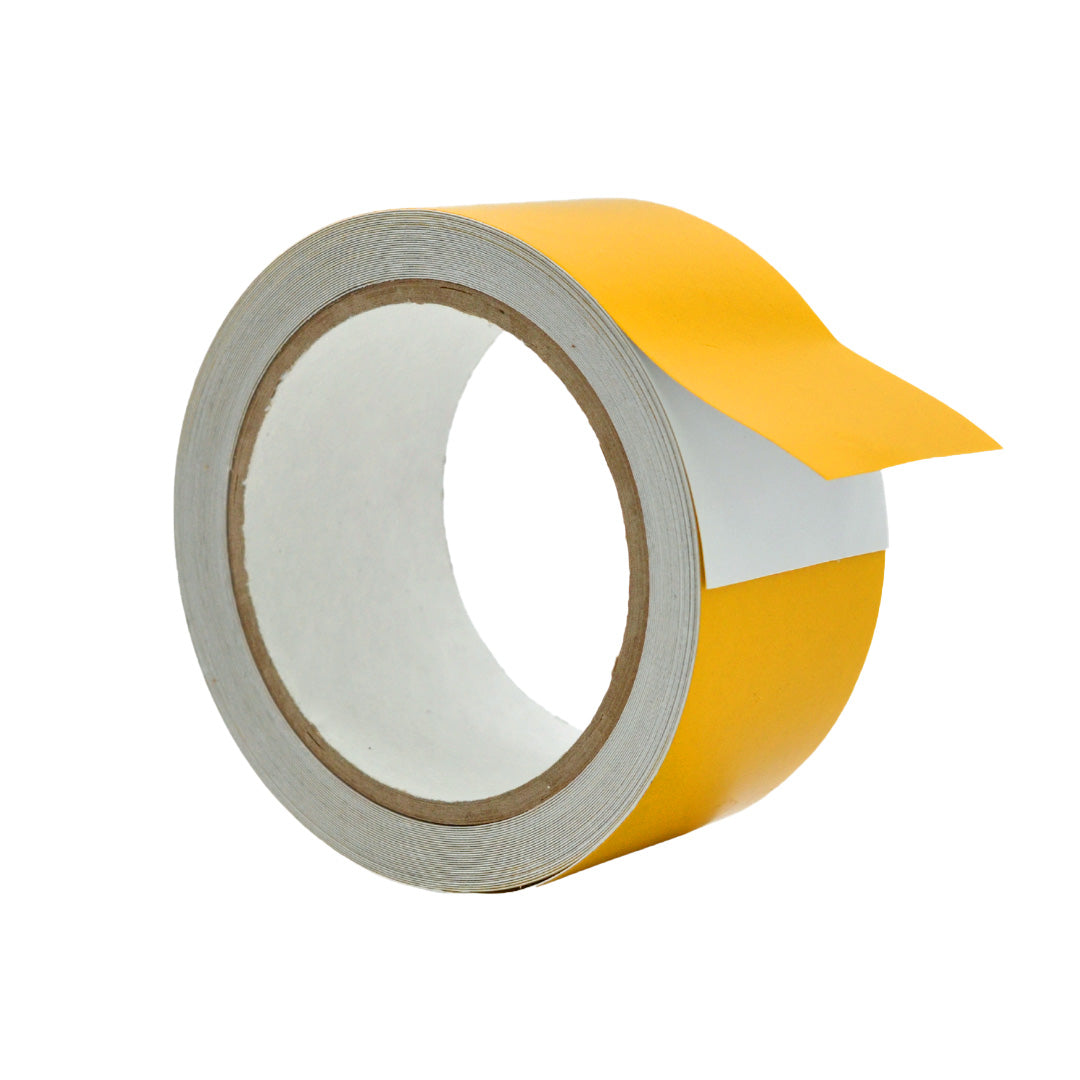

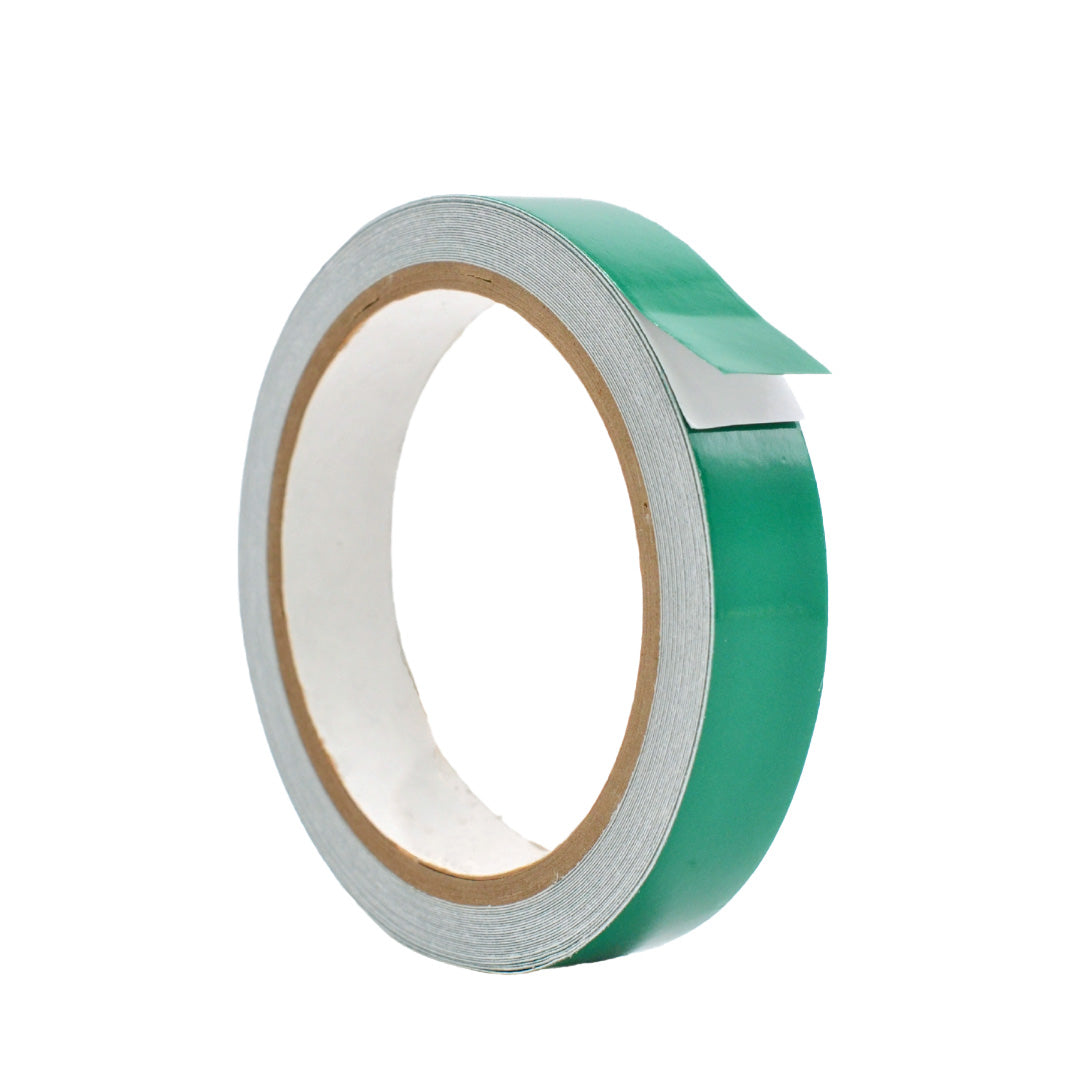

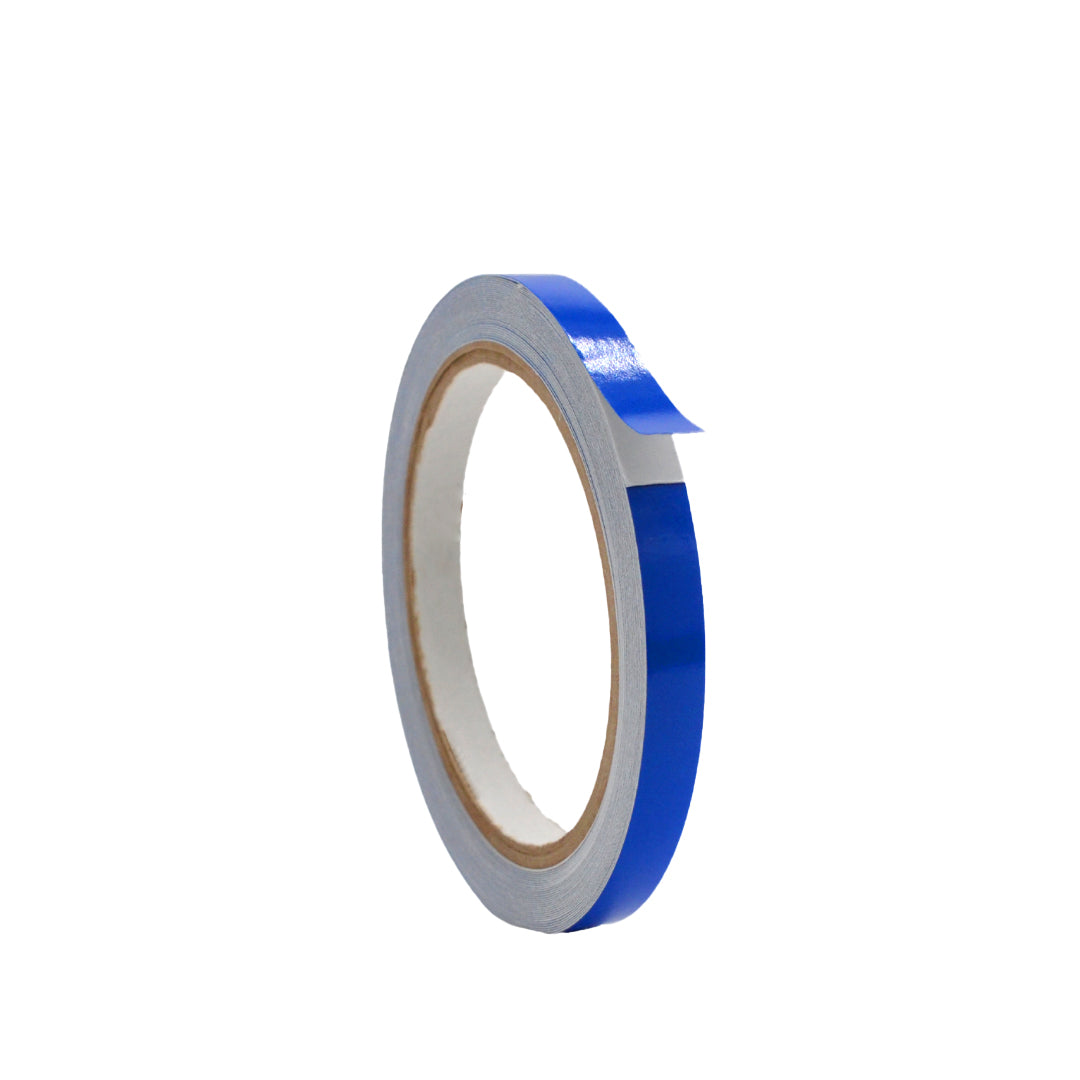

Photos of RTC5 are taken with a flash camera in order to show the reflectivity of the tape; the colors of the tape will be much darker if a high intensity light source (like the flash from a camera or car headlights) are not being directed at the tape. The colors in order of reflectivity are: white, yellow, orange, green, red, blue (white is around 15 times more reflective than blue).
Technical Properties
- Adhesive: Acrylic How are adhesives different?
- Carrier/Backing: enclosed lens retroreflective urethane film
- Thickness: 4.5 mils (carrier, adhesive) What is mil thickness?
- Adhesion: 60 ounces per inch (to stainless steel test panel)
- Tensile Strength: 26 pounds per inch (longitudinal)
- Application Temperature: 65°F (minimum)
- Service/Operating Temperature: -4°F to 140°F
- Core: 3" Diameter
Additional Information
Note: Specifications are those given by manufacturers and are not tested for accuracy.
