• Retroreflective Tape with Red & White High Reflectivity Stripes - 5-year Warranty
1 1
Technical Data Sheet SDS Product Literature

DOT-Compliant Red & White Reflective Tape | 5-Year Warranty

SKU WOD RT5DOT-S6-01000-36-50-RW

Sold by the case

$2,57455 /per case
$71.51 /per roll
36 ROLLS /per case
Size: 1 inch
Color: 6" Red/6" White
Type: Solid
Shipping calculated at checkout.
Online price reflects item cost only. Shipping or delivery charges may apply at checkout. Availability and pricing are subject to change.
Distributor Advantages
Order Free Sample
30 Days Return Policy
Call Us for Custom Sizes: +1 786 565 9858
In-store pickup available. Orders are typically ready in 4 hrs

🔹Product Description

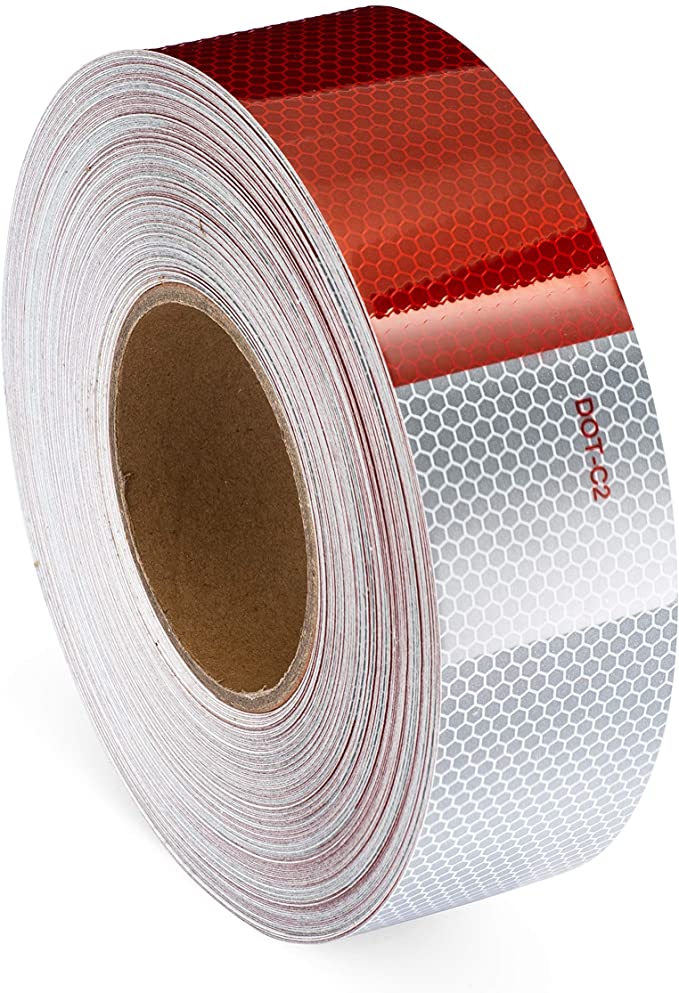

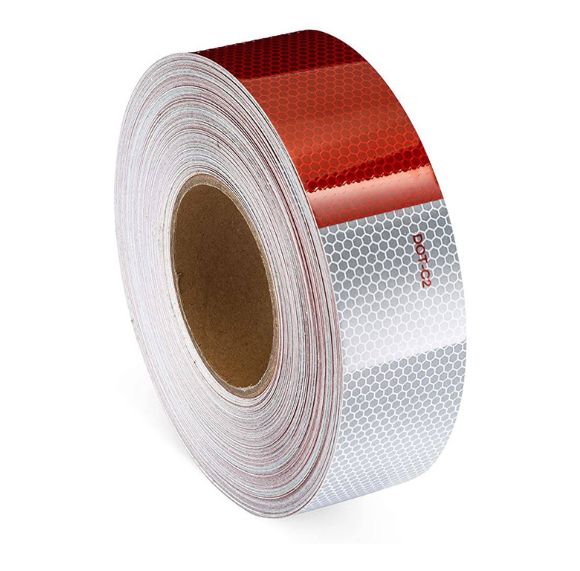

DOT-Compliant Red & White Reflective Tape | 5-Year Warranty (RT5DOT)

RT5DOT Daybright Microprismatic Tape is a rugged, high-visibility reflective tape designed for commercial and industrial vehicles. It meets DOT-C2 compliance standards and is available with either a 5-year or 10-year durability rating.

The tape features alternating red and white stripes in two pattern options:

• 6 Red / 6 White

• 11 Red / 7 White

🔹Key Features & Benefits

  • DOT-C2 Certified for legal use on commercial trucks and trailers
  • Long-Lasting: Choose from 5-year or 10-year durability options
  • Thin & Flexible (0.008) Easily applies to flat or curved surfaces
  • Impact-Resistant Maintains reflectivity even after collisions
  • High-Tack Adhesive Bonds strongly to metal, fiberglass, and composites
  • Solvent & Weather Resistant Resists fuel, water, and pressure washing
  • No Grid Lines Prevents water intrusion and adhesive failure
  • Super-Bright Reflects light at wide angles with ~1000 candlepower
  • Low Dirt Retention Smooth surface resists buildup better than thick tapes

Note: NHTSA conspicuity regulations (effective 12/1/93) mandate that all new trailers - 10,000 lbs GVW and 80" wide or larger, must be reflectorized with alternating red & white retroreflective sheeting on the sides, bottom of rear door, and ICC bar; and two pieces of white sheeting on the upper corners of the rear. Application Temperature: minimum 50°F.

🔹Applications

Perfect for marking the sides and rear of:

  • Semi-Trailers & Box Trucks
  • Tankers & Dump Trucks
  • Tow Trucks & Recovery Vehicles
  • Utility & Construction Vehicles
  • Step Vans, Refuse Haulers, Auto Carriers
  • Pickup Beds & Mobile Industrial Equipment
  • Emergency Response & Service Fleets

🔹Technical Properties

  • Adhesive: Acrylic
  • Carrier/Backing: Fully metalized, UV-stabilized polyester film
  • Release Liner: Paper
  • Thickness: 8 Mil (carrier, adhesive)
  • Application Temperature: 50°F (minimum)
  • Specification Met: ASTM D4956; LS300C; FP92; ASTM D523; ASTM E810; NHTSA 49 CFR, Part 571; DOT-C2 (applicable to 2" only); FMVSS 108; complies with European RoHS directive 2002/95/EC
  • Core: 3" Diameter

Note: Specifications are those given by manufacturers and are not tested for accuracy.
