🔹Product Description

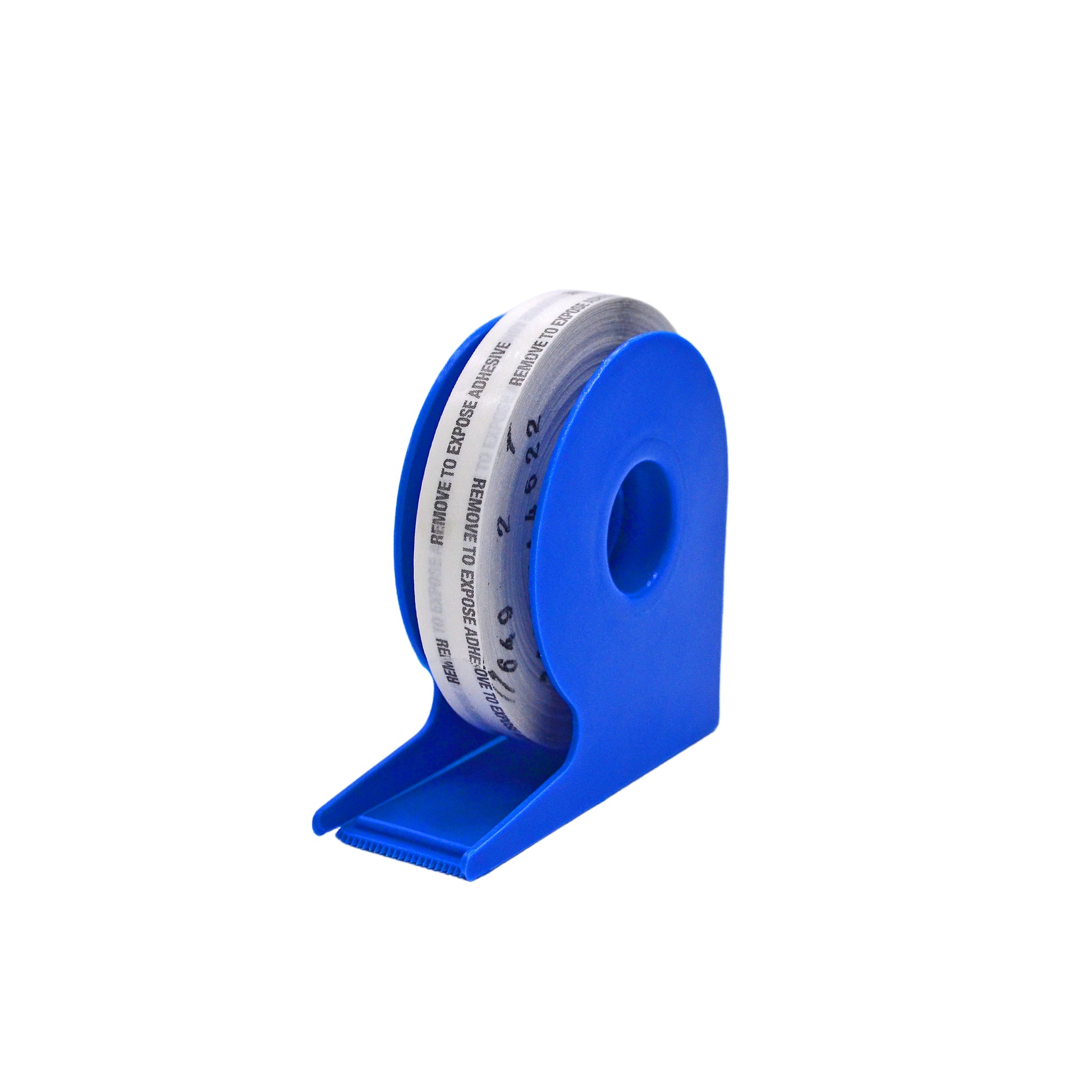

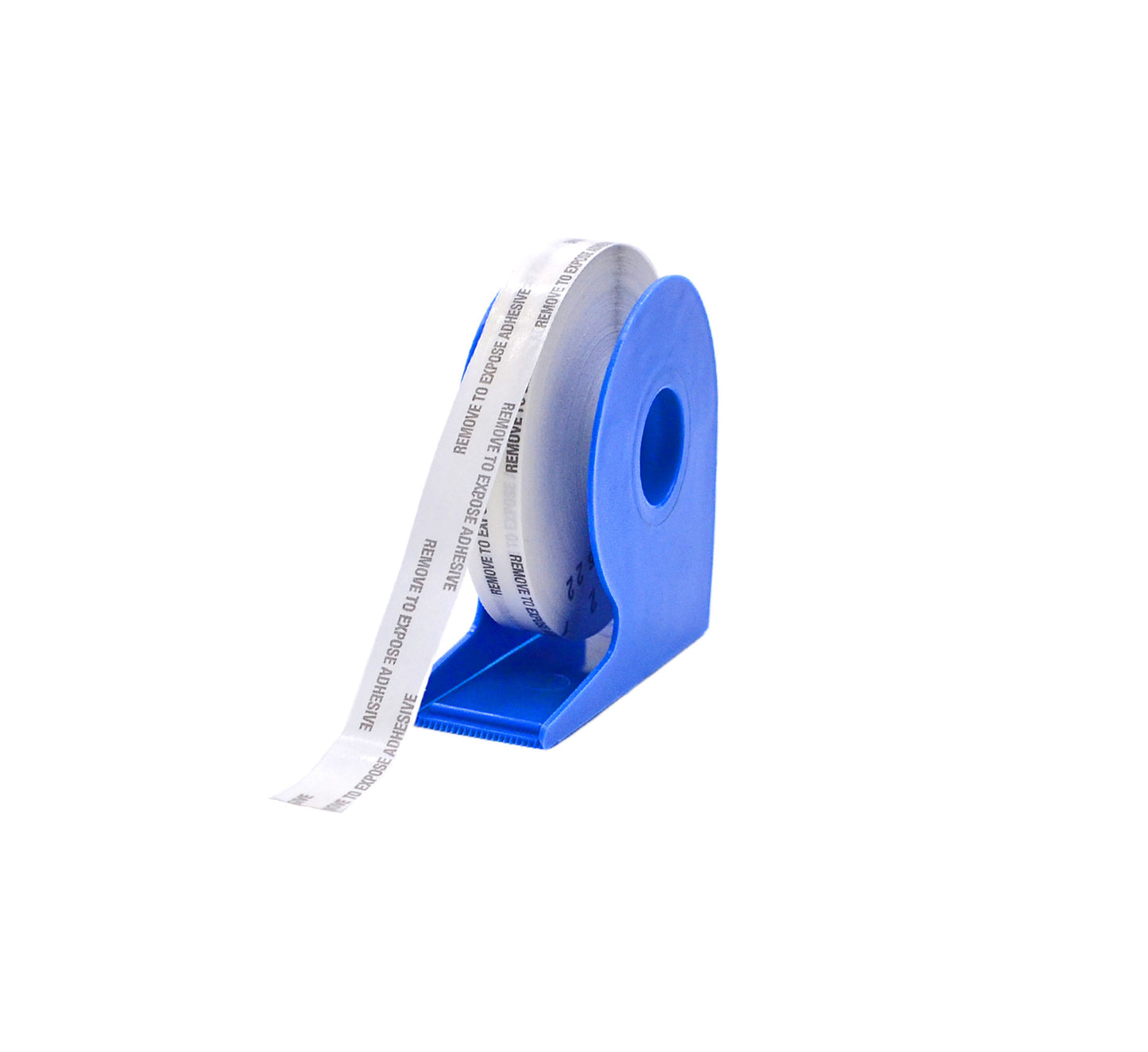

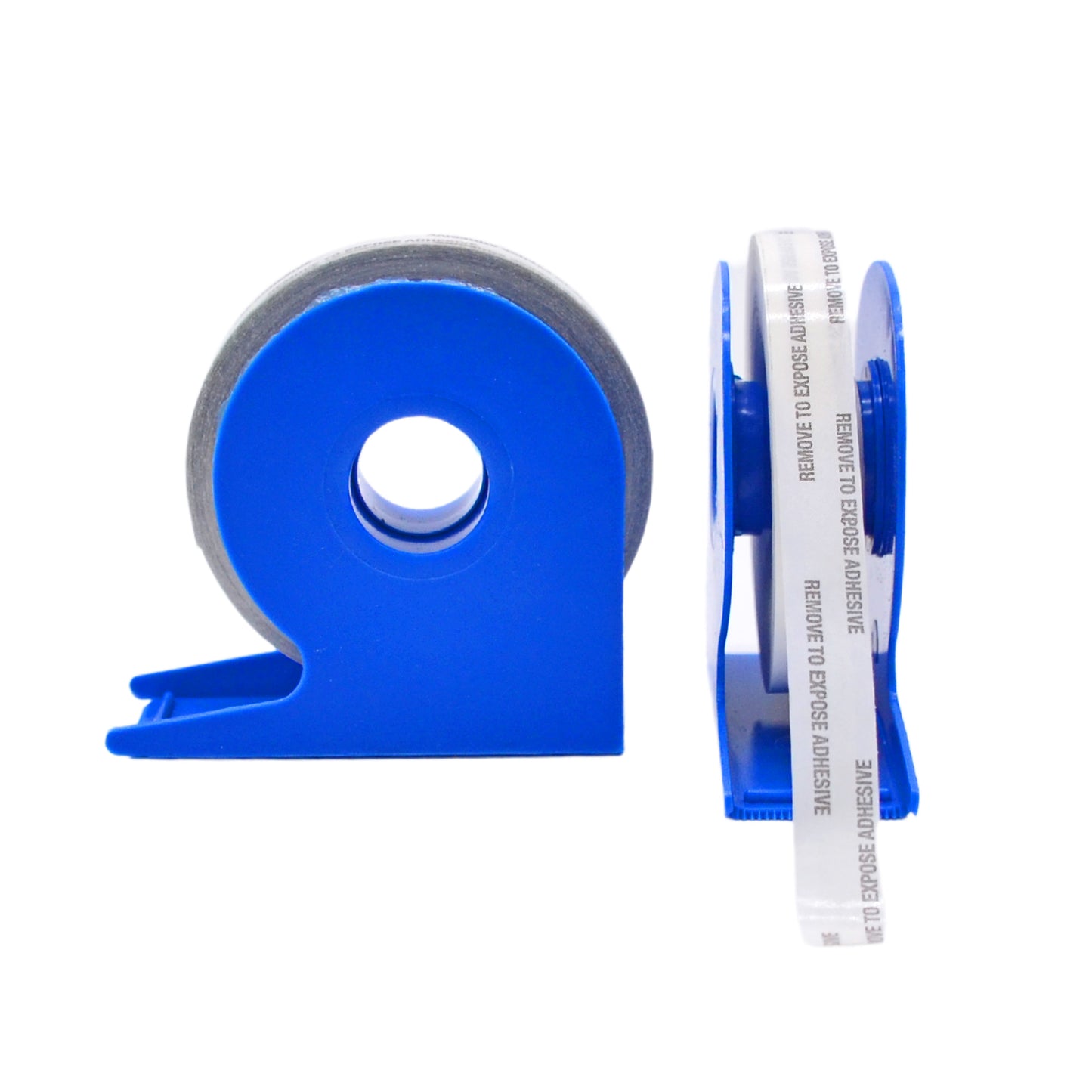

Double-Sided Permanent Transfer Tape w/Extended Liner (PTT-EL)
PTT-EL and PTT-EL-GSO are Double-Sided Permanent Transfer Tapes with Extended Liners designed for permanent bonding applications that require high initial tack, strong long-term adhesion, and easy liner removal. Made with an unsupported synthetic rubber adhesive on a 42 lb. silicone-coated Kraft release liner (red print), these tapes provide a reliable, permanent bond for mounting, labeling, packaging, and general assembly applications without adhesive bleed-through on paper stock.
Both products offer the same adhesive performance and technical properties. The difference is the winding direction:
- PTT-EL – Standard Wound: Unwinds in the standard direction for most manual and automated applications.
- PTT-EL-GSO – Reverse Wound: Unwinds in the opposite direction (Glue-Side Out) for equipment or processes that require reverse winding. The release liner is printed with “TO EXPOSE ADHESIVE REMOVE LINER.”
🔹Product Applications
- Point-of-purchase displays and signs
- Light to medium weight paper to paper attachments:
- Signs & posters
- Envelope sealing & direct mail pieces
- Paper web splicing
- Labels & business forms
- High speed presses & collators
- High speed presses & collators
- Spot & strip tape
🔹Technical Properties
- Adhesive: Rubber
- Carrier/Backing: N/A (Carrier-Free)
- Release Liner: 42# siliconized paper w/ finger-lift edge
- Thickness: 1 Mil (carrier, adhesive)
- Adhesion: 105 ounces per inch (to stainless steel test panel)
- Service/Operating Temperature: 0°F to 140°F
- Shear Strength (1000g): 48+ hours
- Loop Tack: 126 ounces per inch
- Core: 1" or 3" Diameter
Note: Specifications are those given by manufacturers and are not tested for accuracy.
