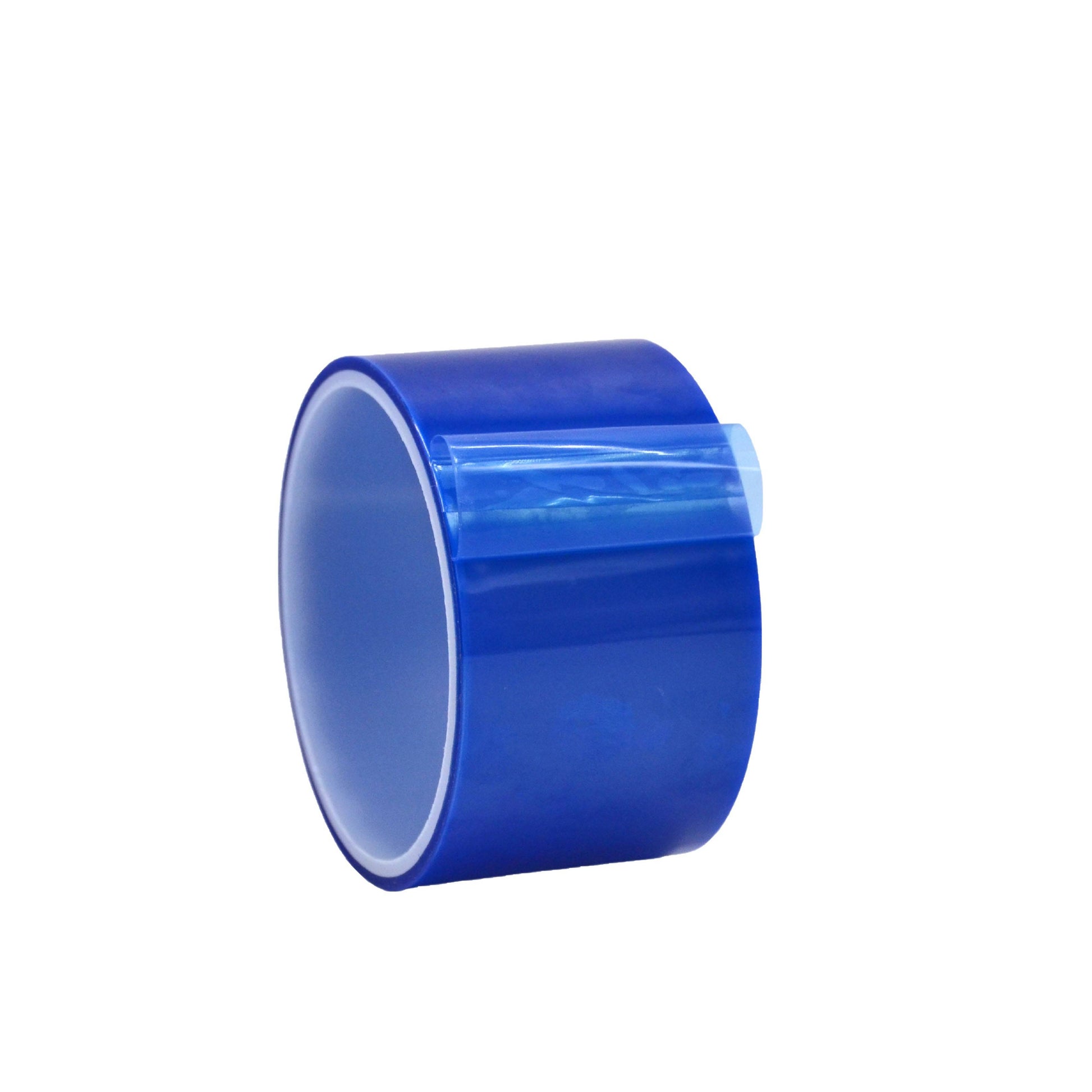

HIGH TEMPERATURE POLYESTER TAPE
Alternative to: Various industry standards such as 3M 8902, 8464; Ideal 9209, 9211, 9212, 9249; TLC 934; St. Gobain SP-2150, M830, M832; Scapa 572; Berry Plastics Polyken 781; Bondtec 293, and more.
Industrial Grade Polyester Card Splicing Tape & Printed Circuit Board Tape
PFT35BS is a 2 mil polyester film coated with a 1.5 mil residue-free silicone adhesive. It is one of the cleanest and strongest splicing tapes available with high tack and high adhesion. Good chemical and heat resistance. Bonds well to treated papers, films, foils, etc. Used for splicing siliconized papers, films, and non-woven materials in converting. Used for masking adhesive seams in metal bonding processes.
Product Applications
- Used for component packaging & electrical insulation, edge reinforcement on books, webs, and more
- Used for masking adhesive seams in metal bonding processes
- Protects surfaces from splashes and chemical fumes in tin/lead stripping and gold tab plating.
- suitable for photo processing chemistry, acids, oils, solvents, aging, water immersion, and staining.
- For splicing siliconized papers, films, and non-woven materials in converting.
Technical Properties
- Adhesive: Fully cured silicone
- Carrier/Backing: Polyester (PET) film
- Thickness: 3.5 mils (carrier, adhesive)
- Adhesion: 35 ounces per inch (to stainless steel test panel)
- Tensile Strength: 44 pounds per inch (longitudinal)
- Elongation: 110%
- Dielectric Strength: 6,000 volts
- Service/Operating Temperature: -100°F to 350°F
- Max Service/Operating Temperature (45 min.): 225°C (437°F)
- Specification Met: UL510 Class B (130°C / 266°F)
- Core: 3" Diameter
Note: Specifications are those given by manufacturers and are not tested for accuracy.
