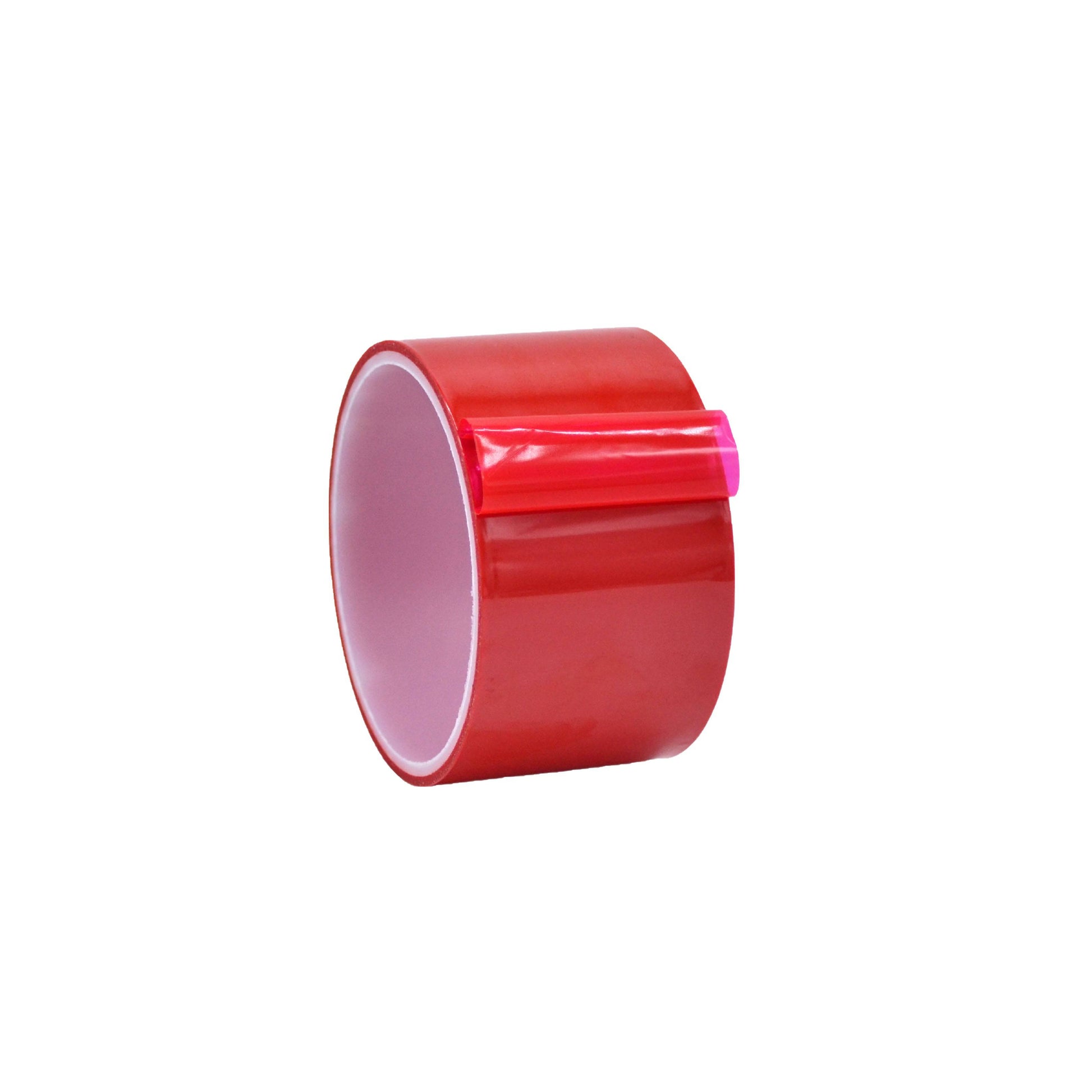

HIGH TEMPERATURE POLYESTER TAPE
Alternative to: Various industry standards such as Uline S-; Ideal 9111; Scapa 581; Permacel P-377; St. Gobain M741; 3M 8951; Bondtec 280; Specialty Tape S945, and more.
Engineering Grade Plating Tape, Polyester Splicing & Printed Circuit Board Tape
PFT30RS is a 1 mil polyester film with 2 mils of silicone adhesive. Resists fumes and chemicals, and leaves minimum residue on removal. Allows visibility of circuitry after masking. The film will not break or split during application or removal. A protective tape designed to perform well in all phases of masking operations during printed circuit board production. Engineering-grade plating tape. Protects surfaces from splashes and chemical fumes in tin/lead stripping and gold tab plating. Suitable for painting. Can be used for the splicing of certain silicone-coated papers and films.
Product Applications
- Used for component packaging & electrical insulation, edge reinforcement on books, webs, and more
- Masking operations during printed circuit board production
- Protects surfaces from splashes and chemical fumes in tin/lead stripping and gold tab plating.
Technical Properties
- Adhesive: Silicone
- Carrier/Backing: Polyester (PET) film
- Thickness: 3 mils (carrier, adhesive)
- Adhesion: 30 ounces per inch (to stainless steel test panel)
- Tensile Strength: 24 pounds per inch (longitudinal)
- Elongation: 100%
- Dielectric Strength: 5,500 volts
- Service/Operating Temperature: -100°F to 350°F
- Specification Met: UL510 Class B (130°C / 266°F)
- Core: 3" Diameter
Additional Information
Note: Item is stocked in 144yds. Call or email us now for Details!
Note: Specifications are those given by manufacturers and are not tested for accuracy.
