HIGH TEMPERATURE POLYESTER TAPE
Alternative to: Various industry standards such as 3M 8911; TLC CT929; Permacel P-904; Saint Gobain M52; Bondtec 289; Specialty Tape S945, and more.
Polyester Splicing & Printed Circuit Board Tape

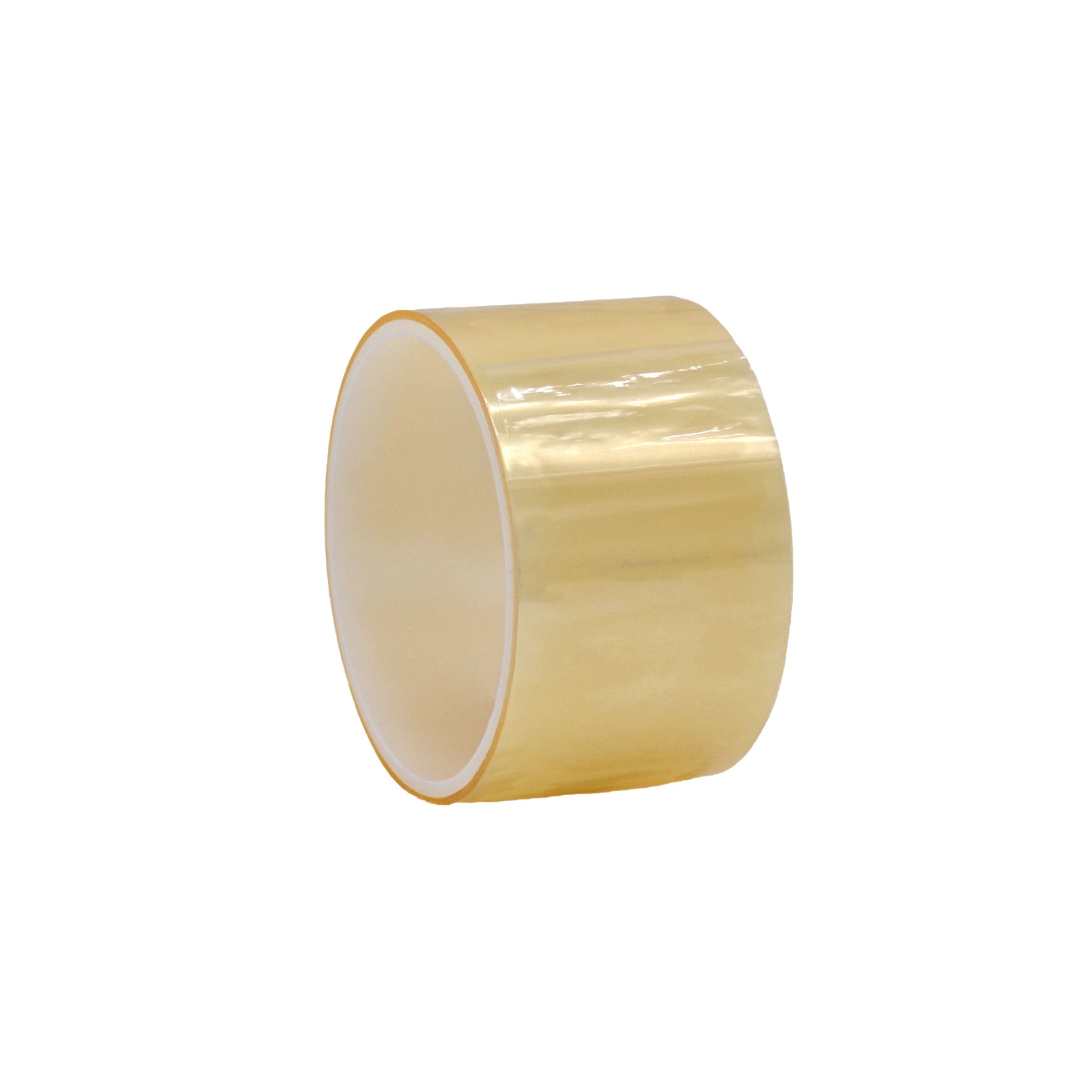

PFT25CS is a 1 mil polyester film with 1.5 mils of electrical grade silicone adhesive. Designed to be fully stable electrically and mechanically at operating temperatures up to 350°F. The adhesive is cured to provide maximum resistance to chemicals and leaves no residue during masking or holding applications. Excellent resistance to abrasives, acids, oils, aging, staining, and water immersion. Used for splicing silicone-coated paper and films. Also used as outer wrap on coils, capacitors, motors, and transformers, and for masking in electroplating, anodizing, and PC boards.
Product Applications
- Used for splicing silicone-coated paper and films
- Used as an outer wrap on coils, capacitors, motors, and transformers
- Masking in electroplating, anodizing, and PC boards.
Technical Properties
- Adhesive: Silicone
- Carrier/Backing: polyester (PET) film
- Thickness: 2.5 mils (carrier, adhesive)
- Adhesion: 27 ounces per inch (to stainless steel test panel)
- Tensile Strength: 25 pounds per inch (longitudinal)
- Dielectric Strength: 5,500 volts
- Service/Operating Temperature: -100°F to 350°F
- Specification Met: UL510 Class B (130°C / 266°F)
- Electrolytic corrosion factor: 1.10
- Elongation: 100%
- Core: 3" Diameter
Note: Specifications are those given by manufacturers and are not tested for accuracy.
