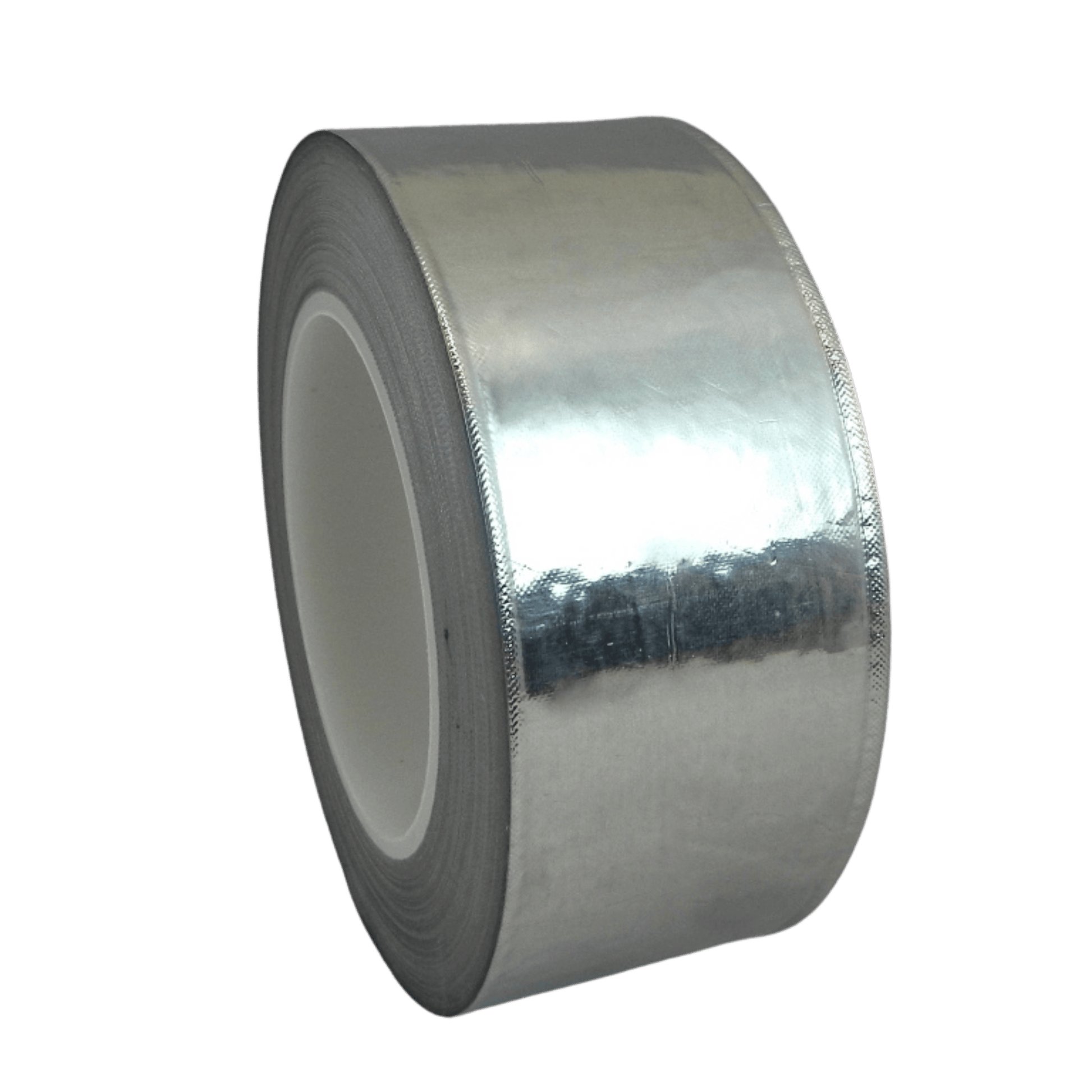

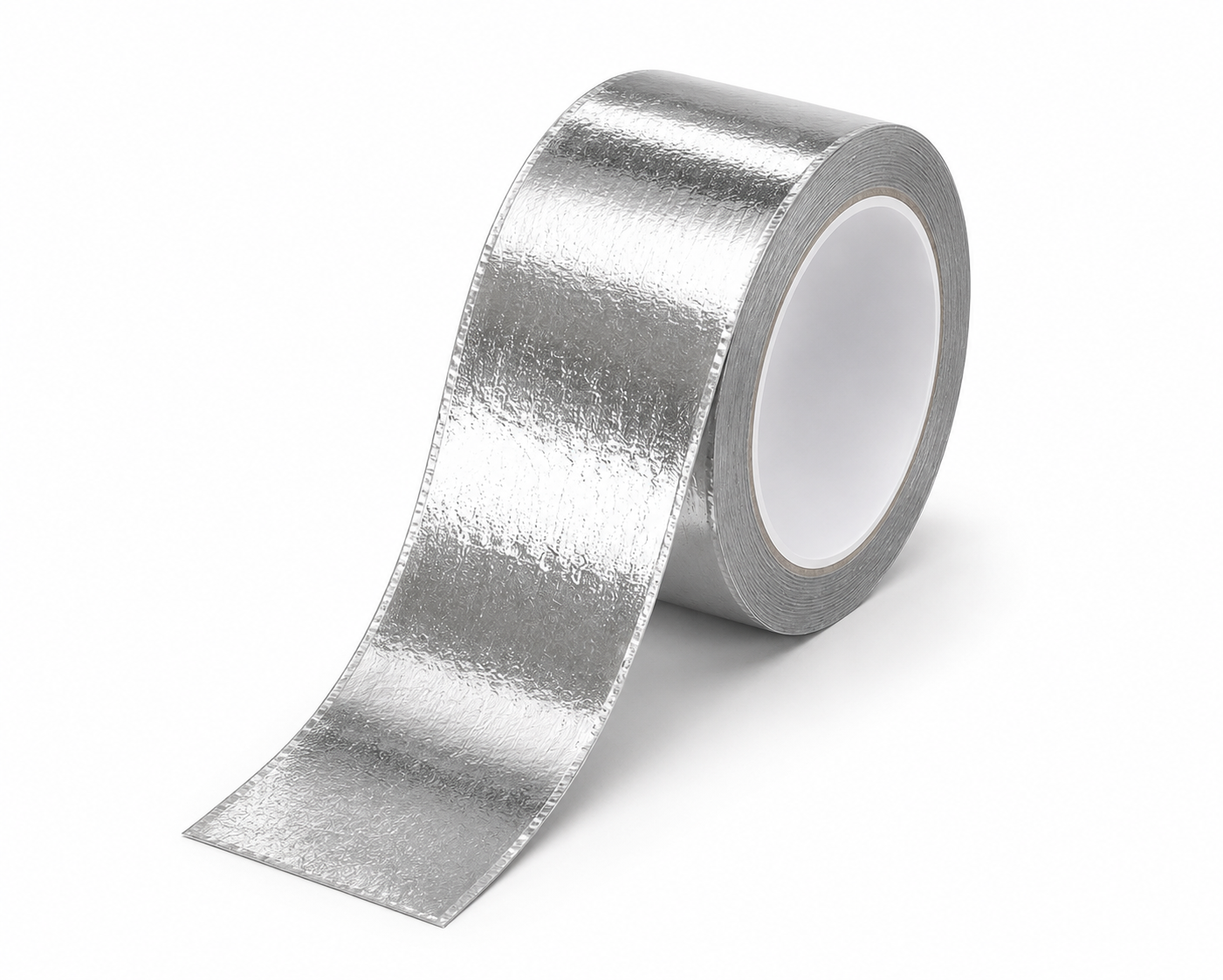

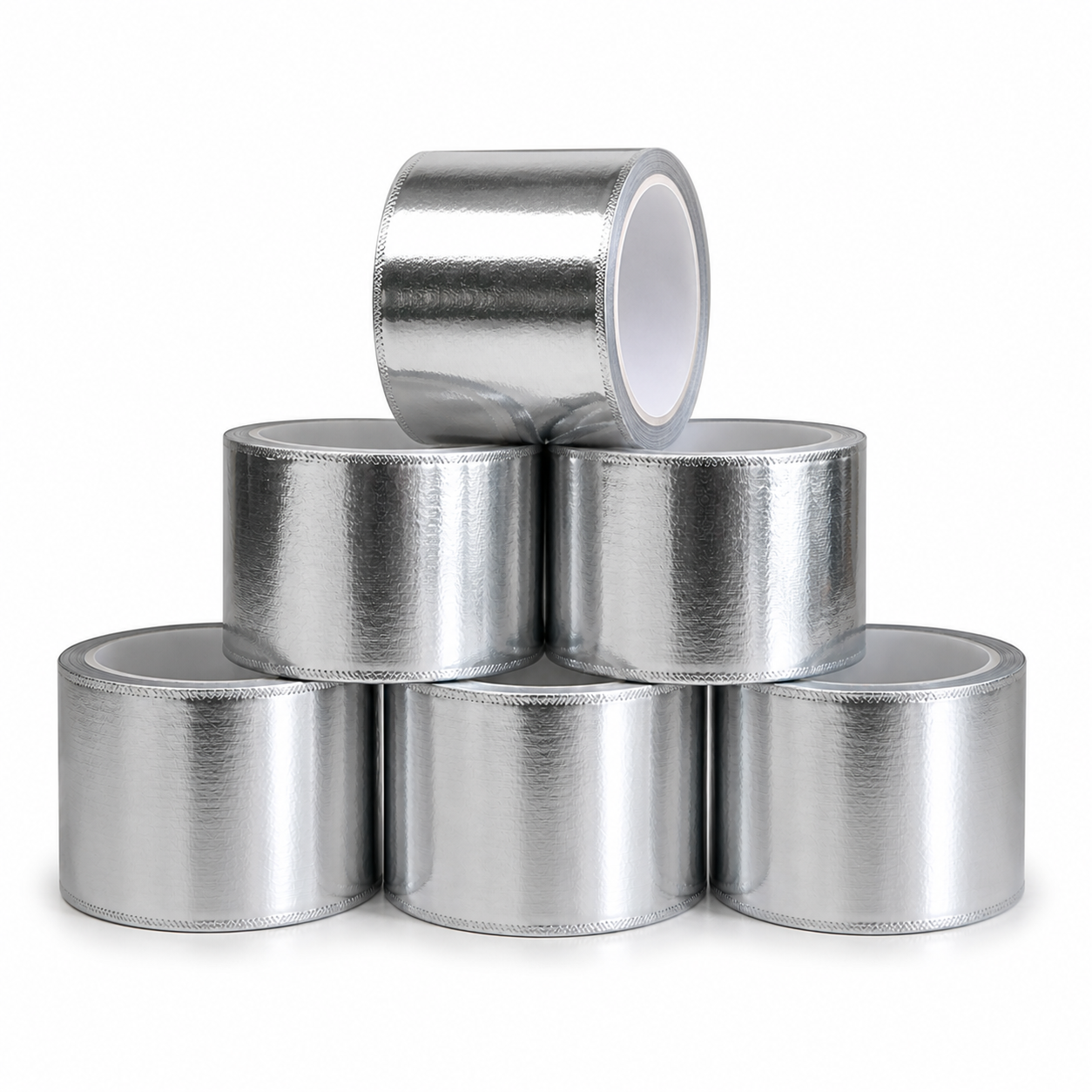

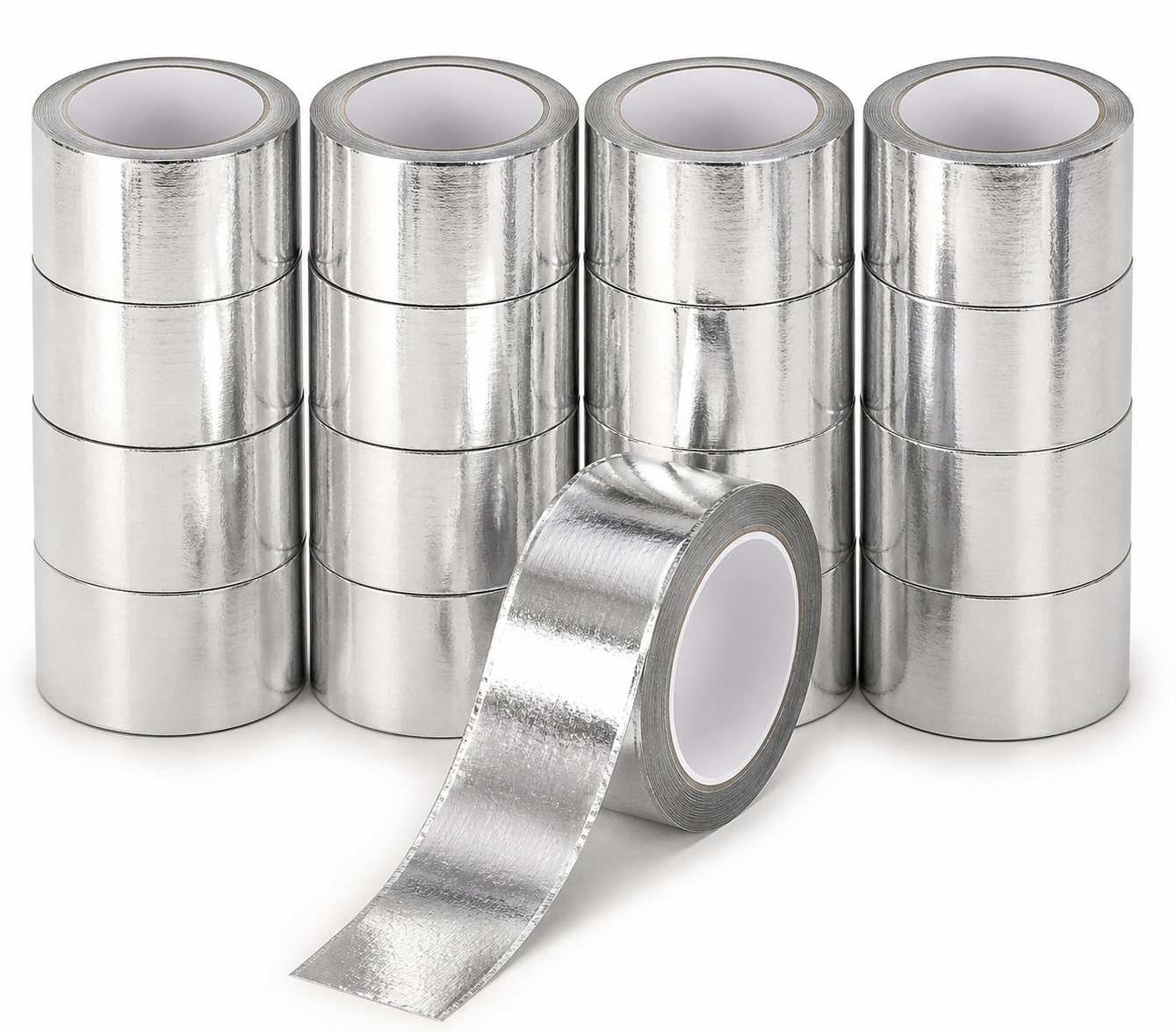

Aluminum Foil/Glass Cloth Tape | 36 Yards

SKU WOD GCAFT87-00500-96-36-SIL
$1,44150
$15.01/per roll
Sold by the case
Size: 1/2 inch
Shipping calculated at checkout.
Online price reflects item cost only. Shipping or delivery charges may apply at checkout. Availability and pricing are subject to change.
Technical Data Sheet SDS Product Literature

🔹Product Description

Aluminum Foil/Glass Cloth Tape | 36 Yards (GCAFT)

This tape combines glass cloth with a laminated aluminum foil backing. It provides high strength and reflectivity with excellent flexibility. The fiberglass cloth side is coated with a transparent, high-temperature-resistant silicone adhesive. This product will withstand moderate grit blasting, is non-corrosive, and flame-retardant (will not burn under open flame / extreme temperature exposure). It can be used as masking tape in plasma spray applications, for seaming and repairing heat and flame barrier curtains, securing thermal insulation on heating and ventilation ducts, and protecting and shielding various missile and aircraft components such as control cables, harnesses, and fuel lines. It prevents the build-up of liquid metal on surfaces that must be protected.

🔹Suitable substitute for:

TLC 955 | 3M 363, 3M 3633 | Permacel P-100 | Scapa 290 | Dewal 407 | St. Gobain/Furon 2925-7 | Bondtec P727, and more.

🔹Applications:

  • Protect fuel lines, wiring harnesses, and components.
  • Primarily used in aerospace and critical applications. Extremely high-temperature tape.
  • Heat-reflective wrap over insulation cables, instruments, or other high-temperature-sensitive materials
  • Bundle wire harnesses and help protect sensitive cables and flexible tubes from heat, flame sources, and wear
  • For use as a protective wrap for heat-sensitive cables and other instruments exposed to movement and vibration in the automotive industry
  • Used to protect the air inlet sensor wires
  • Used to cover some built-in holes in a grill lid

🔹Technical Properties:

  • Adhesive: Silicone
  • Carrier/Backing: Aluminum foil, fiberglass cloth
  • Thickness: 8.7 mils (carrier, adhesive)
  • Adhesion: 43 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 72 pounds per inch (longitudinal)
  • Elongation: 11%
  • Specification Met: T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237, FAR 25.853, meets EU NO.1907/2006 REACH requirement.
  • Service/Operating Temperature: -94 F to 500 F
  • Core: 3" Diameter

Note: Specifications are those given by manufacturers and are not tested for accuracy.
