🔹Product Description

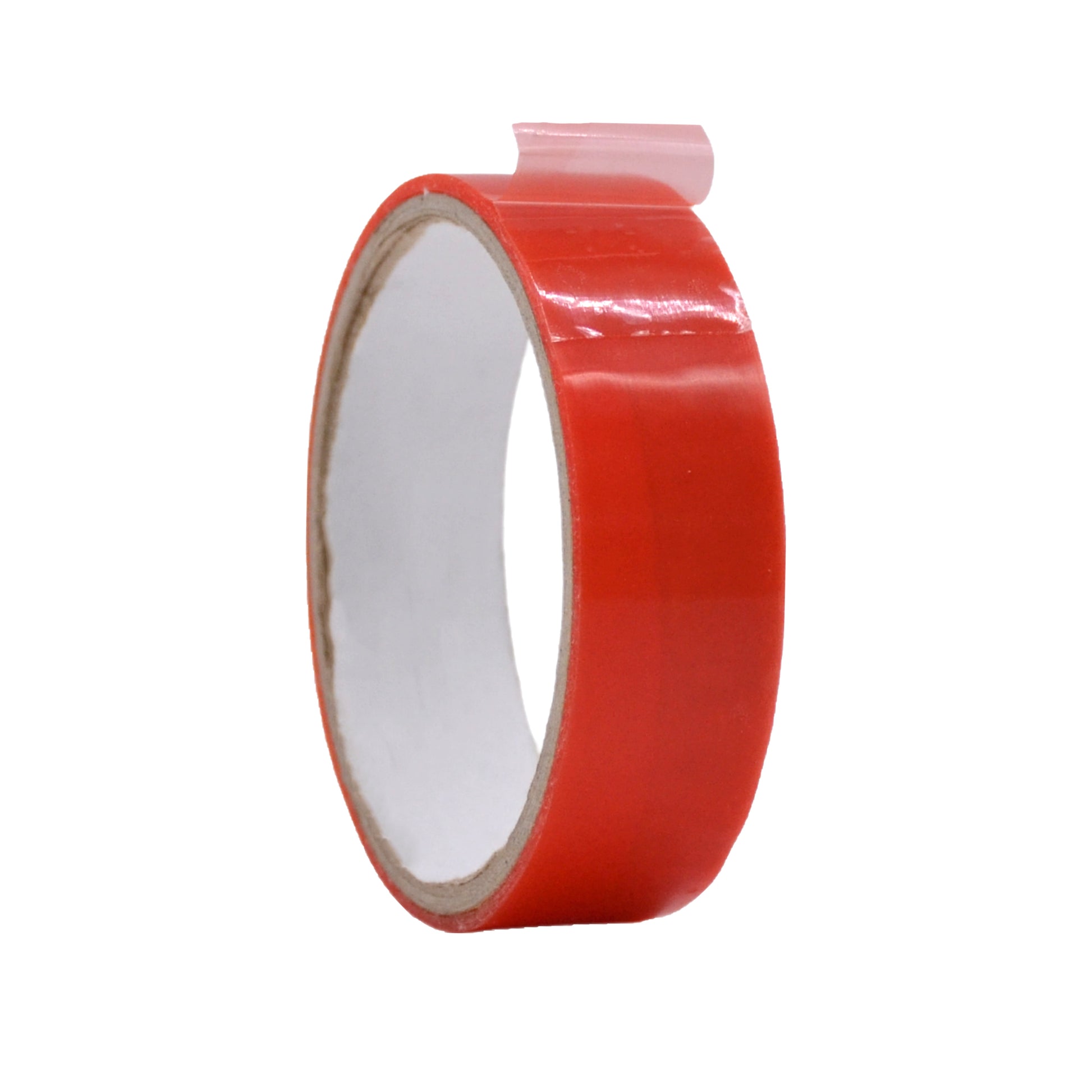

Red Double Sided Polyester Tape | Acrylic Adhesive | 7.5 Mil | Precision Die-Cutting (DCPE75A)
DCPE75A Double Coated Film Tape is a clear polyester film coated with a very aggressive, high-tack, and high-shear solvent-based acrylic adhesive. This product comes with a dimensionally stable Red PP release liner, making it suitable for precision die-cut applications. DCPE75A has excellent temperature, UV, aging, water vapor, and good plasticizer resistance.
🔹Suitable substitute for
Tesa 4965 | Lohman 373 | Adchem 488M-PP-54, and more.
🔹Product Applications
- Mounting ABS plastic parts in the car industry
- Self-adhesive mounting of rubber/EPDM profiles
- Mounting decorative profiles and mouldings in the furniture industry
- Mounting battery packs, lenses and touch-screens in electronic devices
- Mounting and bonding in the appliance industry.
🔹Technical Properties
- Adhesive: Solvent-Based Acrylic
- Carrier/Backing: Polyester (PET) film
- Release Liner: Red PP Liner
- Thickness: 7.5 Mil (carrier, adhesive)
- Adhesion (1 min. dwell): 88 ounces per inch (to stainless steel test panel)
- Tensile Strength: 14 pounds per inch (longitudinal)
- Service/Operating Temperature (Long Term): Up to 320°F
- Service/Operating Temperature (Short Term): Up to 356°F
- Elongation: 100%
- Core: 3" Diameter
Note: Specifications are those given by manufacturers and are not tested for accuracy.
