Product Description

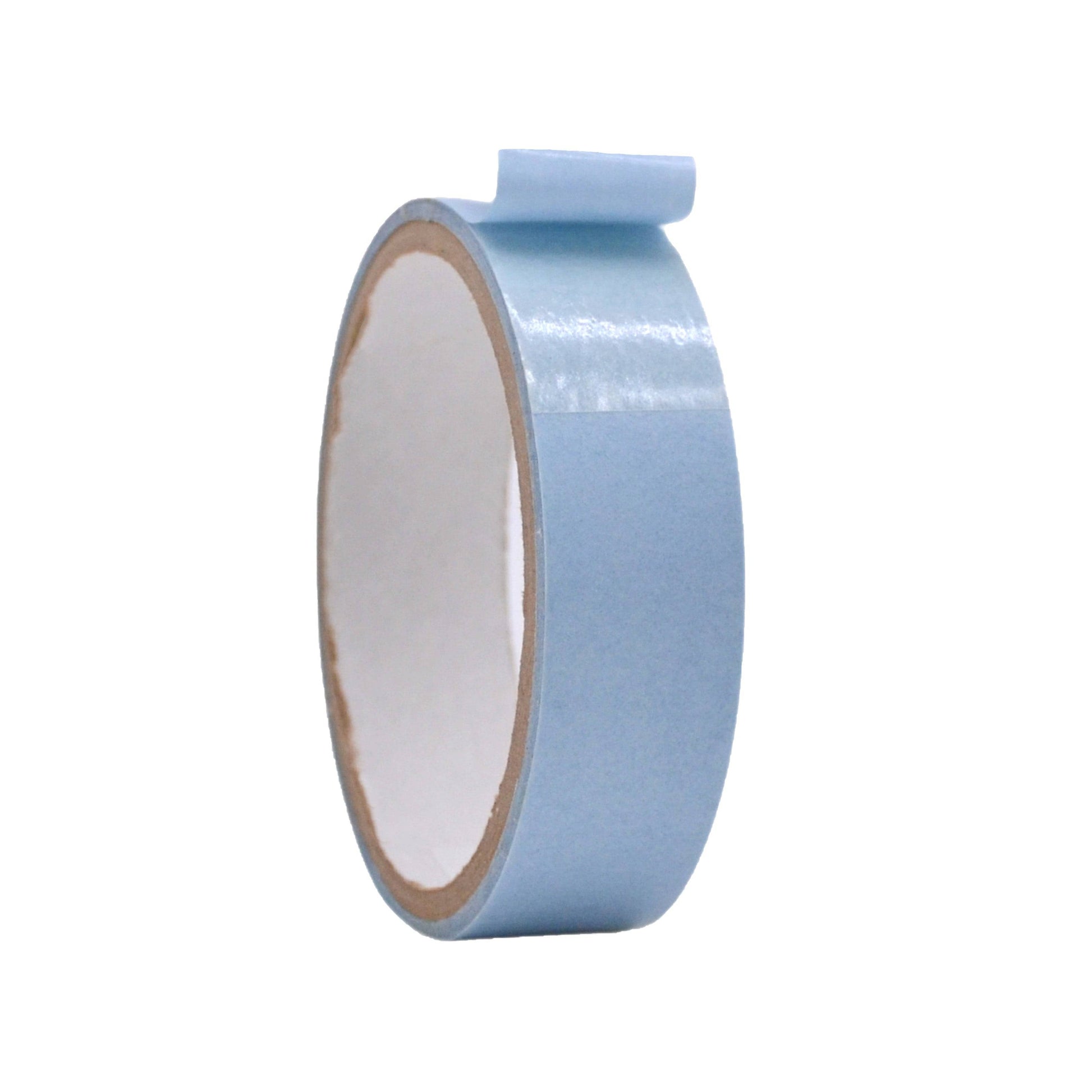

DCPE Series Double Coated Film Tape is a high-performance polyester (PET) film tape designed for strong, reliable bonding across a wide range of substrates.
Coated with a solvent-based water acrylic adhesive, it provides excellent quick stick, high peel strength, and superior shear resistance. It adheres well to metals, glass, wood, paints, plastics, foams, and various paper grades, making it ideal for both splicing and mounting applications.
This tape offers excellent UV, temperature, humidity, and aging resistance, ensuring durability in demanding environments.
Product Applications
-
Printing & Packaging – High-speed flying splices for paper, corrugated stock, films, plastics, and foils
-
Electronics & Displays – Fixing reflection foils to LCD frames
-
Manufacturing & Assembly – Mounting nameplates, keyboard assemblies, and metal or plastic badges
-
Laminating & Bonding – Securing difficult substrates such as foams, dissimilar metals, and coated paper stocks
-
Industrial Use – Splicing thin plastic films and other continuous web materials
Technical Properties
- Adhesive: Solvent-Based Water Acrylic
- Carrier/Backing: Polyester (PET) Film
- Blue Siliconized Paper (For easy manual application & clean removal)
- Thickness: Available in 2.4 mils and 3.5 mils (carrier + adhesive)
- Adhesion: 44-47 oz/in (to stainless steel test panel)
- Service Temperature: -40°F to 248°F (short-term), up to 150°F (long-term)
- Core Size: 3" Diameter
Additional Information
Alternative to: Venture 514CW & 518; 3M 415; Adchem 254M; International Tape 202 & 203; Anchor 593; Berry Plastics Polyken 126.
Note: Specifications are those given by manufacturers and are not tested for accuracy.
