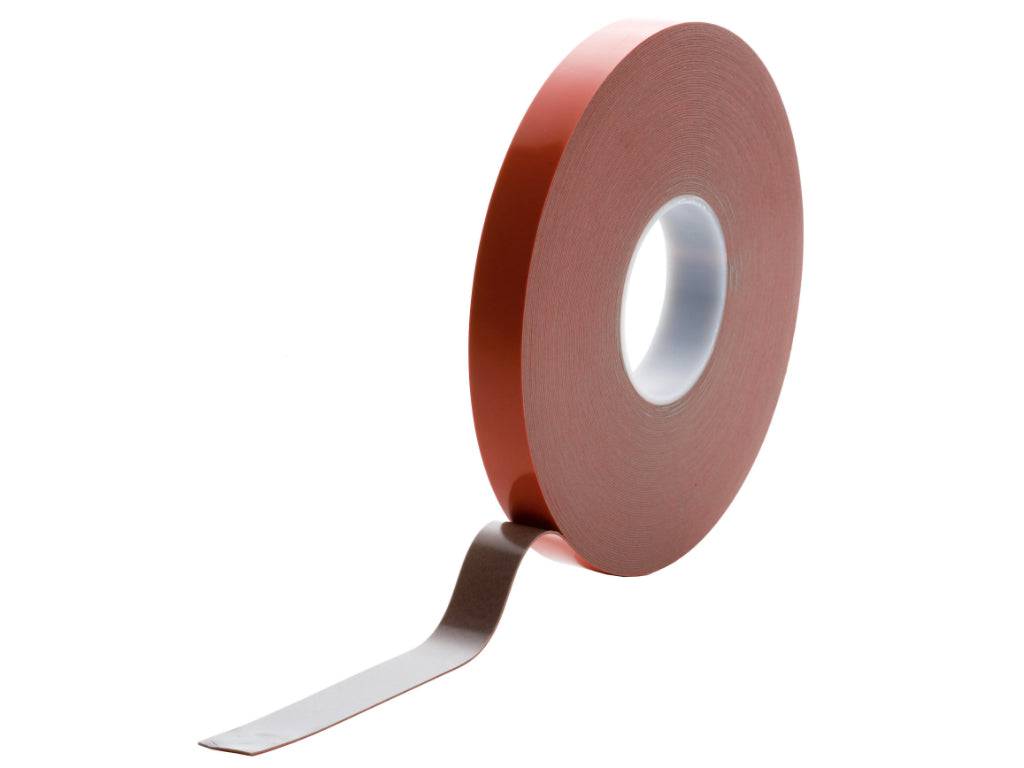

Double-Sided Ultra High Bond Foam Tape 79 Mil, Gray

DCFAUHB80E Ultra High Bond Double Coated Tape offers exceptional bonding properties for demanding structural applications, especially in the transportation industry. With its gray foamed acrylic system, this tape provides outstanding adhesion, high shear strength, and resistance to chemicals, UV, and solvents. It conforms well to various indoor and outdoor surfaces, making it versatile for a wide range of applications.

Key Features:

• Gray foamed acrylic system for exceptional bonding
• Excellent adhesion to a variety of surfaces
• Conformable foam core for versatility
• Chemical, UV, and solvent resistant

Application Tips:

• Avoid contaminating the acrylic adhesive after removing the release liner
• Apply a minimum pressure of 15 pounds per inch of tape width for optimal bond strength
• Allow 1 to 24 hours for dwell time to achieve maximum adhesion

Product Applications:

• Suitable for transportation, appliance, electronics, construction, signage, and general industrial sectors
• Used for structural bonding in body shops, automotive aftermarket, and crash repair
• Ideal for attaching roof ditch moldings, wheel flares, and body side moldings
• Commonly used in illuminated displays, signage, laminated safety glass, and architectural applications
• Great for cost-effective attachment of trim and moldings

Technical Properties:

• Adhesive: Ultra-high bond acrylic
• Carrier/Backing: Foamed acrylic
• Thickness: 78.8 mils
• Adhesion: 139.2 ounces per inch
• Tensile Strength: 71 pounds per inch (longitudinal)
• Service/Operating Temperature: -40 F to 212 F
• Short Term Temperature Resistance: up to 320 F
• Dynamic Shear Strength: After 20 min: 79 pounds per square inch / after 24 hours: 75 pounds per square inch
• Core: 3" Diameter

Additional Information:

• Alternative to: 3M 4991; Hi-Bond 6200G; ORABOND 3602.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
