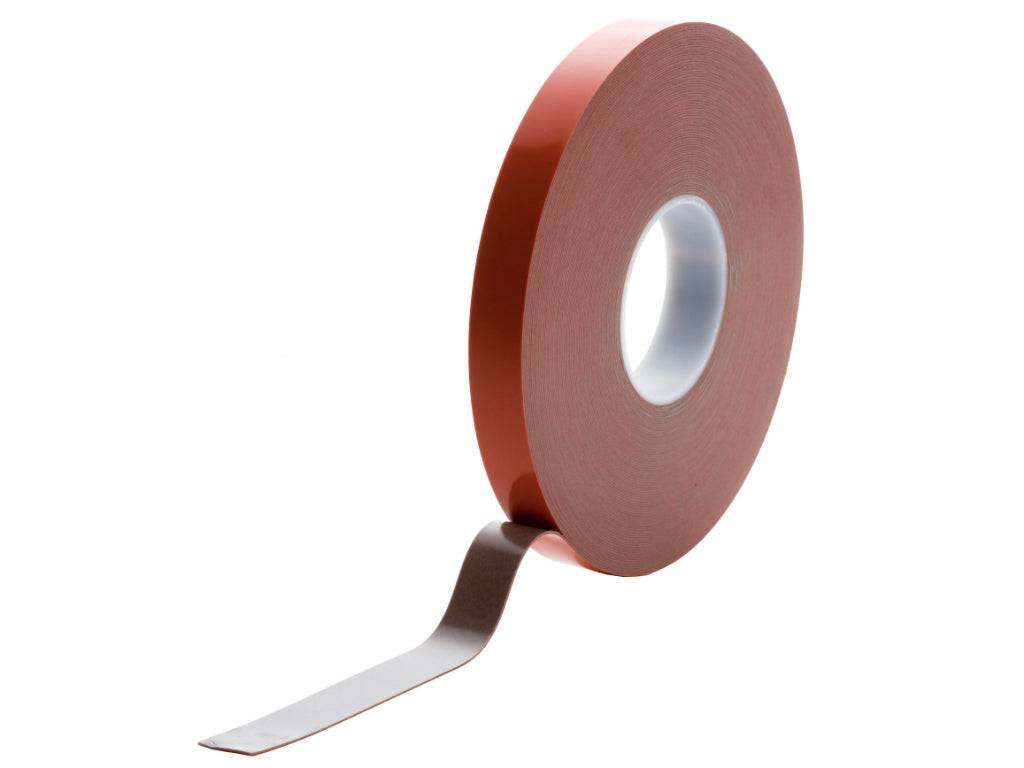

DCFAUHB25E Ultra High Bond Double Coated Tape features a gray foamed acrylic system renowned for its exceptional bonding properties, making it ideal for structural bonding applications such as mounting car side molding and emblems. With excellent adhesion to various surfaces, high shear strength performance, and chemical, UV, and solvent resistance, it offers long-lasting adhesion even in demanding environments. The tape utilizes multi-purpose acrylic adhesive on both sides of a conformable foam core, providing a durable bond that enhances the appearance of finished goods and eliminates the need for mechanical fasteners.
Key Features:
- Gray foamed acrylic system for exceptional bonding
- Excellent adhesion to a variety of surfaces
- Conformable foam core for versatile applications
- Chemical, UV, and solvent resistant
Application Tips:
- Ensure the adhesive is not contaminated after removing the release liner
- Apply pressure of at least 15 pounds per inch of tape width for maximum bond strength
- Allow 1 to 24 hours for dwell time to achieve maximum adhesion
Product Applications:
- Transportation, appliance, electronics, construction, signage, and general industrial
- Bonding of metal furniture, cabinets, lockers, and plastic extrusions
- Sealing polycarbonate lens over LCD and mounting vinyl wiring ducts
- Replacement of rivets, spot welds, liquid adhesives, and other permanent fasteners
- Ideal for applications requiring conformability and thermal expansion differences consideration
Technical Properties:
- Adhesive: Ultra-high bond acrylic
- Carrier/Backing: Foamed acrylic
- Thickness: 25.2 mils
- Adhesion: 120 ounces per inch
- Tensile Strength: 108 pounds per inch (longitudinal)
- Service/Operating Temperature: -40 F to 212 F
- Short Term Temperature Resistance: up to 320 F
- Dynamic Shear Strength: 102 pounds per square inch
- Core: 3" Diameter
Additional Information:
- Alternative to: 3M 4936, 4936F, 4919F, 5925, 4929, 4646, RP25; Hi-Bond 6064G; ORABOND 3594.
